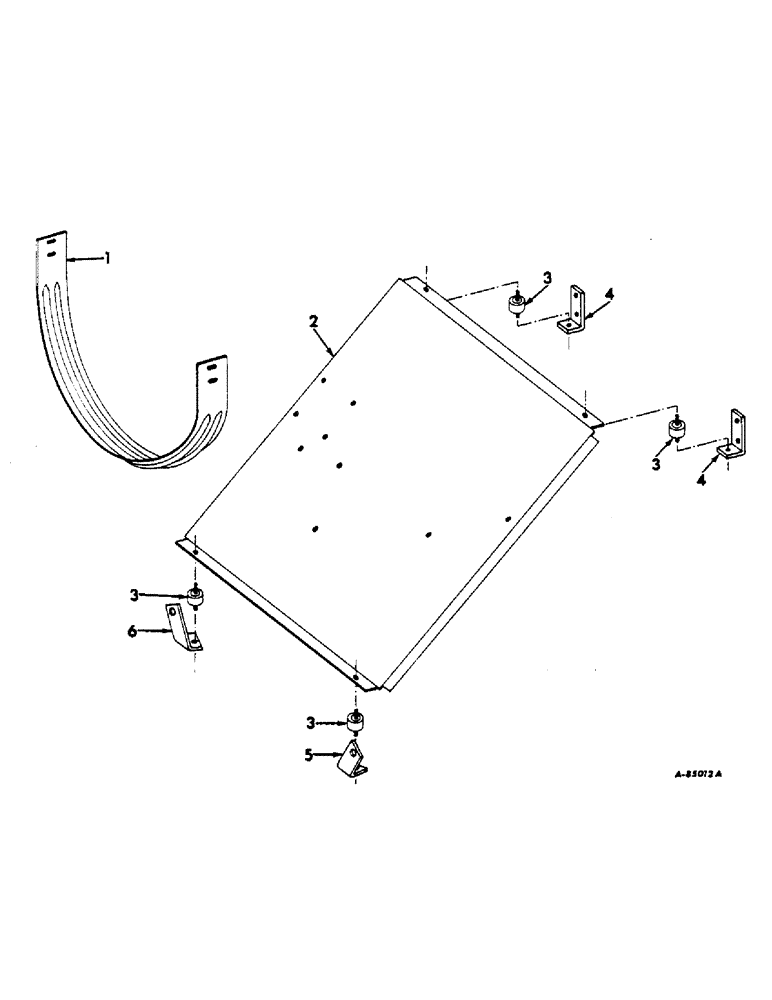

Запчасти Case IH 622 (A-11) - CHASSIS, RADIATOR AND SHEET METAL, ENGINE FAN SHIELDS Chassis, Radiator & Sheet Metal

1

673589R1

engine fan

1шт.

17470R1

BOLT

5/16 x 1-1/2 hex-hd mach

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

2

672928R1

engine fan, belt drive

1шт.

2

674721R1

engine fan, hydrostatic drive

1шт.

3

140722R91

INSULATOR

MOUNTING, flex bolt shock mount, replaces 672932R1

4шт.

120368

NUT,5/16"-24, G5

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

4

672931R2

engine fan shield support, upper

2шт.

17445R1

BOLT,Hex, 5/16" - 18 x 1 1/4"

5/16 x 1-1/4 hex-hd mach

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

619855R1

WASHER

11/32 x 3/4 x 11 ga C-Z

2шт.

5

672929R1

engine fan shield support lower LH

1шт.

6

672930R1

engine fan shield support lower RH

1шт.
