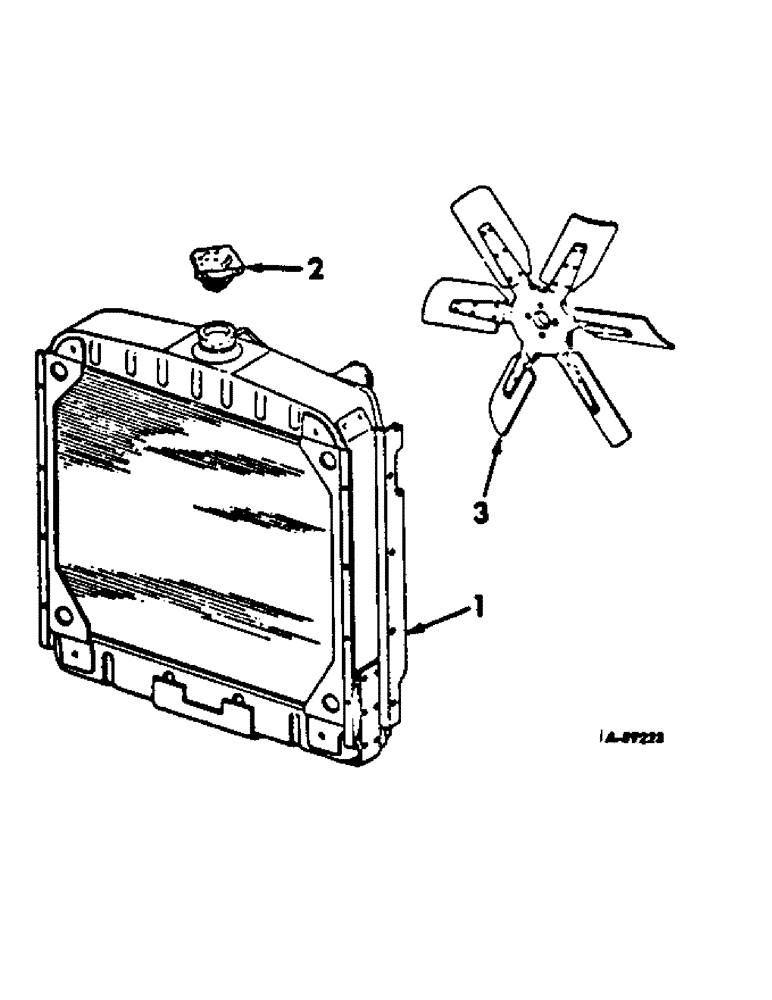

Запчасти Case IH 622 (A-10) - CHASSIS, RADIATOR AND SHEET METAL, RADIATOR ASSEMBLY Chassis, Radiator & Sheet Metal

1

395537R2

less pressure cap, for cotton pickers w/standard transmission

1шт.

444584

PLUG

3/8-18 brs auto. sq-hd pipe

1шт.

18697R1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 2

7/16-14 x 1-3/4 C-Z sq-nk crg

2шт.

231-1447

NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

2шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

2шт.

1

400734R3

RADIATOR

less pressure cap, for cotton pickers w/hydrostatic transmission

1шт.

444578

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF, Brass

1/4-18 brs auto. sq-hd. pipe

1шт.

18697R1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 2

7/16-14 x 1-3/4 C-Z sq-nk crg

2шт.

231-1447

NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

2шт.

607891R1

WASHER

BOLT, 15/32 x 1 x 16 ga C-Z

2шт.

2

393229R91

CAP

ASSY, radiator pressure

1шт.

3

395538R1

ASSY, radiator fan, for cotton pickers w/standard transmission

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

3

403579R1

FAN

BLADE ASSY, radiator fan, for cotton pickers w/hydrostatic transmission

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

64751C91

COOLER

PACKAGE, oil cooler

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16-18 x 5/8 hex-hd cap

4шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .051

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.
