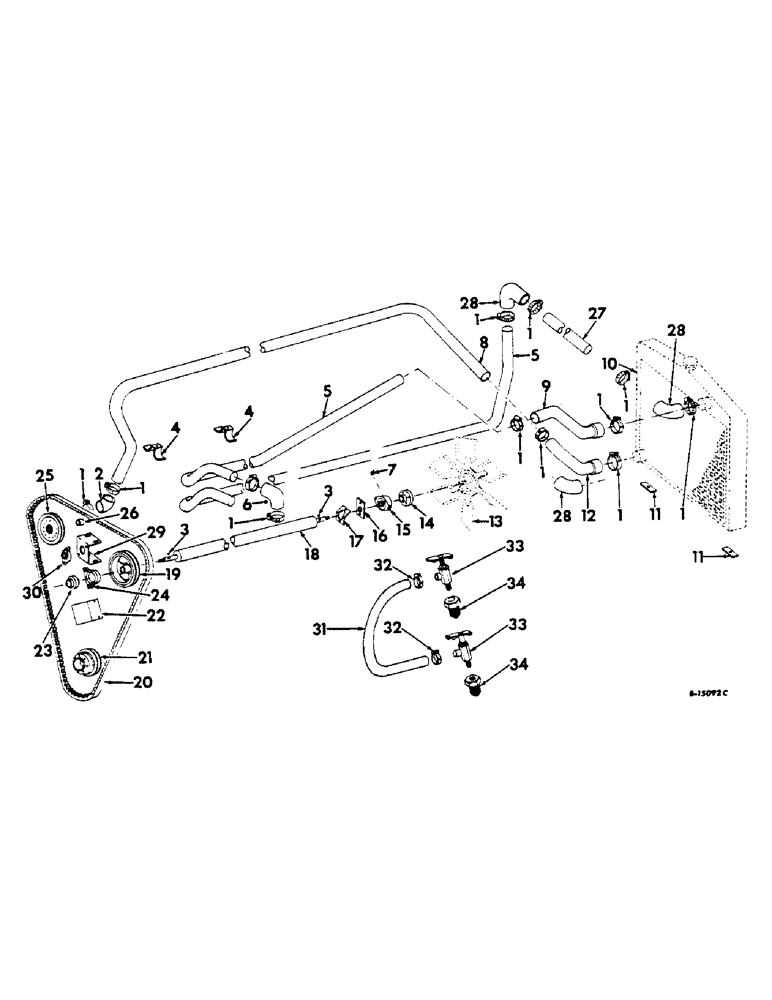

Запчасти Case IH 622 (A-07) - CHASSIS, RADIATOR AND SHEET METAL, RADIATOR CONNECTIONS AND Chassis, Radiator & Sheet Metal

1

279028R91

HOSE CLAMP,#40, 2.06/3.00 Type F Worm

hose, 8 for belt drive, 12 for hydrostatic drive

1шт.

2

388129R1

INTAKE AIR HOSE,2.00" ID, SAE 20R4 Class R Grade 1A

Lower 2.00" ID, SAE 20R4 Class R Grade 1A

1шт.

3

106751

KEY

3/16 x 3/4 Woodruff no. 9

2шт.

4

672918R1

feed water tube

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

5

672915R1

feed water, belt drive

1шт.

5

674702R1

feed water, hydrostatic drive, 616 CH501M thru CH000718, 622 CH501M thru CH001475

1шт.

5

674699R1

feed water, hydrostatic drive, 616 CH000719 and up, 622 CH001476 and up

1шт.

6

672919R1

upper connection thermostat, 616 CH501M thru CH585N, 622 CH501M thru CH1039N

1шт.

6

201065C1

feed water return, 616 CH000586 thru 000718, 622 CH001040 thru 001475

1шт.

6

202434C1

HOSE,2.00" ID x 12.00", SAE 20R4 Class SC

Feed Water Return, 616 CH000719 and up, 622 CH001476 and up, 622 CH001040 and up 2.00" ID x 12.00", SAE 20R4 Class SC

1шт.

7

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

1шт.

8

672917R1

feed water return, belt drive

1шт.

8

674701R1

feed water return, hydrostatic drive

1шт.

9

672913R1

radiator inlet, belt drive

1шт.

10

RADIATOR, see section A radiator assembly

1шт.

11

672927R1

radiator cushion, belt drive

4шт.

12

672920R1

radiator inlet, belt drive

1шт.

13

FAN, engine, see section A radiator assembly

1шт.

14

672926R1

radiator fan, belt drive

1шт.

14

674695R1

HUB

radiator fan, hydrostatic drive

1шт.

102649

SLOTTED NUT,5/8"-18, G5

NUT, 5/8"-18, G5

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

578274R1

WASHER

21/32 x 1 x 11 ga.

1шт.

15

673322R91

FLANGE

bearing W/housing

1шт.

16

673587R1

shaft seal

1шт.

17

672925R1

fan shaft seal

1шт.

17411R1

BOLT,Hex, 5/16"-18 X 3/4", G2

5/16 x 3/4 hex-hd mach

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

18

672924R1

SHAFT, fan drive rear, 616 CH501M thru CH585N, 622 CH501M thru CH1039N

1шт.

18

201101C1

fan drive rear, 616 CH000586 and up, 622 CH001040 and up

1шт.

19

672923R1

PULLEY

fan

1шт.

425-1310

SLOTTED NUT,5/8"-18, G5

5/8-18 stl hex. znd

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

585556R1

WASHER,16.67mm ID x 38.1mm OD x 4.76mm Thk

21/32 x 1-1/2 x 7 ga.

1шт.

20

672922R1

V-BELT,0.660" W

Radiator Fan Drive, Belt Drive 0.660" W

1шт.

20

201092C1

BELT

V-BELT - Radiator fan drive, Hydrostatic drive

1шт.

21

673192R1

radiator fan, belt drive

1шт.

179825

BOLT,Hex, 5/16" - 18 x 1 7/8", Gr 5

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

21

674697R2

radiator fan, hydrostatic drive

1шт.

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

22

673479R1

fan shaft brg support, 616 CH501M thru CH585N, 622 CH501M thru CH1039N

1шт.

17473R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 2

1/2 x 1-1/2 hex-hd mach

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

16038R1

WASHER

17/32 x 1 x 11 ga

2шт.

23

619738R91

BALL BEARING,1.2505" ID x 62 mm OD x 1.4375"

ASSY, radiator fan shaft, 616 CH501M thru CH585N, 622 CH501M thru CH1039N

1шт.

24

618028R91

retainer brg block, 616 CH501M thru CH585N, 622 CH501M thru CH1039N

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

25

574097R91

PULLEY

ASSY, idler

1шт.

26

M42160D

SPACER, idler pulley

1шт.

15128R1

BOLT,Sq Nk, 5/8" - 11 x 2 3/4"

5/8 x 2-3/4 sq-nk crg

1шт.

102639

NUT,5/8"-11, G5

1шт.

21471R1

WASHER

21/32 x 1 x 11 ga C-Z

1шт.

27

674700R1

feed inlet, hydrostatic drive 2" OD, 21.6" Length

1шт.

28

276161R1

HOSE

ELBOW, radiator connections, hydrostatic drive

3шт.

29

201102C1

SUPPORT, fan shaft brg, 616 CH000586 and up, 622 CH001040 and up

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 znd hex-hd mach

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

20893R1

WASHER

11/32 x 1 x 11 ga C-Z

4шт.

30

201103C91

BEARING

ASSY, radiator fan shaft, 616 CH000586 and up, 622 CH001040 and up

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

31

SAFETY HOSE, use 14 inches of 5/8 inch hose from a 50 ft. roll marked 995108R2, diesel

1шт.

32

240369R91

HOSE

2шт.

33

301803R91

VALVE

ASSY, cutoff

2шт.

34

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

1/2 x 3/8 reducing pipe

2шт.
