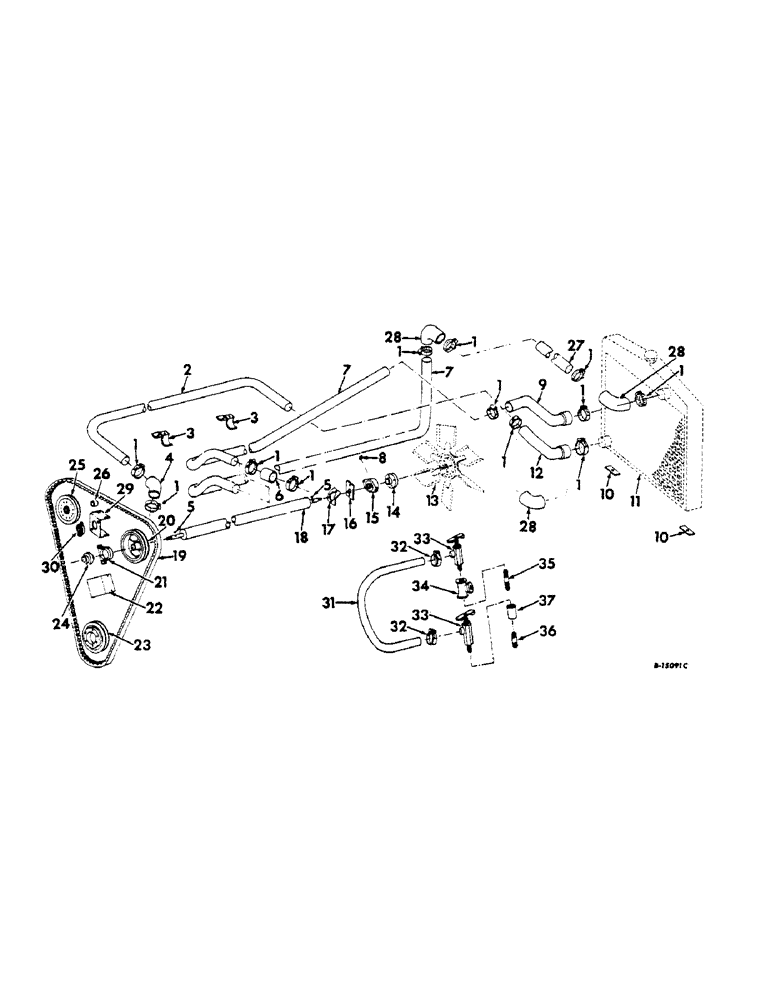

Запчасти Case IH 622 (A-05) - CHASSIS, RADIATOR AND SHEET METAL, RADIATOR CONNECTIONS AND Chassis, Radiator & Sheet Metal

1

279028R91

HOSE CLAMP,#40, 2.06/3.00 Type F Worm

radiator inlet hose, 8 for belt drive, 12 for hydrostatic drive

1шт.

2

672916R1

feed water return, belt drive

1шт.

2

674698R1

feed water return, hydrostatic drive

1шт.

3

672918R1

feed water tube

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

4

255321C1

HOSE, elbow block outlet lower, 616 000655 and below, 622 001314 and below

1шт.

4

388129R1

INTAKE AIR HOSE,2.00" ID, SAE 20R4 Class R Grade 1A

Lower Elbow, 616 000656 and up, 622 001315 and up 2.00" ID, SAE 20R4 Class R Grade 1A

1шт.

5

106751

KEY

3/16 x 3/4 Woodruff, no. 9

2шт.

6

291445R1

HOSE, elbow block inlet upper

1шт.

7

672914R1

TUBE, feed water, belt drive

1шт.

7

674699R1

TUBE, feed water, hydrostatic drive

1шт.

8

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

1шт.

9

672913R1

HOSE, radiator inlet, belt drive

1шт.

10

672927R1

STRIP, radiator cushion, belt drive

4шт.

11

RADIATOR, see section A radiator assembly

1шт.

12

672920R1

HOSE, radiator inlet, belt drive

1шт.

13

FAN, engine, see section A radiator assembly

1шт.

14

672926R1

HUB, radiator fan, belt drive

1шт.

14

674695R1

HUB

radiator fan, hydrostatic drive

1шт.

102649

SLOTTED NUT,5/8"-18, G5

NUT, 5/8"-18, G5

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

578274R1

WASHER

21/32 x 1 x 11 ga

1шт.

15

673322R91

FLANGE

BEARING, w/housing, flange cartridge

1шт.

17471R1

BOLT,Hex, 3/8" - 16 x 1 1/2"

3/8 x 1-1/2 hex-hd mach

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

16

673587R1

WASHER, shaft seal

1шт.

17

672925R1

RETAINER, fan shaft seal

1шт.

17411R1

BOLT,Hex, 5/16"-18 X 3/4", G2

5/16 x 3/4 hex-hd mach

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

18

672924R1

SHAFT, fan drive rear, 616 CH501M thru CH585N, 622 CH501M thru CH1039N

1шт.

18

201101C1

SHAFT, fan drive rear, 616 CH000586 and up, 622 CH001040 and up

1шт.

19

672922R1

V-BELT,0.660" W

Radiator Fan Drive, Belt Drive 0.660" W

1шт.

19

201092C1

BELT

V-BELT - Radiator fan drive, Hydrostatic drive

1шт.

20

672923R1

PULLEY

fan

1шт.

425-1310

SLOTTED NUT,5/8"-18, G5

NUT, 5/8-18 stl hex. znd

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 12 ga.

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

21

618028R91

RETAINER, brg block, 616 CH501M thru CH585N, 622 CH501M thru CH1039N

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

22

673479R1

CHANNEL, fan shaft brg support, 616 CH501M thru CH585N, 622 CH501M thru CH1039N

1шт.

17473R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 2

1/2 x 1-1/2 hex-hd mach

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

16038R1

WASHER

17/32 x 1 x 11 ga

2шт.

23

673191R1

PULLEY, radiator fan, belt drive

1шт.

23

674696R1

PULLEY, radiator fan, hydrostatic drive

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

24

619738R91

BALL BEARING,1.2505" ID x 62 mm OD x 1.4375"

ASSY, radiator fan shaft, 616 CH501M thru CH585N, 622 CH501M thru CH1039N

1шт.

25

574097R91

PULLEY

ASSY, idler

1шт.

26

M42160D

SPACER, idler pulley

1шт.

15128R1

BOLT,Sq Nk, 5/8" - 11 x 2 3/4"

5/8 x 2-3/4 sq-nk crg

1шт.

102639

NUT,5/8"-11, G5

1шт.

21471R1

WASHER

21/32 x 1 x 11 ga C-Z

1шт.

27

674700R1

TUBE, feed inlet, hydrostatic drive 2" OD, 21.6" Length

1шт.

28

276161R1

HOSE

ELBOW, radiator connections, hydrostatic drive

3шт.

29

201102C1

SUPPORT, fan shaft brg, 616 CH000586 and up, 622 CH001040 and up

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

20893R1

WASHER

11/32 x 1 x 11 ga C-Z

4шт.

30

201103C91

BEARING

ASSY, radiator fan shaft, 616 CH000586 and up, 622 CH001040 and up

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

31

SAFETY HOSE, use 28 inches of 5/8 inch hose from a 50 ft. roll marked 995108R2, gas

1шт.

32

240369R91

HOSE, clamp

2шт.

33

301803R91

VALVE

ASSY, cutoff

2шт.

34

120280

TEE,3/8" NPT, Fem

3/8 pipe

1шт.

35

509962

HYD CONNECTOR

NIPPLE, 3/8 x 2 pipe

1шт.

36

121207

PIPE,Nipple, 3/8" NPT x 1"

NIPPLE, 3/8 x 1 pipe

1шт.

37

120755

COUPLING,3/8" NPT

3/8 pipe

1шт.
