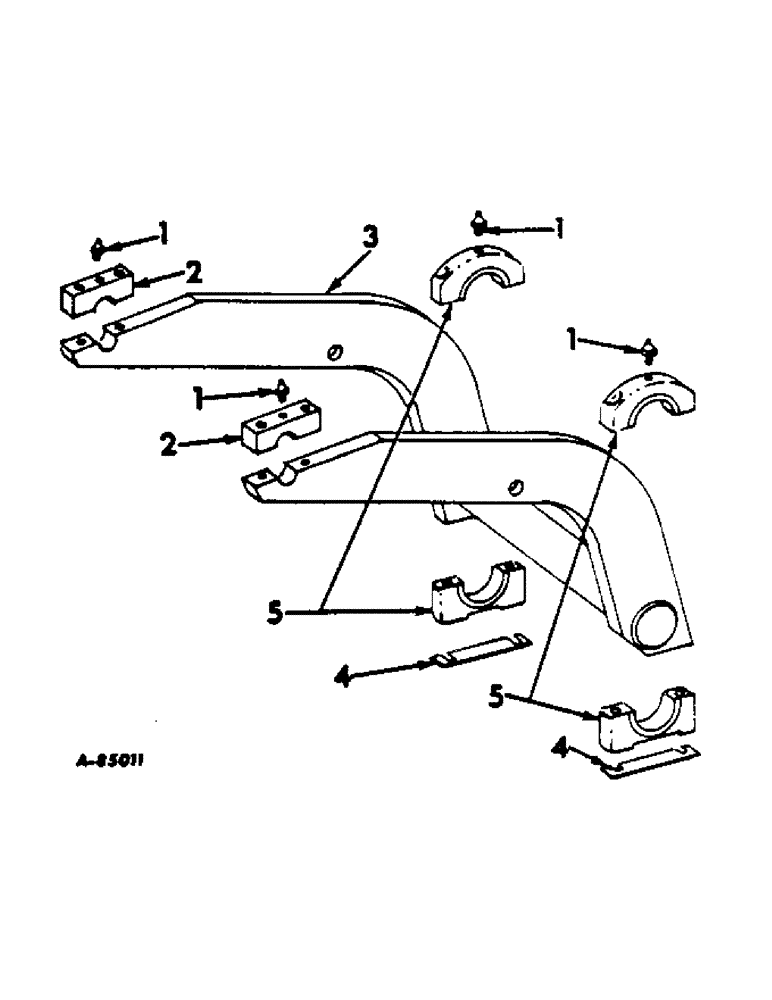

Запчасти Case IH 622 (A-04) - CHASSIS, RADIATOR AND SHEET METAL, LIFTING ARMS Chassis, Radiator & Sheet Metal

1

87414

LUBE NIPPLE,1/4" - 28

fitting 1/4-28 self tapping lub

8шт.

2

673808R1

lifting arm

4шт.

179887

CABLE

8шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

3

672662R91

arms ASSY, drum lifting syaft LH, 616 501M thru 519M, 622 501M thru 604M

1шт.

3

672663R91

ASSY, drum lifting shaft RH, 616 501M thru 519M, 622 501M thru 604M

1шт.

3

674782R91

arms ASSY, drum lifting shaft LH, 616 520N up, 622 605N up

1шт.

3

674783R91

arms ASSY, drum lifting shaft RH, 616 520N up, 622 605N up

1шт.

4

672670R1

bearing cap (or as required)

4шт.

5

672668R1

lifting arm brg

4шт.

311555R1

SCREW

5/8-11 x 5-1/2 hex-hd cap type 4

4шт.

24710R1

SCREW, 5/8-11 x 5-3/4 hex-hd cap type 4

4шт.

9412231

NUT

5/8-11 hex. lock

8шт.
