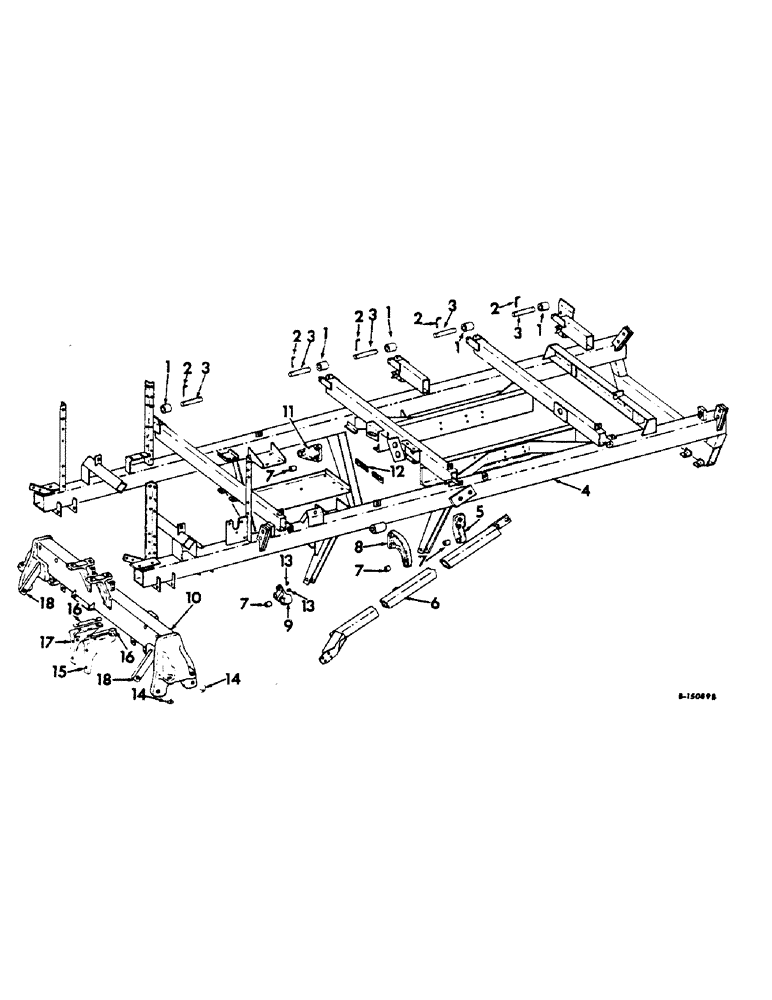

Запчасти Case IH 622 (A-02) - CHASSIS, RADIATOR AND SHEET METAL, MAIN FRAME AND SUPPORTS Chassis, Radiator & Sheet Metal

1

672744R1

ROLLER

basket pivot

5шт.

2

11453P

PIN

basket pivot roller lock

5шт.

432-1216

COTTER PIN,3/16" x 1"

4шт.

3

672745R1

SHAFT

basket lift roller

4шт.

4

674605R3

ASSY, main, hydrostatic drive, 616 CH000586 and up, 622 CH001040 and up, if 675605R1 is required order 674605R3, 201101C1, 201102C1, and 201103C1

1шт.

4

672550R92

ASSY, main, belt drive, 616 CH000586 and up, 622 CH001040 and up, if 672550R91 is required order 672550R92, 201101C1, 201102C1, and 201103C1

1шт.

5

672867R1

engine rear LH, gas and LP gas

1шт.

5

672868R1

engine rear RH, gas and LP gas

1шт.

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

5/8-11 x 3-1/4 hex-hd cap, Course Threads

2шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

5/8-11 x 3 hex-hd cap, Course Threads

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

6

672602R91

ASSY, main frame LH

1шт.

6

673830R91

ASSY, main frame RH

1шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

5/8-11 x 1-1/4 hex-hd cap

4шт.

14-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 5

screw 5/8-11 x 1-1/2 hex-hd cap, Fine Thread

2шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 x 2 hex-hd cap

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

7

672870R1

BUSHING

engine support rubber

4шт.

8

672871R1

SUPPORT

rear engine LH, diesel

1шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

5/8-11 x 3 hex-hd cap, Course Threads

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

9

672869R1

engine support front

2шт.

10

674685R1

ASSY, main, hydrostatic drive

1шт.

10

673062R91

ASSY, main, belt drive

1шт.

413-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

screw 3/4-10 x 5-1/2 hex-hd cap

4шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex

4шт.

131142

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

11

672872R1

SUPPORT

rear engine RH, diesel

1шт.

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

5/8-11 x 3-1/4 hex-hd cap, Course Threads

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

12

200462C1

engine ground, replaces 201304R91

1шт.

13

N62744

engine support front bracket

4шт.

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

1/2-13 x 2-1/2 hex-hd mach

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

4шт.

14

674262R91

wheel toe and camber adjusting shims

1шт.

15

673056R1

transmission LH

1шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

179889

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2 x 2 hex-hd cap

2шт.

16

673357R92

transmission bracket shim

1шт.

17

673057R1

transmission RH

1шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

179889

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2 x 2 hex-hd cap

2шт.

18

201091C1

drum lifting cylinder

2шт.

272556

GEAR

screw 3/4-10 x 5-3/4 hex-hd cap

4шт.

220081

NUT

3/4-10 hex.

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.
