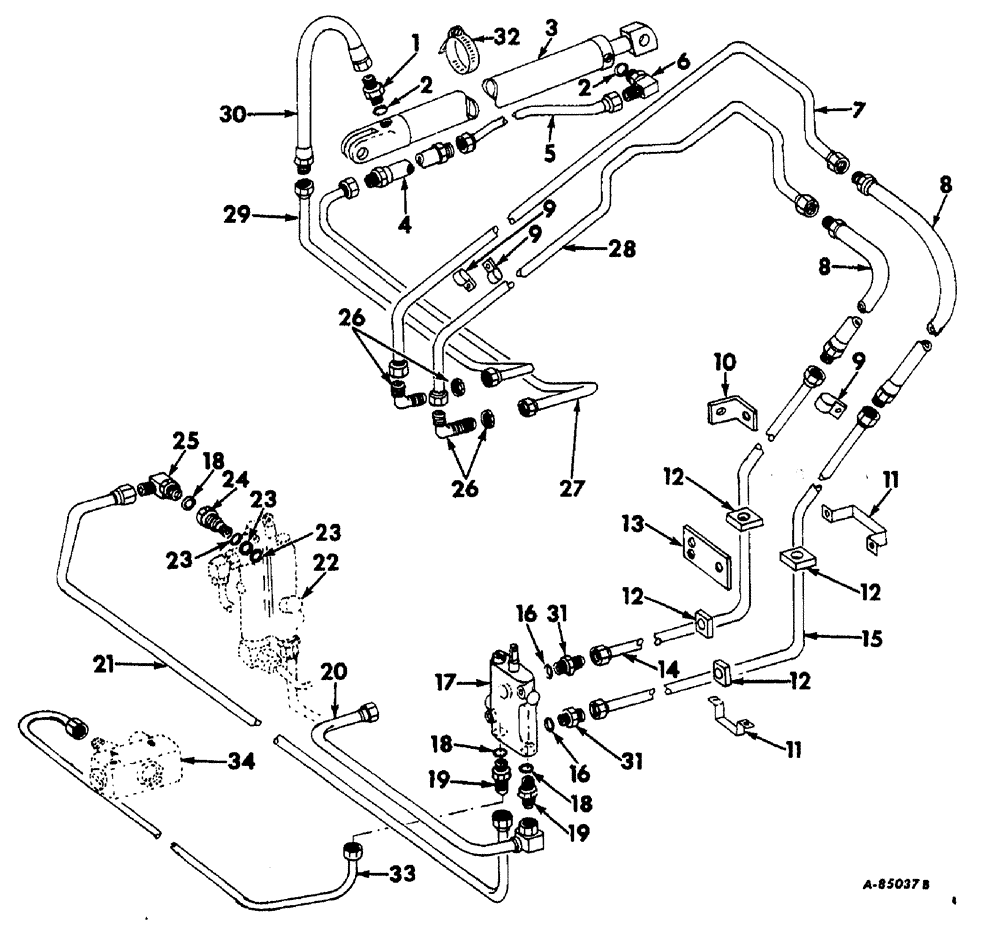

Запчасти Case IH 622 (Q-14) - BASKET AND AIR SYSTEM, BASKET DISTIRBUTOR HYDRAULIC LINES Basket & Air System

1

935433R1

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

W/O-RING, 7/8-14 to 9/16-18 37 deg tube

1шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

.755 x .949 x .097

2шт.

3

669423R92

ASSY, hyd, for components see list of parts under details of basket distributor hydraulic cylinder this section

1шт.

23289R1

PIN, 1 x 2-3/4 C-Z std-hd 1" x 2 3/4"

1шт.

23290R1

HEADED PIN,1" x 3 1/2"

1 x 3-1/2 C-Z std-hd

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

1/4" x 1 1/2"

2шт.

4

673820R1

ASSY, cyl return

1шт.

5

673582R11

TUBE,0.375" OD, 17, 1.2" Length

ASSY, distributor cyl

1шт.

6

671796R1

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

W/O-RING, locknut and washer, 7/8-14 x 9/11-18 90 deg, replaces 673422R1

1шт.

7

673579R21

ASSY, distributor basket raise

1шт.

8

673578R1

HOSE

ASSY, distributor connector

2шт.

9

140580

NO LONGER SERVICED

CLIP, no. 6 3/8 x 19/32 closed

12шт.

17411R1

BOLT,Hex, 5/16"-18 X 3/4", G2

5/16 x 3/4 hex-hd mach

12шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

10

673819R1

distributor tube mounting

1шт.

11

673385R1

CLAMP

hyd line holder

2шт.

17410R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 hex-hd mach

4шт.

109084

NUT,1/4"-20, G5

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

12

673386R1

3/8 to 1/2 hyd line

4шт.

13

673577R1

hyd clamp mount

1шт.

17410R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 hex-hd mach

2шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

14

673575R11

ASSY, basket distributor lower

1шт.

15

673576R11

ASSY, basket distributor raise

1шт.

16

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

17

673806R92

ASSY, distributor control, for components see list of parts under details of basket distributor hydraulic control valve, this section

1шт.

18659R1

BOLT,Hex, 1/4" - 20 x 2", Gr 2

1/4 x 2 znd hex-hd mach

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

18

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

.644 x .818 x .087, 3 for belt drive 2 for hydrostatic drive

1шт.

19

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 3/4-16 37 deg flared tube short swivel

2шт.

20

673574R11

ASSY, distributor return

1шт.

21

673573R11

ASSY, distributor supply, belt drive

1шт.

21

674673R11

ASSY, distributor supply, hydrostatic drive

1шт.

22

VALVE ASSY, proplustion control, belt drive, for components see list of parts under details of proplusion cylinder control valve, section F

1шт.

23

674229R91

o-ring repair, belt drive

1шт.

24

673907R91

ASSY, pressure beyond in propulsion valve, belt drive

1шт.

25

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 37 deg hyd flared tube adj str thd 90 deg, belt drive

1шт.

26

673821R1

ELBOW UNION

bulkhead tube

2шт.

27

673789R11

TUBE

ASSY, cyl return line

1шт.

28

673580R21

TUBE

ASSY, distributor basket lower

1шт.

29

673790R11

ASSY, cyl feed line

1шт.

30

673581R1

HOSE

ASSY, distributor cyl

1шт.

31

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 9/16-18 37 deg flared tube short swivel

2шт.

32

279026R91

HOSE CLAMP,#36, 1.81/2.75 Type F Worm

tube

1шт.

33

674673R11

ASSY, compactor supply

1шт.

34

DIVIDER, flow, for components see list of parts under details of flow divider, section F

1шт.
