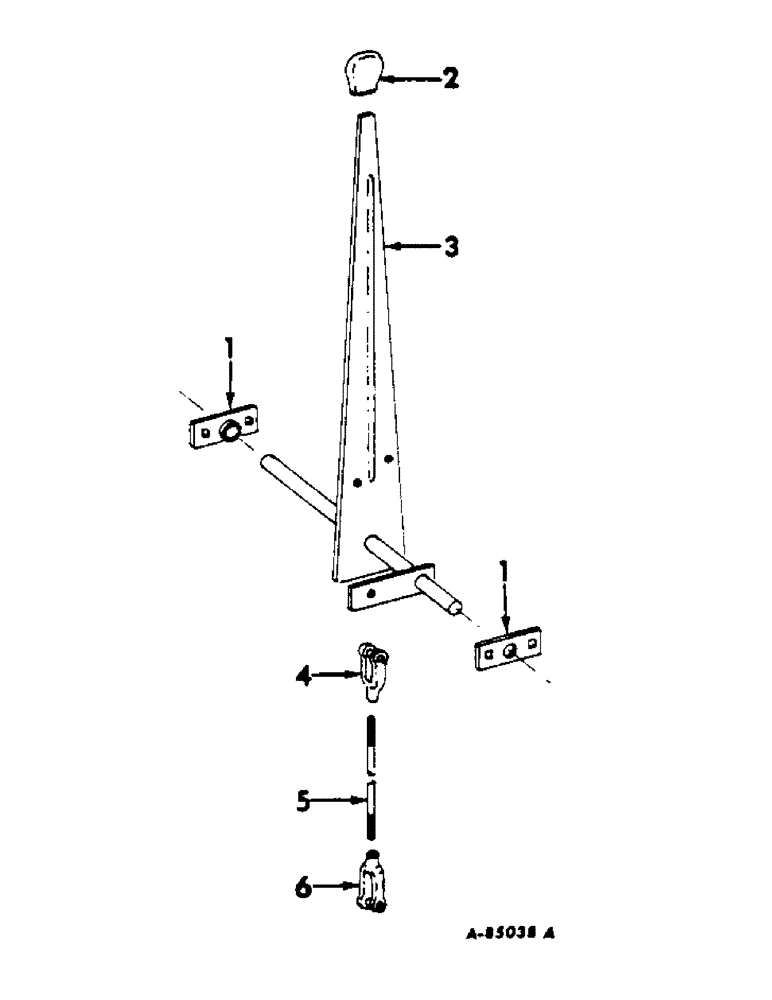

Запчасти Case IH 622 (Q-13) - BASKET AND AIR SYSTEM, BASKET DISTRIBUTOR CONTROL LEVER Basket & Air System

1

674725R1

PLATE ASSY, control support, replaces 673096R1

2шт.

14989R1

BOLT, 1/4 x 5/8 sq-nk crg

4шт.

109084

NUT,1/4"-20, G5

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

2

382805R1

KNOB

control

1шт.

3

673564R1

ARM ASSY, distributor lever

1шт.

4

213-315

CLEVIS

5/16-24 short adj rod end

1шт.

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

Rod end 5/16" x .940", HDN

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

5

673900R1

ROD, distributor control

1шт.

6

673477R1

CLEVIS, control rod

1шт.

425-115

NUT,5/16"-24, G5

5/16-24 hex.

1шт.

20286R1

SPLIT PIN/SAFETY PIN

PIN, 3/16 x 1-1/32 rod end

1шт.

103361

PIN, SPLIT (COTTER)

PIN, 1/16 x 1/2 cot.

1шт.
