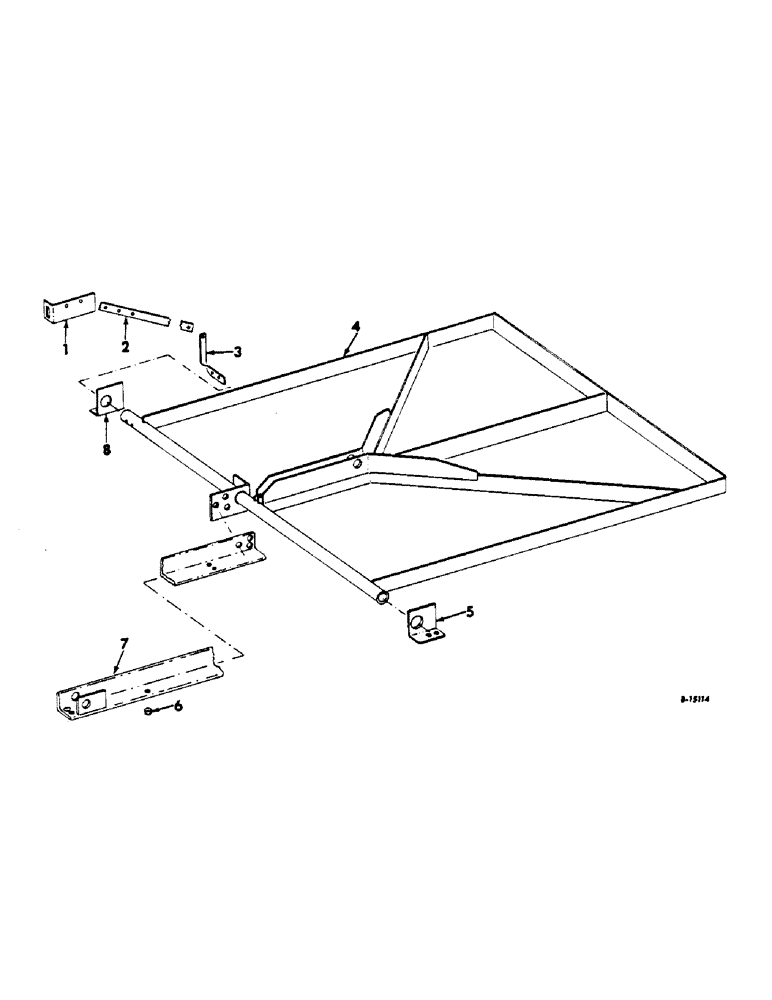

Запчасти Case IH 622 (Q-12) - BASKET AND AIR SYSTEM, BASKET DISTRIBUTOR VANE Basket & Air System

1

670856R1

BRACKET, indicator

1шт.

2

673818R1

STRAP, indicator

1шт.

22912R1

PIN, 3/8 x 15/16 std-hd

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

1шт.

3

670854R1

ARM, indicator

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

673540R2

VANE ASSY, packer

1шт.

17448R1

BOLT (SPREADER)

BOLT, 1/2 x 1-1/4 hex-hd mach

3шт.

102637

NUT,1/2"-13, G5

3шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

NLS

NO LONGER SERVICED

Split (Cotter), 1/4" x 2 3/4"

2шт.

5

673538R1

SUPPORT, vane LH

1шт.

17446R1

BOLT,3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 hex-hd mach

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

6

871688R1

SPACER, cyl

5шт.

142619H

WASHER

13/32 x 3/4 x 11 ga C-Z

2шт.

7

673546R1

ANGLE ASSY, cyl

1шт.

20897R1

BOLT,Short NK, 3/8"-16 x 2 1/2", G2

3/8 x 2-1/2 znd crg

3шт.

18784R1

BOLT,Hex, 3/8"-16 x 2 3/4", G2

2-3/4 znd hex-hd mach

2шт.

102635

NUT,3/8"-16, G5

5шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

8

673809R1

SUPPORT, vane RH

1шт.

17446R1

BOLT,3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 hex-hd mach

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
