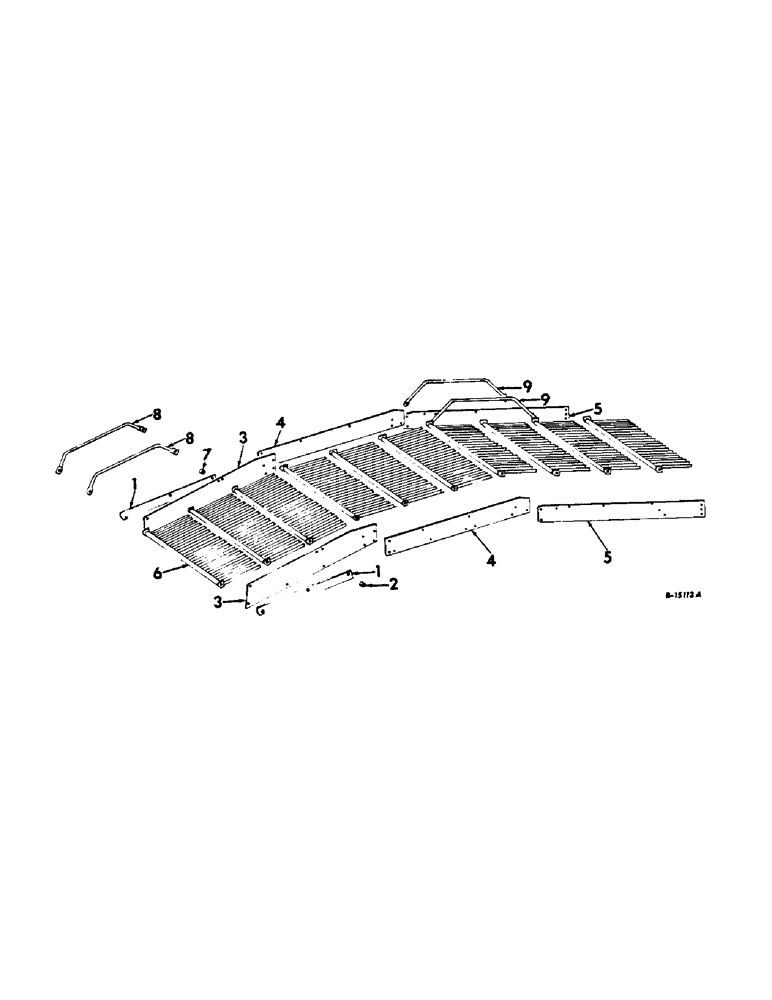

Запчасти Case IH 622 (Q-11) - BASKET AND AIR SYSTEM, BASKET TUNNEL AND GRATES Basket & Air System

1

672759R1

SIDE ASSY.

SIDE, basket cover door

4шт.

2

656790R1

SPACER, basket cover door

2шт.

3

672751R1

PLATE, basket cover grate support front

4шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

4

672752R1

PLATE, basket cover grate support center

4шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

8шт.

102635

NUT,3/8"-16, G5

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

5

672753R1

PLATE, basket cover grate support rear

4шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

12шт.

102635

NUT,3/8"-16, G5

12шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

6

669619R93

SIEVE

GRATE ASSY, basket tunnel

20шт.

14995R1

BOLT

3/8 x 3/4 sq-nk crg

26шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

14шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 znd hex-hd mach

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

2шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd sq-nk crg

2шт.

102635

NUT,3/8"-16, G5

46шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

46шт.

614452R1

WASHER

13/32 x 1-1/4 x 11 ga

6шт.

Q1505

WASHER

13/32 x 1 x 16 ga

10шт.

575807R1

WASHER

13/32 x 1 x 11 ga

8шт.

7

200433C1

SPACER, basket grate

2шт.

8

200417C1

HANDLE

HANDRAIL, basket grate access front

2шт.

9

200416C1

HANDRAIL, basket grate access rear

2шт.
