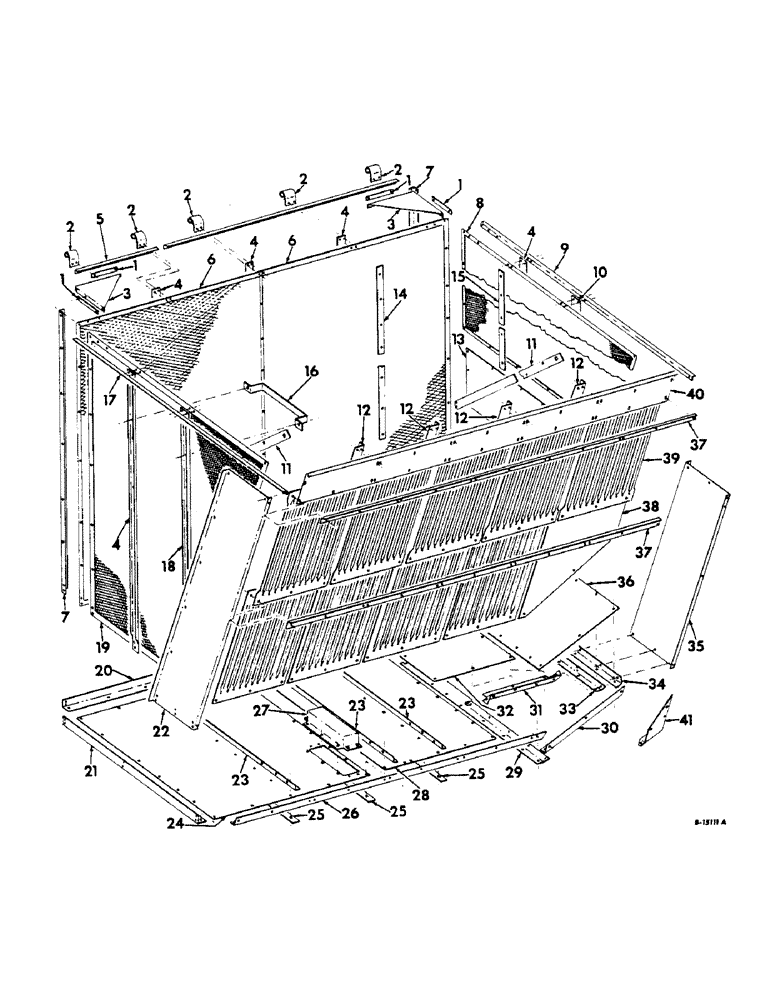

Запчасти Case IH 622 (Q-07) - BASKET AND AIR SYSTEM, BASKET Basket & Air System

1

673702R1

STRIP

basket corner brace filler

4шт.

2

672777R1

HINGE

basket cover

5шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

6шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

3/8 x 1-3/4 znd hex-hd mach

4шт.

102635

NUT,3/8"-16, G5

10шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

10шт.

575807R1

WASHER

13/32 x 1 x 11 ga

10шт.

3

672714R1

BRACE

basket corner

2шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

6шт.

102635

NUT,3/8"-16, G5

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

4

672705R1

CHANNEL, basket vertical

5шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

5шт.

102635

NUT,3/8"-16, G5

5шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

5

672715R1

ANGLE, basket side top

1шт.

6

672716R91

MESH ASSY, basket side

2шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

28шт.

102635

NUT,3/8"-16, G5

28шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

28шт.

7

672700R1

ANGLE, basket corner upright

2шт.

8

672722R91

MESH ASSY, basket rear

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

13шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

8шт.

102635

NUT,3/8"-16, G5

21шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

21шт.

9

672703R1

ANGLE, basket top rear

1шт.

10

672721R1

CHANNEL, basket vertical short

1шт.

11

672712R1

STRAP, basket diagonal

2шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

2шт.

17446R1

BOLT,3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 hex-hd mach

8шт.

102635

NUT,3/8"-16, G5

10шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

10шт.

12

672731R1

ANGLE, sloping side upright

4шт.

13

672727R1

SHEET, basket back, belt drive

1шт.

13

674614R1

SHEET, basket back, hydrostatic drive

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

4шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

4шт.

102635

NUT,3/8"-16, G5

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

14

673840R1

STRIP, vertical channel support long

2шт.

15

673841R1

STRIP, vertical channel support short

2шт.

16

672713R1

STEP, basket

5шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

8шт.

102635

NUT,3/8"-16, G5

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

17

672702R1

ANGLE, basket top front

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

18

672704R1

CHANNEL, basket section vertical

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

19

672706R91

MESH ASSY, basket front

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

12шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

6шт.

102635

NUT,3/8"-16, G5

18шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

18шт.

20

672689R1

ANGLE, basket side bottom

1шт.

21

672688R1

ANGLE, basket bottom front

1шт.

22

672701R1

SECTION, basket end front

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

23

672699R1

ANGLE, basket bottom spt

4шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

15шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd sq-nk crg

6шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 znd hex-hd mach

6шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

29шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

29шт.

24

672695R1

SHEET, basket bottom front

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

2шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

2шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

25

672698R1

STRIP, basket bottom wear

3шт.

26

672691R2

ANGLE, sloping side bottom

1шт.

27

672697R1

SHIELD, fan shaft driven pulley

1шт.

17405R1

BOLT, 3/8 x 1/2 hex-hd mach

7шт.

14995R1

BOLT

3/8 x 3/4 sq-nk crg

3шт.

102635

NUT,3/8"-16, G5

10шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

10шт.

28

672694R1

SHEET, basket bottom center

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 znd hex-hd mach

9шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

3/8 x 1-3/4 znd hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

11шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

11шт.

29

672692R1

ANGLE, basket end bottom, belt drive

1шт.

29

674611R1

ANGLE, basket end bottom, hydrostatic drive

1шт.

30

672728R1

ANGLE, basket diagonal rear, belt drive

1шт.

30

674615R1

ANGLE, basket diagonal rear, hydrostatic drive

1шт.

31

672693R1

ANGLE, basket cut sloping, belt drive

1шт.

31

674612R1

ANGLE, basket cut sloping, hydrostatic drive

1шт.

32

672696R1

SHEET, basket cut bottom

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

5шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

2шт.

102635

NUT,3/8"-16, G5

7шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

7шт.

33

672690R1

ANGLE, basket cut rear, belt drive

1шт.

33

674610R1

ANGLE, basket cut rear, hydrostatic drive

1шт.

34

672719R1

ANGLE, basket cut rear, belt drive

1шт.

34

674613R1

ANGLE, basket cut rear, hydrostatic drive

1шт.

35

672720R2

END, basket section rear

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

36

672729R1

SHEET, rear basket sloping, belt drive

1шт.

36

674616R1

SHEET, rear basket sloping, hydrostatic drive

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

15шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 1 hex-hd mach

3шт.

102635

NUT,3/8"-16, G5

18шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

18шт.

37

672730R1

ANGLE, grate sloping side

2шт.

38

672732R1

GRATE, basket sloping, belt drive

1шт.

38

674617R1

GRATE, basket sloping, hydrostatic drive

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

2шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

1шт.

102635

NUT,3/8"-16, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

39

669887R1

GRATE, basket sloping side

9шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

21шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

21шт.

120376

NUT,5/16"-18, G5

42шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

42шт.

40

672733R1

ROLL, basket sloping side

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

10шт.

102635

NUT,3/8"-16, G5

10шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

10шт.

611346R1

WASHER

13/32 x 7/8 x 16 ga C-Z

10шт.

41

674618R1

GUSSET, basket corner support rear, hydrostatic drive

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 zn-pltd hex-hd mach

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

22264R1

WASHER

13/32 x 1 x 7 ga C-Z

1шт.
