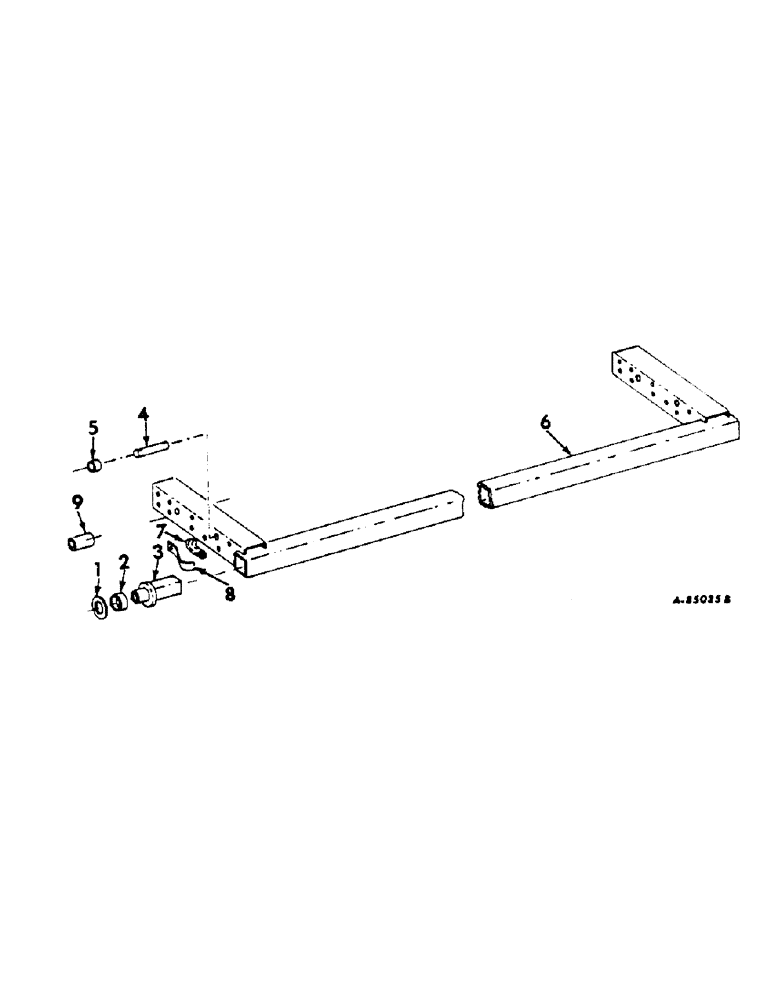

Запчасти Case IH 622 (Q-06) - BASKET AND AIR SYSTEM, BASKET PIVOT Basket & Air System

1

672740R1

WASHER, basket pivot

2шт.

2

672739R1

BEARING, basket pivot roller

2шт.

3

672738R1

PIVOT, basket

2шт.

17672R1

BOLT

5/16 x 3-1/2 hex-hd mach

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

672742R2

PIN

basket pivot stop

2шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

4шт.

131002

WASHER,1"

1-1/16 x 2-1/2 x .136 C-Z

2шт.

5

672741R1

ROLLER

basket pivot stop

2шт.

6

672734R91

PIPE ASSY, basket pivot

1шт.

17448R1

BOLT (SPREADER)

BOLT, 1/2 x 1-1/4 hex-hd mach

4шт.

17428R1

BOLT,Hex, 1/2"-13 x 1", G2, Full Thd

1/2 x 1 hex-hd mach

14шт.

102637

NUT,1/2"-13, G5

18шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

18шт.

7

672743R1

LATCH, basket

1шт.

17471R1

BOLT,Hex, 3/8" - 16 x 1 1/2"

3/8 x 1-1/2 hex-hd mach

1шт.

664645R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 hex. lock

1шт.

8

673596R1

SPRING, basket latch retainer

1шт.

17414R1

BOLT, 1/2 x 3/4 hex-hd mach

1шт.

102637

NUT,1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

9

351278R1

SPACER,1" Pipe x 1 1/2"

basket cylinder

2шт.
