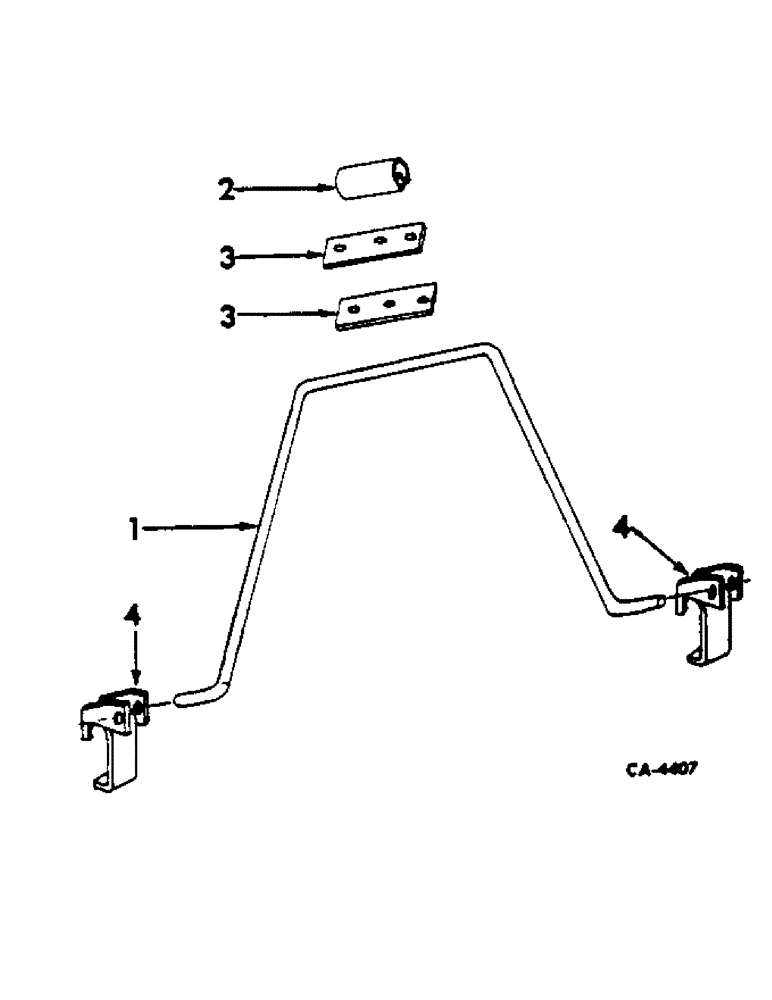

Запчасти Case IH 622 (N-12) - PARTS ACCESSORIES AND ATTACHMENTS, RADIATOR ACCESS LADDER Accessories & Attachments

1

204041C1

radiator access

1шт.

20895R1

PIN,1/4" x 1", Coiled

1/4" x 1", Coiled

2шт.

2

655235R1

CATCH

radiator step

1шт.

3

204040C1

upper

2шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4-20 x 1/2 znd hex-hd cap

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

4

204037C1

ASSY, radiator step

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

187870

SCREW, 3/8-16 x 1-1/2 zn cup-pt sq-hd

2шт.
