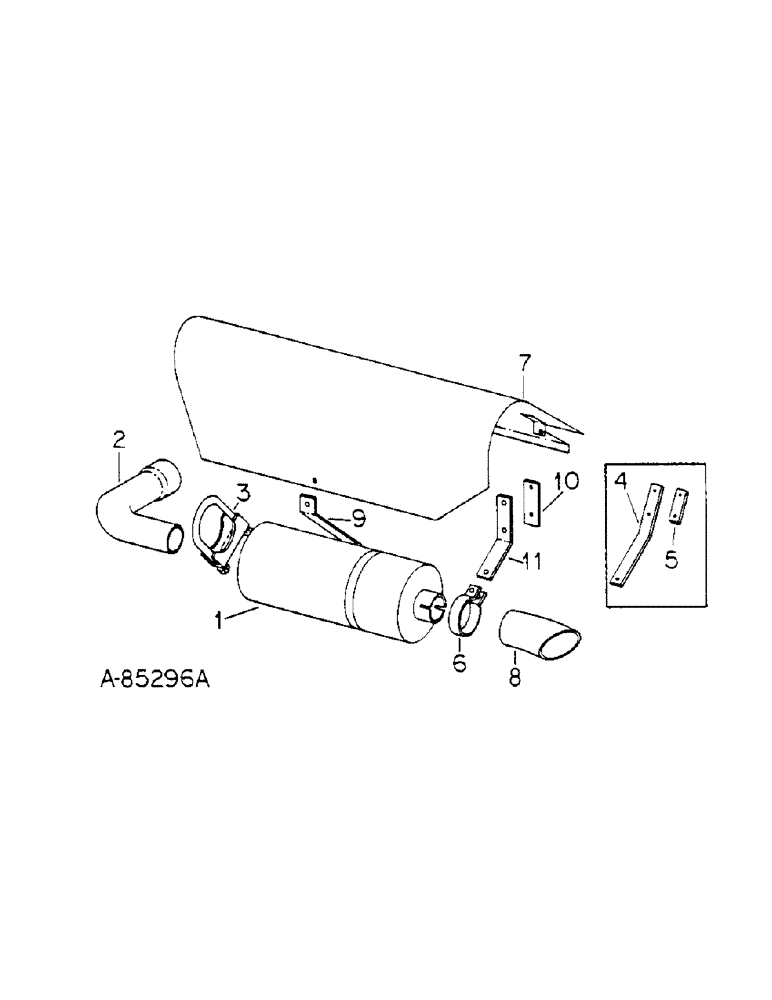

Запчасти Case IH 622 (N-11) - PARTS ACCESSORIES AND ATTACHMENTS, SPARK ARRESTER Accessories & Attachments

1

204229C1

SPARK

1шт.

2

204246C1

exhaust

1шт.

3

266316C91

ASSY, spark arrester-front

1шт.

4

204247C1

spark arrester machines built, Serial Range: prior-1976

1шт.

5

204248C1

support machines built, Serial Range: prior-1976

1шт.

180112

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

SCREW, 5/16-18 x 2-3/4 znd hex-hd cap

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 znd hex lock

2шт.

6

384402R1

FASTENER

CLAMP, spark arrester-rear

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 znd hex lock

1шт.

7

204796C1

ASSY, spark arrester

1шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 znd mach

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

NLS

NO LONGER SERVICED

NUT, 5/16 znd hex.

1шт.

8

204800C1

exhaust

1шт.

9

204803C1

rear

1шт.

10

204801C1

support

1шт.

11

204802C1

front

1шт.

18678R1

BOLT,Short NK, 5/16"-18 x 3", G2

5/16 x 3 znd sq-nk crg

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.
