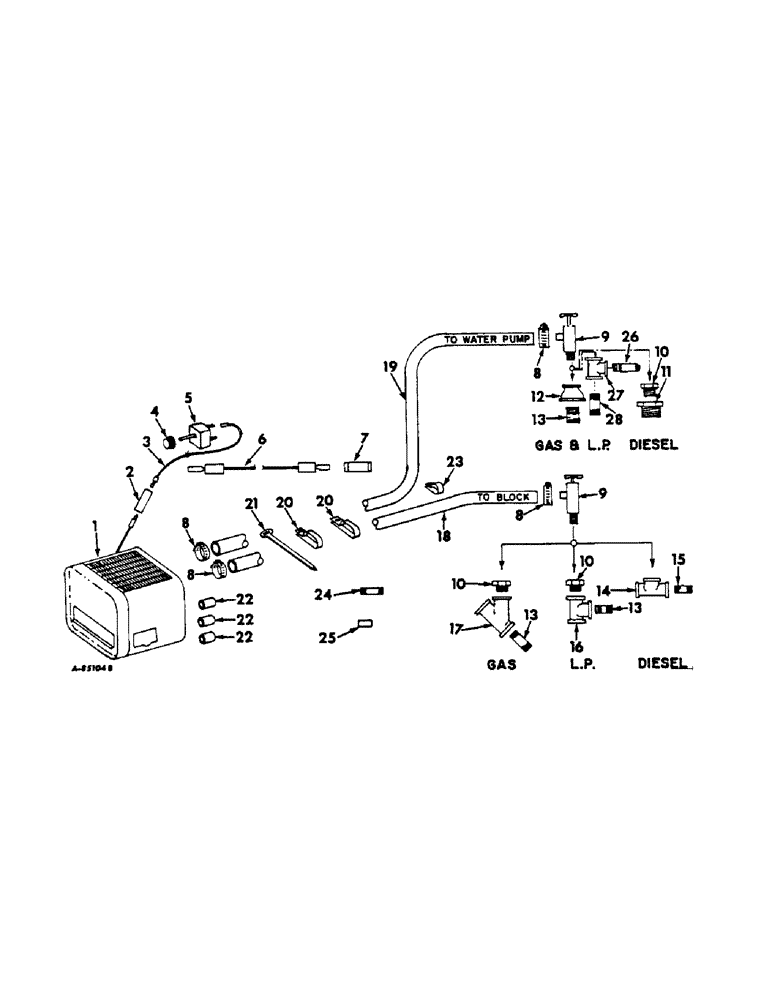

Запчасти Case IH 622 (N-07) - PARTS ACCESSORIES AND ATTACHMENTS, HEATER AND CONNECTIONS Accessories & Attachments

1

936197R91

ASSY, see section N operators cab heater

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

3шт.

2

46893H1

CONNECTOR, heater power supply cable

1шт.

3

200863C1

WIRE ASSY, heater lead

1шт.

4

200860C1

KNOB

heater switch

1шт.

5

200542C91

ASSY, heater two speed

1шт.

6

673456R1

jumper

1шт.

7

147685

FUSE,14 Amp, Type SFE

cartridge type SFE 14

1шт.

8

168802H1

HOSE CLAMP

5/8 heater hose no. 10

4шт.

9

301803R91

VALVE

ASSY, heater shut-off

2шт.

10

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING, 1/2 x 3/8 reducer, 1 for diesel, 2 for gas and LP gas

1шт.

11

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

BUSHING, 1 x 1/2 reducer, diesel

1шт.

12

221-1349

COUPLING,Pipe, 1/2" x 3/8" NPT

Pipe, 1/2" x 1/8" NPT, gas and LP gas

1шт.

13

121664

1/2 x 2-1/2 pipe, gas and LP gas Nipple, 1/2" NPT x 2 1/2"

2шт.

14

218233

HYD CONNECTOR

1/4 x 1/4 x 3/8 pipe, diesel

1шт.

15

221-131

PIPE,Nipple, 1/4" NPT x 1"

1/4 x 1 pipe, diesel

1шт.

16

138105

TEE,1/2" NPT, Fem

1/2 pipe, LP gas

1шт.

17

200545C1

FITTING, 1/2 pipe Y, gasoline

1шт.

18

HEATER HOSE, use 170 inches of 5/8 inch heater hose from a 50 ft. roll marked 995108R2

1шт.

19

HEATER HOSE, use 154 inches of 5/8 inch heater hose from a 50 ft. roll marked 995108R2

1шт.

20

204412C1

CLIP, heater hose

2шт.

21

670362R1

CABLE

STRAP, heater hose

3шт.

22

878986R1

SPACER,1/4" Pipe x 5/8"

1/2 x .625 std pipe

3шт.

23

126105

SHIM,.0075 Thk

no. 14 hose, diesel only

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

24

509962

HYD CONNECTOR

3/8 x 2 pipe, gas

1шт.

25

120755

COUPLING,3/8" NPT

3/8-inch

1шт.

26

397853R2

NIPPLE, pipe

1шт.

27

120280

TEE,3/8" NPT, Fem

3/8 pipe

1шт.

28

509962

HYD CONNECTOR

3/8 x 2 pipe

1шт.
