(N-06) - PARTS ACCESSORIES AND ATTACHMENTS, OPERATORS CAB HEATER

Запчасти Case IH 622 (N-06) - PARTS ACCESSORIES AND ATTACHMENTS, OPERATORS CAB HEATER Accessories & Attachments

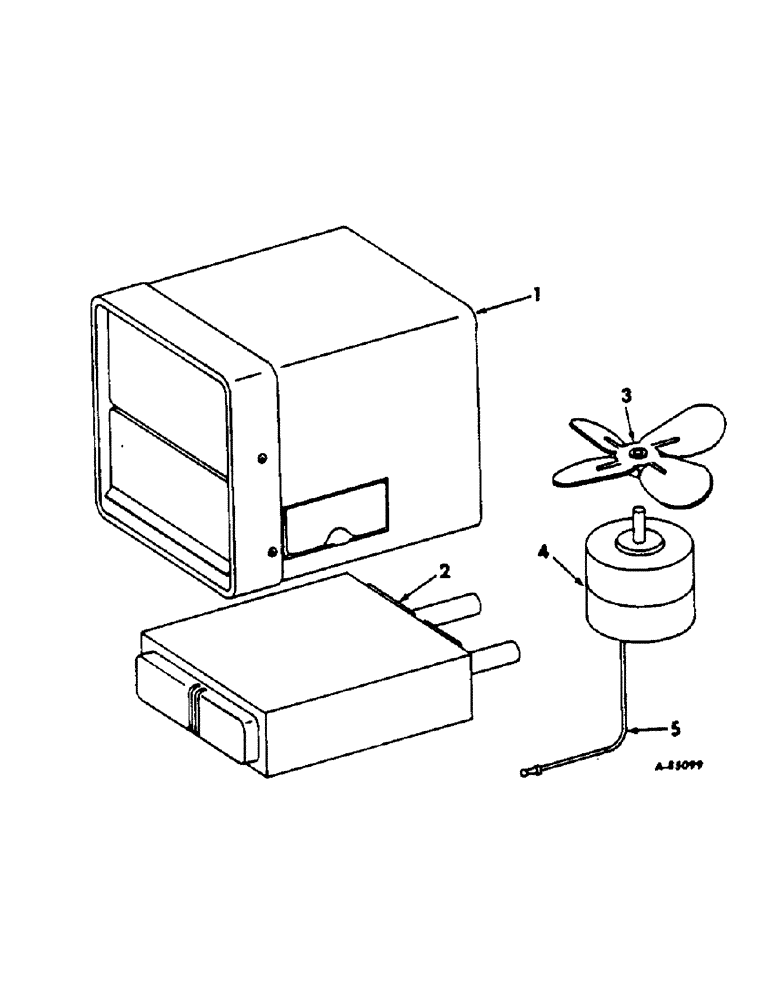

Схема запчастей Case IH 622 - (N-06) - PARTS ACCESSORIES AND ATTACHMENTS, OPERATORS CAB HEATER Accessories & Attachments
5
4
3
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

936197R91

ASSY, operators cab

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

3шт.

2

936491R91

CORE

ASSY, heater

1шт.

3

936490R91

FAN

CORE ASSY, heater

1шт.

3

936490R91

FAN

ASSY, 6 inch dia.

1шт.

4

936489R91

MOTOR

ASSY

1шт.

5

46894H

WIRE CONNECTOR,14 - 16 SAE

male tip

1шт.
