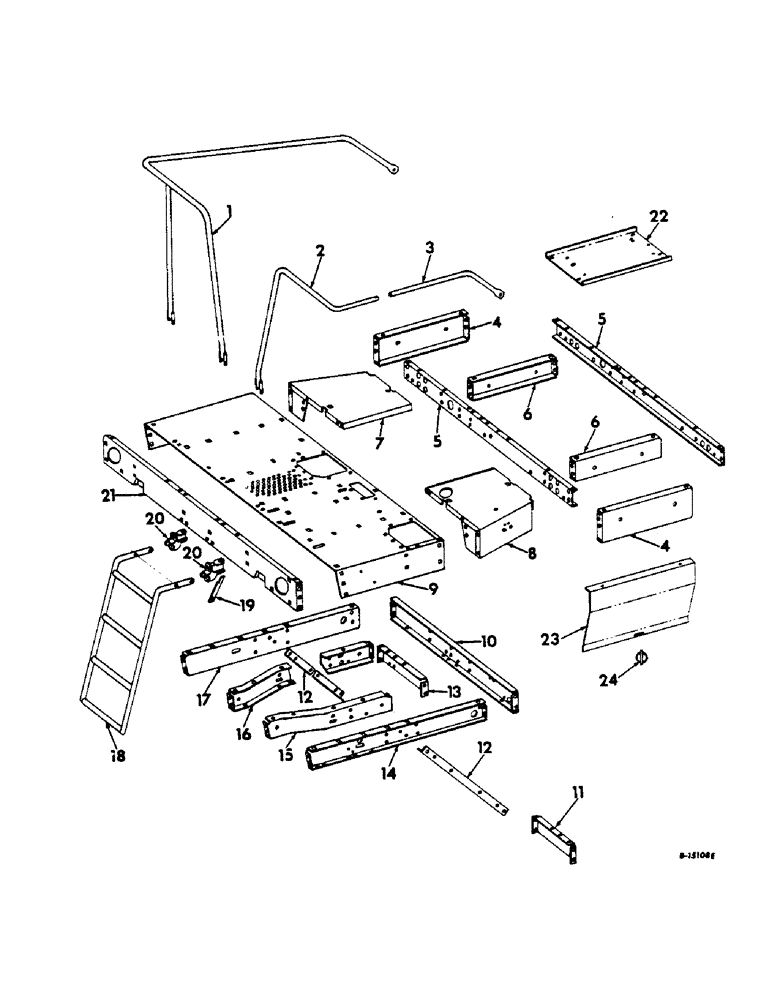

Запчасти Case IH 622 (M-06) - SEAT, OPERATORS PLATFORM & MISC., OPERATORS DECK AND LADDER (10) - OPERATORS PLATFORM

1

672812R91

TUBE ASSY, platform RH

1шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

2

672810R11

ASSY, handrail front LH

1шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

18781R1

BOLT,Hex, 3/8"-16 x 2", G2

3/8 x 2 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

3

672808R11

ASSY, handrail rear LH

1шт.

19289R1

1/2 x 3/4 C-Z hex-hd mach

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

4

672618R1

fan support end

2шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

16шт.

102635

NUT,3/8"-16, G5

16шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

16шт.

17428R1

BOLT,Hex, 1/2"-13 x 1", G2, Full Thd

1/2 x 1 hex-hd mach

16шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2-13 x 1-1/4 znd hex-hd

4шт.

102637

NUT,1/2"-13, G5

20шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

20шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

8шт.

5

672617R1

fan support front & rear

2шт.

6

672616R1

fan support center

2шт.

7

672782R1

EXTENSION, platform RH

1шт.

21737R1

BOLT,Sq Nk, 5/16" - 18 x 5/8", Gr 2

5/16 x 5/8 C-Z sq-nk crg

2шт.

18473R1

SCREW,Hex, 5/16"-18 X 5/8", G2

BOLT, 5/16 x 5/8 C-Z hex-hd mach

6шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

8

672781R1

platform LH

1шт.

21737R1

BOLT,Sq Nk, 5/16" - 18 x 5/8", Gr 2

5/16 x 5/8 C-Z sq-nk crg

2шт.

18473R1

SCREW,Hex, 5/16"-18 X 5/8", G2

BOLT, 5/16 x 5/8 C-Z hex-hd mach

6шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

9

672789R2

cotton picker

1шт.

14990R1

BOLT

5/16 x 5/8 sq-nk crg

10шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

10шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

10

672778R1

platform support rear

1шт.

17407R1

BOLT,5/16" - 18 x 5/8"

5/16 x 5/8 hex-hd mach

8шт.

14990R1

BOLT

5/16 x 5/8 sq-nk crg

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

10шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

11

672779R1

hydraulic valve support LH

1шт.

17407R1

BOLT,5/16" - 18 x 5/8"

5/16 x 5/8 hex-hd mach

2шт.

14990R1

BOLT

5/16 x 5/8 sq-nk crg

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

12

672783R1

platform brace

2шт.

17428R1

BOLT,Hex, 1/2"-13 x 1", G2, Full Thd

1/2 x 1 hex-hd mach

2шт.

17473R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 2

1/2 x 1-1/2 hex-hd mach

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

13

672780R1

hydraulic valve support RH

1шт.

17407R1

BOLT,5/16" - 18 x 5/8"

5/16 x 5/8 hex-hd mach

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

14

672784R2

platform support LH

1шт.

17428R1

BOLT,Hex, 1/2"-13 x 1", G2, Full Thd

1/2 x 1 hex-hd mach

4шт.

102637

NUT,1/2"-13, G5

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

2шт.

15

672786R1

platform support center LH

1шт.

14990R1

BOLT

5/16 x 5/8 sq-nk crg

4шт.

17407R1

BOLT,5/16" - 18 x 5/8"

5/16 x 5/8 hex-hd mach

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

16

672787R1

platform support center RH

1шт.

14990R1

BOLT

5/16 x 5/8 sq-nk crg

4шт.

17407R1

BOLT,5/16" - 18 x 5/8"

5/16 x 5/8 hex-hd mach

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

17

672785R1

platform support RH

1шт.

17428R1

BOLT,Hex, 1/2"-13 x 1", G2, Full Thd

1/2 x 1 hex-hd mach

4шт.

102637

NUT,1/2"-13, G5

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

18

672804R91

ASSY, platform

1шт.

522855R1

PIN,12.7mm OD x 66.67mm L

1/2 x 2-5/8 circular rd-hd

2шт.

432-1216

COTTER PIN,3/16" x 1"

2шт.

19

672807R1

platform ladder latch

1шт.

35229H

CLEVIS PIN,3/8" x 2"

3/8 x 2 rod end

1шт.

103362

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

20

672815R1

platform ladder

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8-16 x C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

21

674794R1

ASSY, platform front, replaces 672788R1

1шт.

19428R1

BOLT, 5/16 x 5/8 cdp sq-nk crg

16шт.

120376

NUT,5/16"-18, G5

16шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

16шт.

22

673317R1

drum drive

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

23

201387C1

mud upper

2шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

1/2 x 1 hex-hd mach.

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

24

200647C1

PIN

ASSY, mud shield retainer

2шт.
