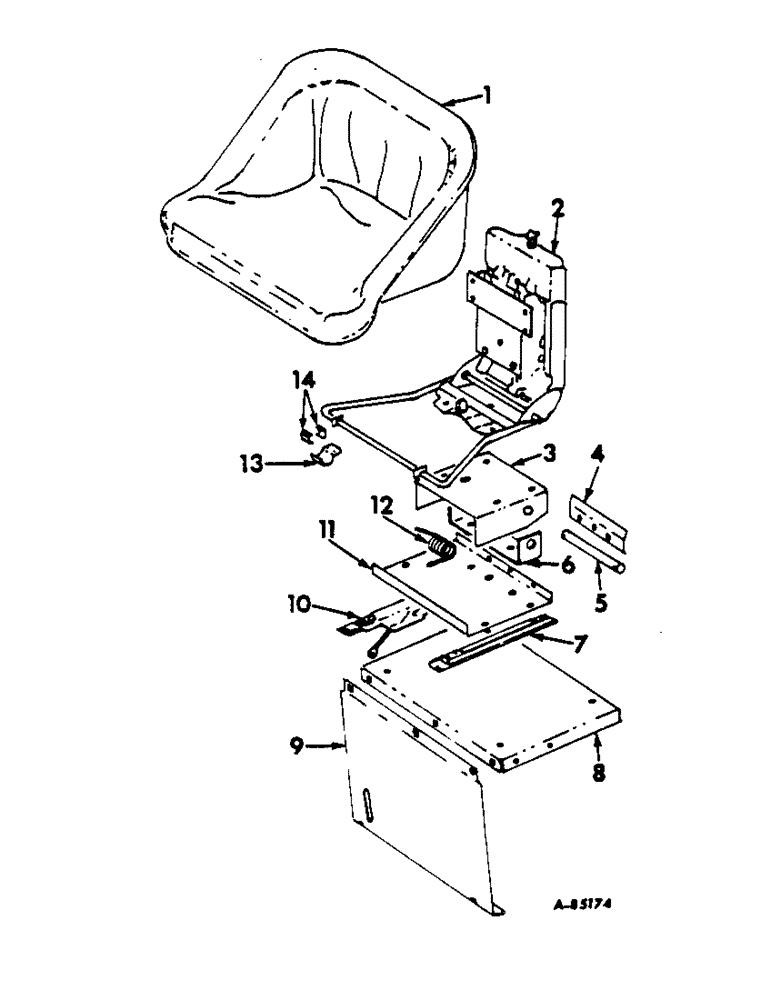

Запчасти Case IH 622 (M-04) - SEAT, OPERATORS PLATFORM & MISC., OPERATORS SEAT, SERIAL NOS (10) - OPERATORS PLATFORM
№
Артикул
Название
Примечание
Количество
1
825202C91
ASSY, operator
1шт.
88574
BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd
4шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
4шт.
2
825201C91
SUSPENSION ASSY, seat, see section M operators seat suspension
1шт.
3
202146C1
seat pivot
1шт.
120376
NUT,5/16"-18, G5
4шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
4шт.
4
202148C1
seat stop
1шт.
120376
NUT,5/16"-18, G5
3шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
3шт.
5
665904R1
operator seat pivot
1шт.
615191R1
WASHER
29/32 x 1-1/4 x 16 ga C-Z
2шт.
20340R1
COTTER PIN,1/4" x 1 1/2"
1/4" x 1 1/2"
2шт.
6
202147C1
seat stationary
1шт.
120376
NUT,5/16"-18, G5
3шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
3шт.
7
825198C1
RAIL
SLIDE, seat adjusting LH
1шт.
8
202144C1
seat
1шт.
18764R1
HARDWARE,Hex, 5/16"-18 x 3/4", G2
BOLT, 5/16 x 3/4 znd hex-hd mach
4шт.
120376
NUT,5/16"-18, G5
4шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
4шт.
9
202149C1
seat support front
1шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 znd sq-nk crg
6шт.
120376
NUT,5/16"-18, G5
6шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
6шт.
10
825199C91
SLIDE
ASSY, adjusting RH
1шт.
11
202145C1
seat slide rail
1шт.
18764R1
HARDWARE,Hex, 5/16"-18 x 3/4", G2
BOLT, 5/16 x 3/4 znd hex-hd mach
4шт.
120376
NUT,5/16"-18, G5
4шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
4шт.
12
627221R1
seat
1шт.
13
825204C1
RETAINER
CLIP, bearing retainer
2шт.
88574
BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd
4шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
4шт.
14
825203C1
BUSHING
seat retainer half
4шт.
Выбрано товаров: 38
