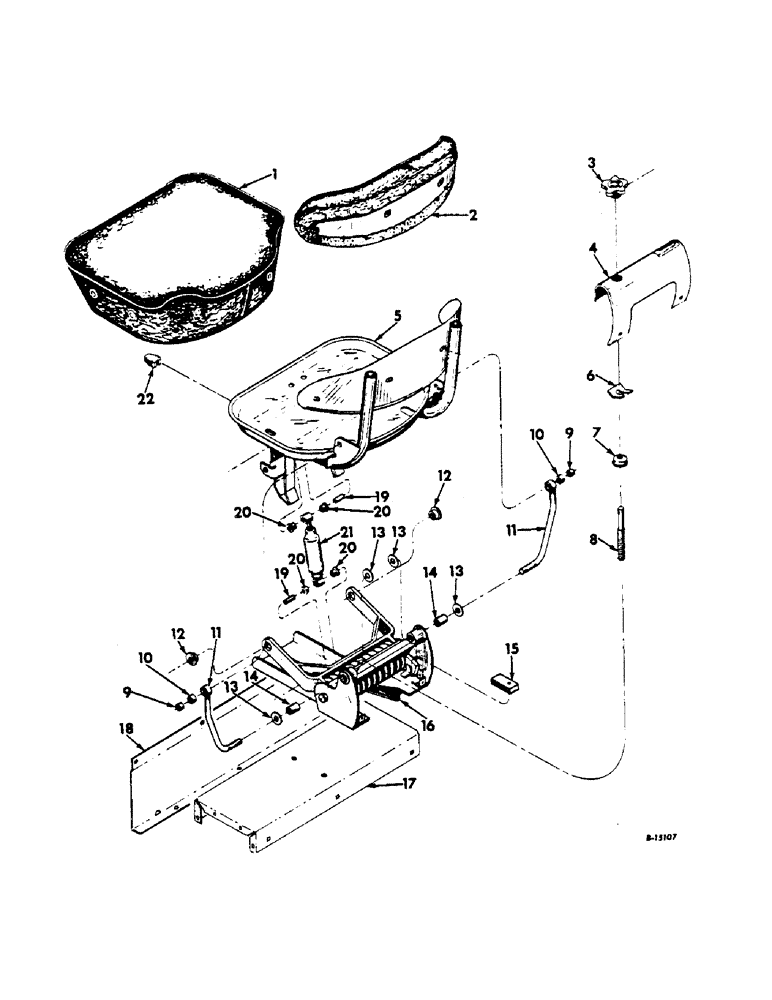

Запчасти Case IH 622 (M-02) - SEAT, OPERATORS PLATFORM & MISC., OPERATORS SEAT, SERIAL NOS (10) - OPERATORS PLATFORM

673110R91

ASSY, consists of the following service parts

1шт.

1

673939R1

COVER, seat

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 C-Z hex-hd cap

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

2

673940R1

PAD, back

1шт.

160515

SCREW,Cross Pan Hd, 1/4" - 20 x 1/2"

4шт.

3

673958R1

hand

1шт.

18518R1

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

4

673957R1

COVER, suspension

1шт.

440-1106

SCREW,Cross Pan Hd, #10-24 x 3/8"

10-24 x 3/8 C-Z cr-rec-pan-hd mach

1шт.

445441

NUT,U, #10-24

10-24 spring U

1шт.

5

673941R1

ASSY, seat

1шт.

6

673956R1

PLATE, screw thrust

1шт.

7

673955R1

ASSY, adjusting screw thrust

1шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

1шт.

8

673954R1

adjusting

1шт.

9

673951R1

suspension arm bushing

2шт.

10

673952R1

suspension arm upper

2шт.

11

673948R1

seat suspension

2шт.

18518R1

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

3шт.

19481R1

LOCK PIN,1/8" x 1 3/8", Slotted

Pin, 1/8" x 1 3/8", Slotted

1шт.

181643

BOLT,Hex, 3/8" - 24 x 1 1/2", Gr 5

SCREW, 3/8-24 x 1-1/2 C-Z hex-hd cap

2шт.

144419H

LOCK NUT,3/8"-24, GB

3/8-24 C-Z hex.

2шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

2шт.

12

592681R91

ASSY, seat suspension, replaces 673947R1

2шт.

13

673949R1

BUSHING, suspension arm outer

4шт.

14

673950R1

suspension arm inner

2шт.

15

673953R1

shock

1шт.

132776

SCREW,Sl Rnd Hd, #8 - 32 x 1"

8-32 x 1 C-Z slt-rd-hd mach

1шт.

120622

NUT,#8-32

1шт.

495-21019

WASHER,#8

3/16 x 7/16 x .036 C-Z

1шт.

16

673946R1

ASSY, seat suspension

1шт.

181638

BOLT,Hex, 3/8" - 24 x 1 1/8"

SCREW, 3/8-24 x 1-1/8 C-Z hex-hd cap

2шт.

144419H

LOCK NUT,3/8"-24, GB

3/8-24 C-Z hex.

2шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

17

673111R11

ASSY, seat

1шт.

18

673112R1

seat support front

1шт.

17425R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 hex-hd mach

8шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

3шт.

17411R1

BOLT,Hex, 5/16"-18 X 3/4", G2

5/16 x 3/4 hex-hd mach

3шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

17447R1

BOLT

7/16 x 1-1/4 hex-hd mach

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

Q5028

WASHER

15/32 x 1 x 11 ga

2шт.

19

673945R1

shock absorber

2шт.

181576

SCREW, 1/4-28 x 1-5/8 C-Z hex-hd cap

2шт.

144417H

NUT,1/4"-28, GB

1/4-28 C-Z hex. lock

2шт.

120423

LOCK WASHER,Int Tooth, 0.267" ID x 0.478" OD x 0.028"

WASHER, LOCK, Int Tooth, 1/4"

2шт.

20

673944R1

shock absorber

4шт.

21

673943R1

seat shock

1шт.

22

673942R1

rubber

1шт.
