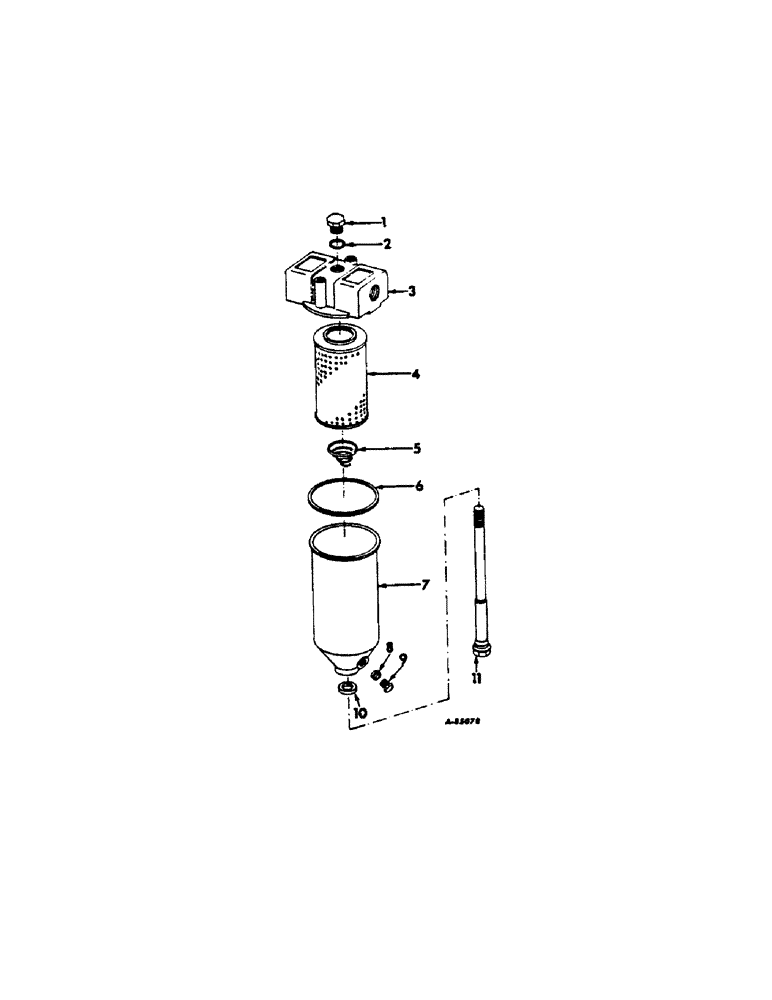

Запчасти Case IH 622 (F-24) - HYDRAULICS SYSTEM, CHARGE PUMP FILTER FOR HYDROSTATIC DRIVE, (07) - HYDRAULIC SYSTEM

156571C91

FILTER CARTRIDGE

ASSY, oil, consists of Ref. no. 1 thru 11

1шт.

1

9410359

PLUG

ASSY, 3/4 hex.

1шт.

2

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

.644 x .818 x .087

1шт.

3

VALVE AND BASE ASSY, not serviced separately, order 156571C91

1шт.

4

381256R91

ELEMENT

CARTRIDGE ASSY

1шт.

5

471633R1

SPRING

holddown

1шт.

6

381627R1

RUBBER WASHER

GASKET, base groove

1шт.

7

471634R1

FITTING ASSY

1шт.

8

381618R1

COPPER WASHER

RING, gasket

1шт.

9

445078

PLUG

1/2-20 hex-hd outside drain

1шт.

10

381629R1

GASKET

1шт.

11

471632R1

hold down

1шт.
