(F-18) - HYDRAULICS SYSTEM, FLOW DIVIDER, FOOT-N-INCH VALVE

Запчасти Case IH 622 (F-18) - HYDRAULICS SYSTEM, FLOW DIVIDER, FOOT-N-INCH VALVE (07) - HYDRAULIC SYSTEM

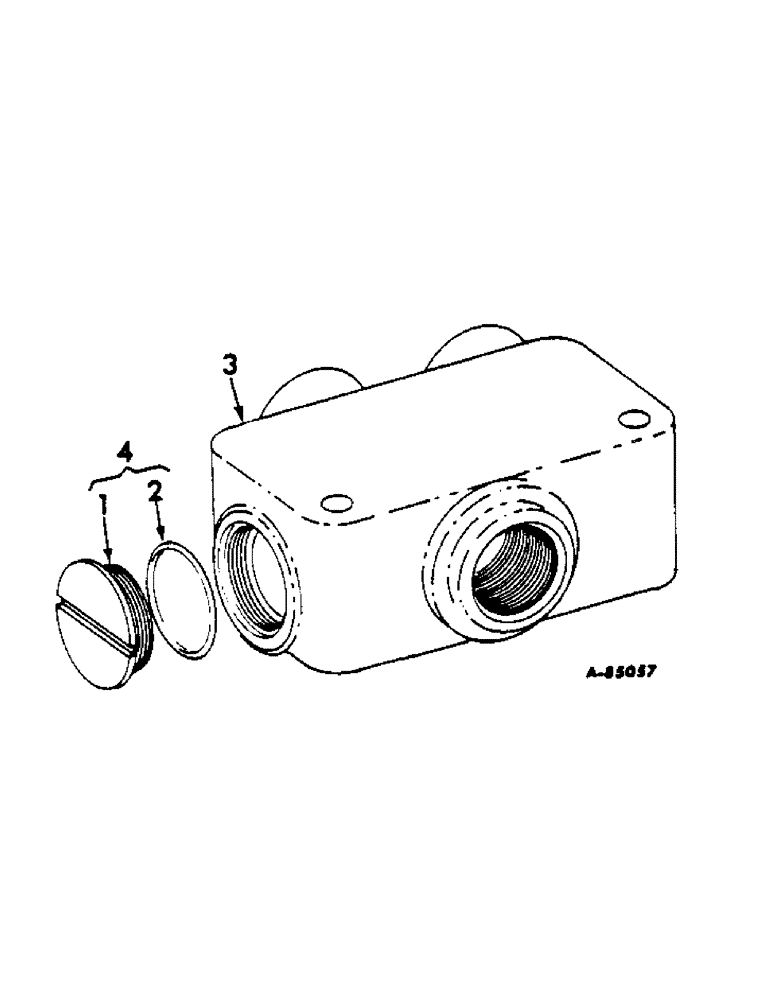

Схема запчастей Case IH 622 - (F-18) - HYDRAULICS SYSTEM, FLOW DIVIDER, FOOT-N-INCH VALVE (07) - HYDRAULIC SYSTEM
3
1
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

673194R91

ASSY, proportional flow consists of the following service parts

1шт.

1

673563R1

flow divider

2шт.

2

383219R1

O-RING,0.924" ID x 0.103" Width

flow divider

2шт.

3

NOT SERVICED SEPARATELY, order 673194R91

1шт.

4

674544R91

ASSY, slotted

2шт.

Выбрано товаров: 5
