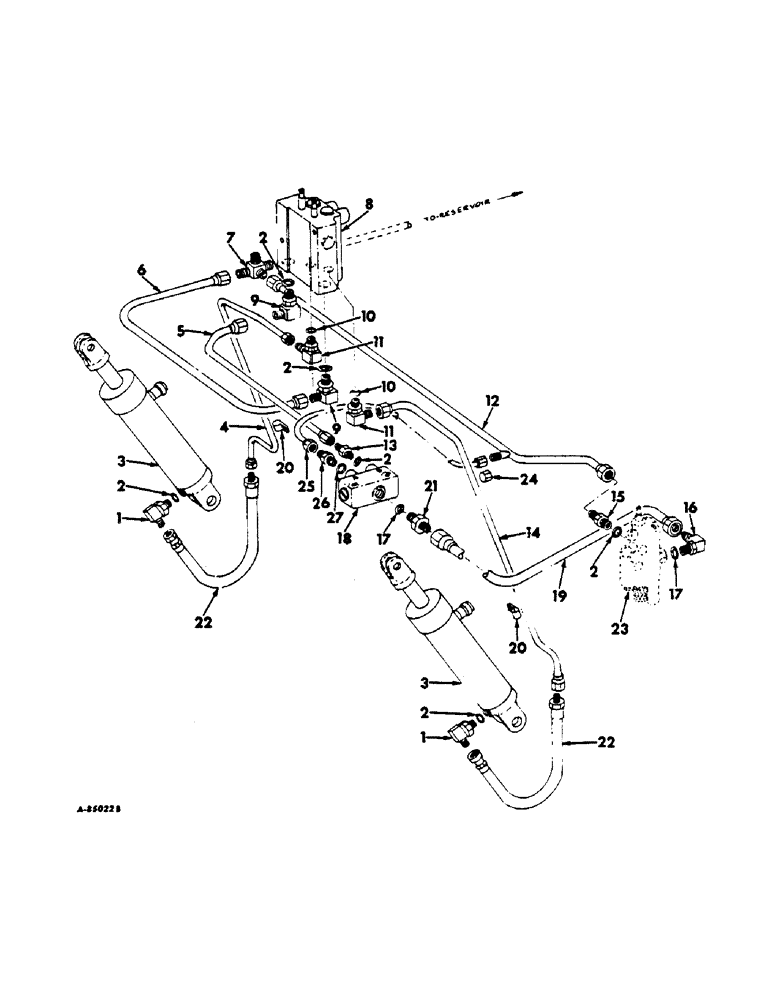

Запчасти Case IH 622 (F-14) - HYDRAULICS SYSTEM, HYDRAULIC DRUM CONTROL (07) - HYDRAULIC SYSTEM

1

671796R1

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

w/locknut and washer, 7/8-14 x 9/16-18 37 deg hyd flared tube 90 deg, replaces 673422R1

2шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

6шт.

3

396595R94

CYLINDER

ASSY, drum hyd, 616501M thru 519M, 622501M thru 604M

2шт.

3

404142R94

ASSY, drum hyd, 616520N up, 622605N up, see section F, drum hydraulic cylinder

2шт.

4

673446R11

ASSY, drum control, Serial Range: valve-cyl

1шт.

5

673406R11

ASSY, drum valve supply

1шт.

6

673398R11

ASSY, drum valve return

1шт.

7

673396R1

return line

1шт.

8

673196R92

VALVE

ASSY, hyd. drum control, see section F hydraulic drum contrl valve

1шт.

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

5/16-18 x 2-1/2 znd hex-hd cap

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

w/locknut & washer, 7/8-14 37 deg hyd flared tube adj str thd 90 deg

2шт.

10

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

.644 x .818 x .087

2шт.

11

673447R2

w/locknut & washer, 9/16-18 x 3/4-16 37 deg hyd flared tube 90 deg

2шт.

12

673397R11

ASSY, basket, Serial Range: return-tee

1шт.

13

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 37 deg hyd flared tube short swivel

1шт.

14

673445R11

ASSY, drum control valve to cyl LH

1шт.

15

673443R1

UNION

CONNECTOR, 7/8-14 x 1-1/16-12 37 deg hyd flared tube short swivel

1шт.

16

9410979

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

w/locknut & washer, 1-1/16-12 37 deg hyd flared tube adj str thd 90 deg

1шт.

17

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

15/16 x 1-3/16 x 1/8

2шт.

18

673194R91

ASSY, proportional flow, see section F flow divider

1шт.

18769R1

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 2

5/16 x 2-1/2 znd hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

19

673404R11

ASSY, basket valve to flow divider

1шт.

20

140569

DECAL

no. 6-3/8 x 5/16 closed

4шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

21

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

1-1/16-12 37 deg hyd flared tube short swivel

1шт.

22

673448R1

HOSE ASSY.

ASSY, drum lift cylinder

2шт.

23

VALVE ASSY, basket control, see section F basket control valve

1шт.

24

9403372

CAP,37 Degree, 3/4"-16

3/4-16 37 deg hyd flared tube, belt drive

1шт.

25

674642R11

ASSY, flow divider, hydrostatic drive

1шт.

26

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 3/4-16 37 deg hyd flared tube short swivel

1шт.

27

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

.644 x .818 x 5/64

1шт.
