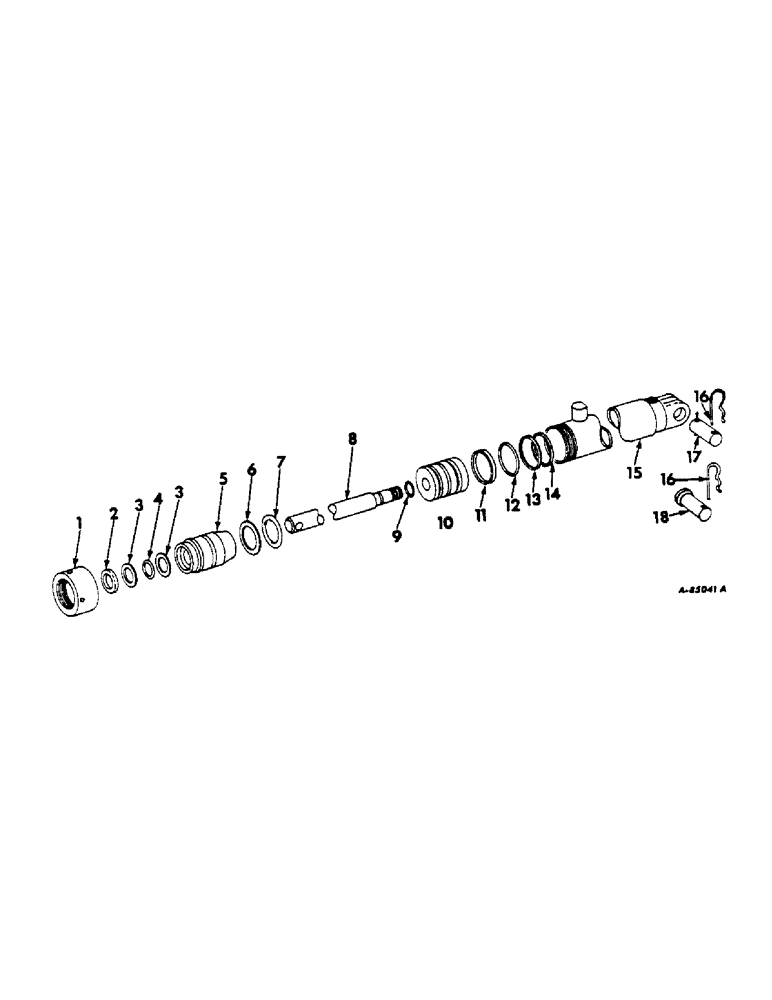

Запчасти Case IH 622 (F-11) - HYDRAULICS SYSTEM, BASKET HYDRAULIC CYLINDER (07) - HYDRAULIC SYSTEM

396658R92

ASSY, basket hydraulic composed of the following service parts except ref no. 16, 17 and 18

2шт.

1

381089R1

RING

retaining

1шт.

2

403845R1

WIPER SEAL

piston rod

1шт.

3

387362R2

BACK-UP RING

WASHER, piston rod back-up

2шт.

4

403995R1

RING

quad

1шт.

5

387353R1

END

HEAD, cyl front

1шт.

5

1272149C92R

REMAN-HYD CYLINDER

616, 622, Both INTERNATIONAL HARVESTER COTTON PICKER, HEAD, cyl front, Reman for New PN 387353R1

1шт.

5

1272149C92C

CORE-HYD CYLINDER

Return Number

1шт.

6

381088R1

BACK-UP RING

front head back-up

1шт.

7

378827R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro

3-1/8 x 3-1/2 x 3/16

1шт.

8

396661R1

ROD

piston

1шт.

25126R1

LOCK NUT,1 1/8"-12, GC

1-1/8-12 hex lock

1шт.

9

350818R1

O-RING,0.984" ID x 0.139" Width

1 x 1-1/4 x 1/8

1шт.

10

387354R1

PISTON

hydraulic

1шт.

11

383005R1

RING

piston bearing front

1шт.

12

380910R1

O-RING,0.103" Thk x 2.987" ID, -151, Cl 5, 75 Duro

3 x 3-3/16 x 3/32

1шт.

13

381086R1

RING

SEAL, piston

1шт.

14

383005R1

RING

piston brg rear

1шт.

15

396659R2

PIPE ASSY, hydraulic

1шт.

16

520175R1

CLIP

PIN, quick attachable cot

2шт.

17

387235R11

PIN

ASSY, cylinder front, used w/cylinder, 396658R91

1шт.

18

60909C1

PIN

cylinder pivot front, used w/cylinder, 396658R92

1шт.

387881R92

SEAL KIT

KIT, cylinder service, composed of (1) o-ring 350818R1, (1) washer 381088R1, (1) o-ring 378827R1, (2) washer 387362R2, (1) ring 403995R1, (1) wiper 403845R1, (1) o-ring 380910R1, (1) seal 381086R1, (2) ring 383005R1

1шт.
