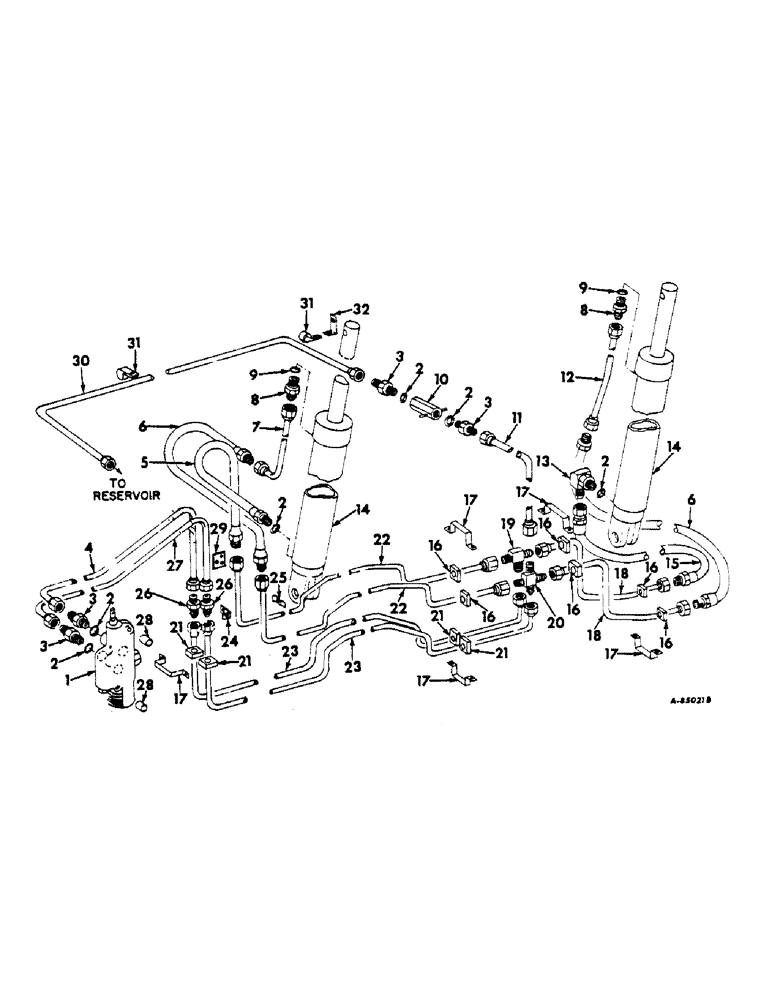

Запчасти Case IH 622 (F-07) - HYDRAULICS SYSTEM, HYDRAULIC BASKET CONTROL, 616 501M THRU (07) - HYDRAULIC SYSTEM

1

673193R91

ASSY, basket control, see section F basket control valve

1шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

6шт.

3

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 37 deg hyd flared short swivel tube

4шт.

4

673441R11

ASSY, basket cyl supply outer

1шт.

5

673879R91

ASSY, hyd basket cyl lift front

1шт.

6

673432R1

ASSY, basket cylinder long

2шт.

7

673434R11

ASSY, basket cylinder

1шт.

8

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 3/4-16 37 deg hyd flared tube short swivel

2шт.

9

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

.644 x .818 x .087

2шт.

10

395778R91

line check

1шт.

11

673600R11

ASSY, basket anti-cavitation short

1шт.

12

673430R11

ASSY, basket cylinder rear

1шт.

13

936450R91

ELBOW,90 Degree, 3/4"-16, 37 Degree x 7/8"-14, O-Ring

w/locknut & washer, 3/4-16 x 7/8-14 37 deg hyd flared tube 90 deg, replaces 673431R1

1шт.

14

396658R91

ASSY, basket hydraulic, see section F basket hydraulic cylinder

2шт.

273050

HYDRAULIC OIL FILTER

SCREW, 1-14 x 5-1/4 hex-hd cap

2шт.

19256R1

LOCK NUT,1"-14, G5

1-14 hex lock

2шт.

15

673433R1

ASSY, basket cylinder short

1шт.

16

200536C1

3/8 to 1/2 hyd line

4шт.

16

673386R1

hyd line

2шт.

17

673385R1

CLAMP

hyd tube holder

5шт.

17410R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 hex-hd mach

10шт.

109084

NUT,1/4"-20, G5

10шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

10шт.

18

673438R21

ASSY, basket cyl rear lower

2шт.

19

673437R1

3/4-16 x 7/8-14 37 deg hyd flared tube

1шт.

20

673601R1

reservoir return

1шт.

21

673387R1

BUSHING

5/8 to 3/4 hyd line

4шт.

22

673436R11

ASSY, basket cylinder front

2шт.

23

673439R11

ASSY, basket cyl supply, hydrostatic drive 616000655 and below, 622001314 and below, belt drive, 501M and up

2шт.

23

201941C1

ASSY, basket cylinder supply, hydrostatic drive 616000656 and up, 622001315 and up

2шт.

24

673444R1

hyd line mounting, hydrostatic drive 616000655 and below, 622001314 and below, belt drive, 501M and up

1шт.

17411R1

BOLT,Hex, 5/16"-18 X 3/4", G2

BOL, 5/16 x 3/4 hex-hd mach

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

2шт.

25

588322R2

CLAMP, hyd line

1шт.

17411R1

BOLT,Hex, 5/16"-18 X 3/4", G2

5/16 x 3/4 hex-hd mach

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

26

9402788

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

7/8-14 37 deg hyd flared tube

2шт.

27

673440R11

ASSY, basket lift inner

1шт.

28

603047R1

SPACER

basket valve

2шт.

15141R1

BOLT, 5/16 x 3 sq-nk crg

1шт.

15171R1

BOLT,Sq Nk, 5/16" x 3 1/2"

5/16 x 3-1/2 sq-nk crg

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

29

201772C1

basket cylinder tube support, hydrostatic drive 616000656 and up, 622001315 and up

1шт.

30

673599R11

ASSY, basket anti-cavitation line

1шт.

31

140573

CLAMP, basket anti-cavitation line

3шт.

32

672931R2

engine fan shield support upper

2шт.

17445R1

BOLT,Hex, 5/16" - 18 x 1 1/4"

5/16 x 1-1/4 hex-hd mach

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
