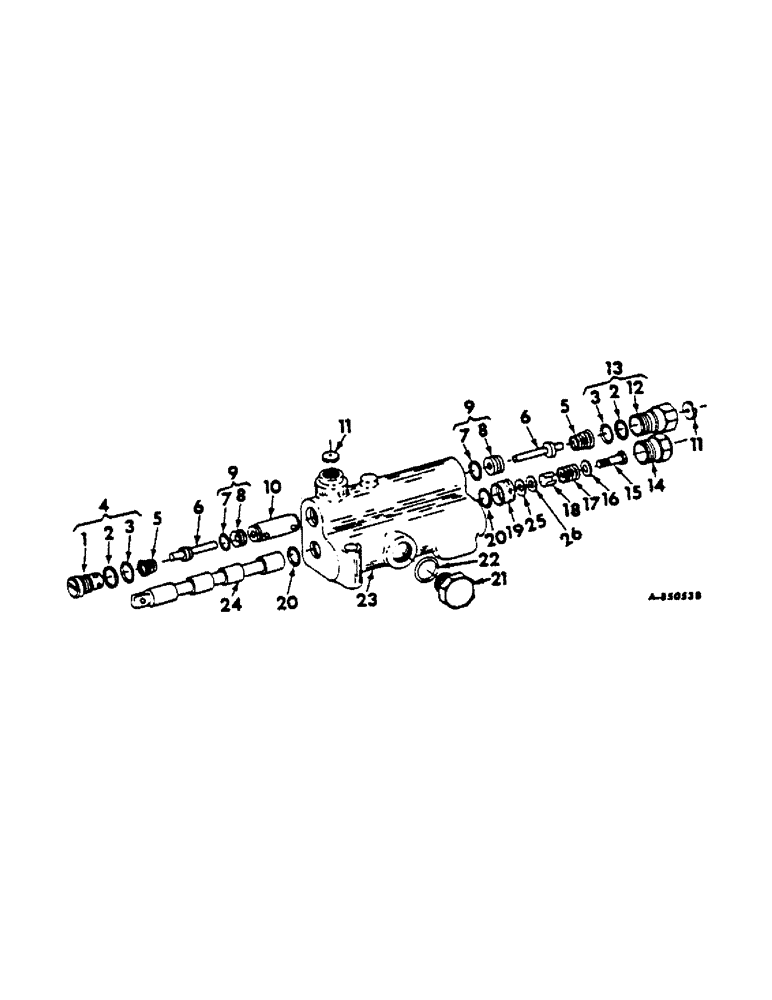

Запчасти Case IH 622 (F-05) - HYDRAULICS SYSTEM, PROPULSION CYLINDER CONTROL VALVE, BELT (07) - HYDRAULIC SYSTEM

673803R92

ASSY, propulsion control, consists of all the parts listed below

1шт.

1

NOT SERVICED SEPARATELY, order 674506R91

1шт.

2

NOT SERVICED SEPARATELY, order 674511R91

1шт.

3

NOT SERVICED SEPARATELY, order 674511R91

1шт.

4

674506R91

PLUG

ASSY

1шт.

5

674509R1

SPRING

lockout

2шт.

6

588351R91

VALVE

POPPET ASSY

2шт.

7

NOT SERVICED SEPARATELY, order 674511R91

1шт.

8

NOT SERVICED SEPARATELY, order 674505R91

1шт.

9

674505R91

SEAT

ASSY

2шт.

10

588352R1

PLUNGER

lockout

1шт.

11

201502C1

orifice, replaces 674508R1

2шт.

12

NOT SERVICED SEPARATELY, order 674507R91

1шт.

13

674507R91

PLUG

ASSY, port adaptor

1шт.

14

674493R91

CAP

ASSY

1шт.

15

674491R1

SCREW

1шт.

16

673628R1

WASHER

replaces 674495R1

1шт.

17

674490R1

SPRING

spool center

1шт.

18

674492R1

SPACER

1шт.

19

674775R1

BUSHING

replaces 674494R1

1шт.

20

NOT SERVICED SEPARATELY, order kit, 674511R91

1шт.

21

598424R1

replaces 674510R91

1шт.

22

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

.644 x .818 x .087

1шт.

23

NOT SERVICED SEPARATELY, order 673803R91

1шт.

24

NOT SERVICED SEPARATELY, order 673803R91

1шт.

25

824545C1

WASHER

1шт.

26

202649C1

SPRING WASHER

1шт.

674511R91

major seal repair, consists of (2) poppet assemblies, (7) o-rings, (2) back-up washers

1шт.
