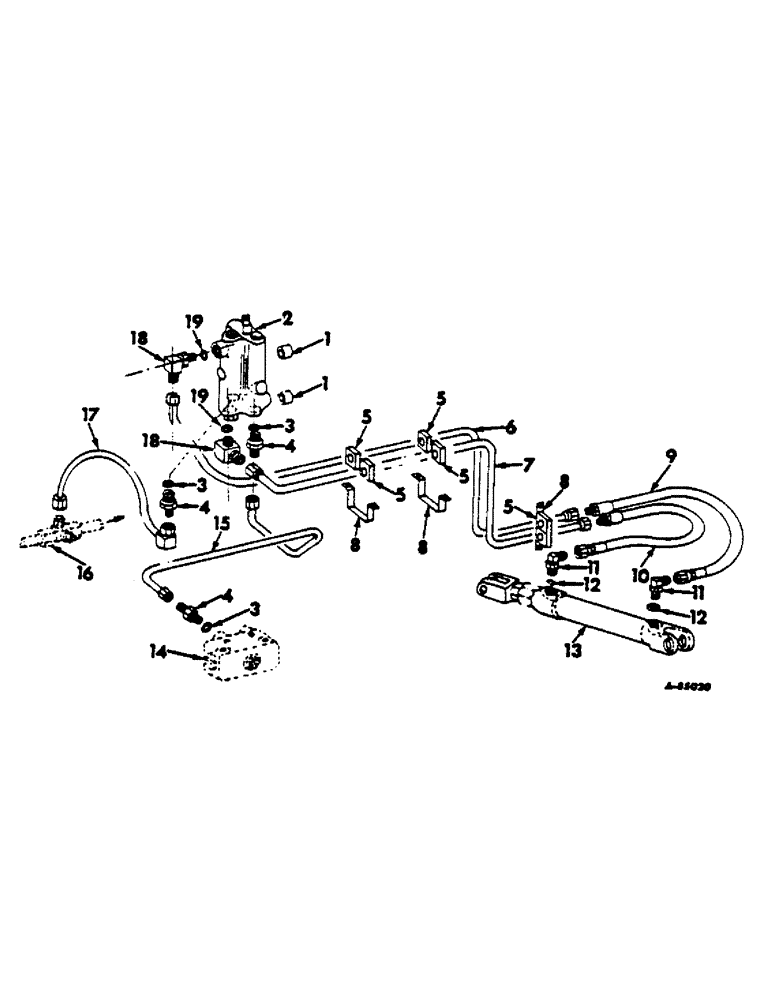

Запчасти Case IH 622 (F-04) - HYDRAULICS SYSTEM, HYDRAULIC PROPULSION CONTROL, BELT DRIVE (07) - HYDRAULIC SYSTEM

1

898592R1

SPACER, propulsion valve mounting

2шт.

2

673803R92

ASSY

1шт.

17717R1

BOLT, 1/4 x 4 hex-hd mach

2шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, , See section F propulsion control valve 1/4"

1шт.

3

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

.644 x .818 x 5/64

2шт.

4

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 3/4-16 37 deg hyd flared tube short swivel

3шт.

5

673386R1

3/8 to 1/2 hydraulic line

6шт.

6

67316R11

TUBE ASSY, propulsion inner

1шт.

7

673415R11

ASSY, propulsion outer

1шт.

8

673385R1

CLAMP

hydraulic line

3шт.

17410R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 hex-hd mach

6шт.

109084

NUT,1/4"-20, G5

6шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

9

673421R1

HOSE

ASSY, hyd ground drive long

1шт.

10

673420R1

ASSY, hyd ground drive short

1шт.

11

671796R1

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

w/o-ring, locknut and washer, 7/8-14 x 9/16-18 37 deg hyd flared tube 90 deg, replaces 673422R1

2шт.

12

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

2шт.

13

396662R91

ASSY, propulsion control, see section F propulsion control cylinder

1шт.

580714R1

HEADED PIN,1" x 2 3/4"

1 x 2-3/4 std-hd

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

14

673194R91

flow, for components see list of parts under flow divider, this section

1шт.

15

673405R11

ASSY, flow divider to propulsion valve

1шт.

16

673396R1

return line, see section F hydrualic drum control

1шт.

17

673399R11

ASSY, propulsion valve return

1шт.

18

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg hyd flared tube adj str thd 90 deg

2шт.

19

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.
