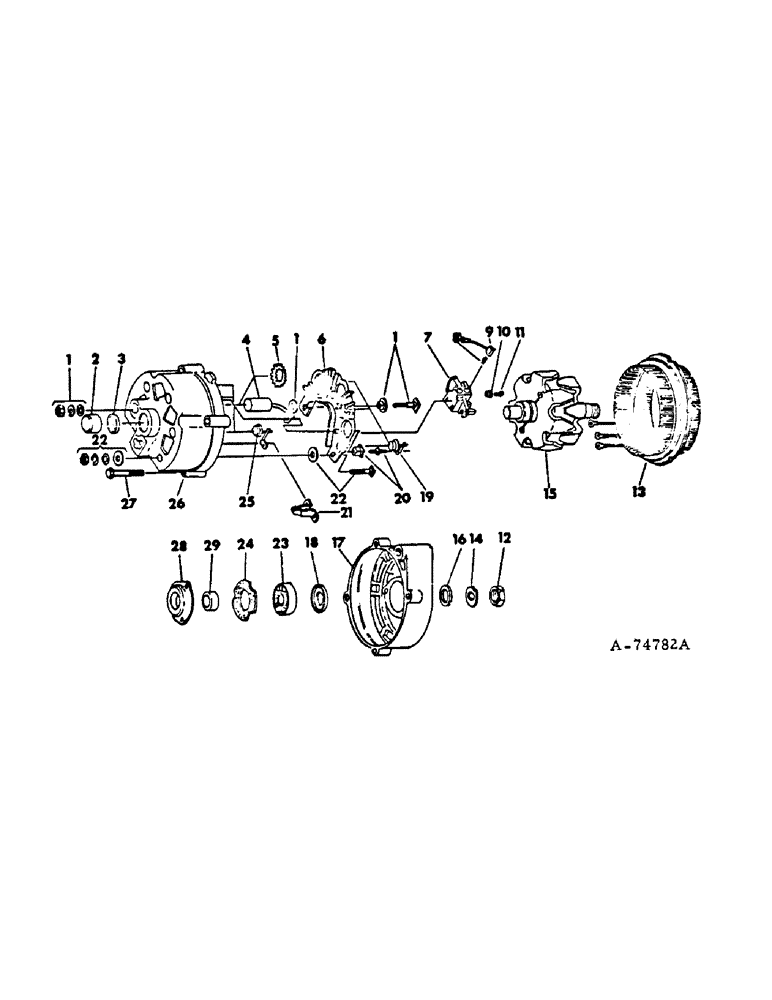

Запчасти Case IH 622 (G-04) - ELECTRICAL SYSTEM, ALTERNATOR GENERATOR, DELCO-REMY (06) - ELECTRICAL SYSTEMS

1100791

GENERATOR

ALTERNATOR GENERATOR ASSY, order 1100778

1шт.

1100778

SPARE PART ALTERNATOR GENERATOR ASSY

1шт.

103805A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 55 ampere

1шт.

103805A1C

CORE-ALTERNATOR

Return Number

1шт.

1

1959833

TERMINAL CONNECTOR

PACKAGE, ground

1шт.

2

423649C91

BALL BEARING

slip end roller

1шт.

3

1961323

SEAL

RETAINER, w/felt, slip ring end for use w/1100791

1шт.

4

1959455

CAPACITOR

1шт.

1959523

SPARE PART capacitor screw insulator

1шт.

132768

SCREW,Sl Rnd Hd, #8 - 32 x 3/4"

capicator terminal

1шт.

5

1960750

VALVE SPRING

capicator

1шт.

6

1959828

PACKAGE

HEAT SINK ASSY, for use w/1100791

1шт.

7

1964682

HOLDER

ASSY, brush & spring

1шт.

8

NOT SERVICED SEPARATELY

1шт.

9

NOT SERVICED SEPARATELY

1шт.

10

1959389

INSULATOR

capacitor screws, for use w/1100791

1шт.

10

1847993

INSULATOR, capicator screw, for use w/1100778

1шт.

11

1957501

SCREW

brush holder attaching

2шт.

1847993

WASHER, brush holder screw spring

2шт.

12

1915172

NUT

drive end shaft

1шт.

13

1962025

COIL

STATOR ASSY

1шт.

14

1941978

WASHER

drive end shaft lock

1шт.

15

1891201

ROTOR

ASSY

1шт.

16

1959991

COLLAR

drive end outside spacer

1шт.

17

800135

FUNNEL

FRAME drive end

1шт.

18

800832

WASHER

SLINGER, grease

1шт.

19

1852929

RECTIFIER

DIODE, positive

3шт.

20

1959834

TERMINAL STRIP

PACKAGE, diode junction

3шт.

21

NOT USED IN THIS APPLICATION

1шт.

22

1959832

TERMINAL STRIP

PACKAGE, battery

1шт.

23

539103R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

drive end ball

1шт.

24

1912008

FELT

GASKET, bearing retainer plate

1шт.

25

1852928

DIODE

negative

3шт.

26

1852934

COVER ASSY

FRAME W/NEGATIVE DIODE, bearing retainer & condenser, for use w/ 1100791

1шт.

26

1964858

FRAME ASSY, slip ring end & head singk, for use w/1100778

1шт.

27

1956975

BOLT

BOLT, thru

4шт.

28

1955494

PLATE

RETAINER ASSY, drive end bearing

1шт.

1965104

HOSE

attaching

3шт.

29

1963139

COLLAR CLAMP

drive end inside spacer, for use w/1100791

1шт.
