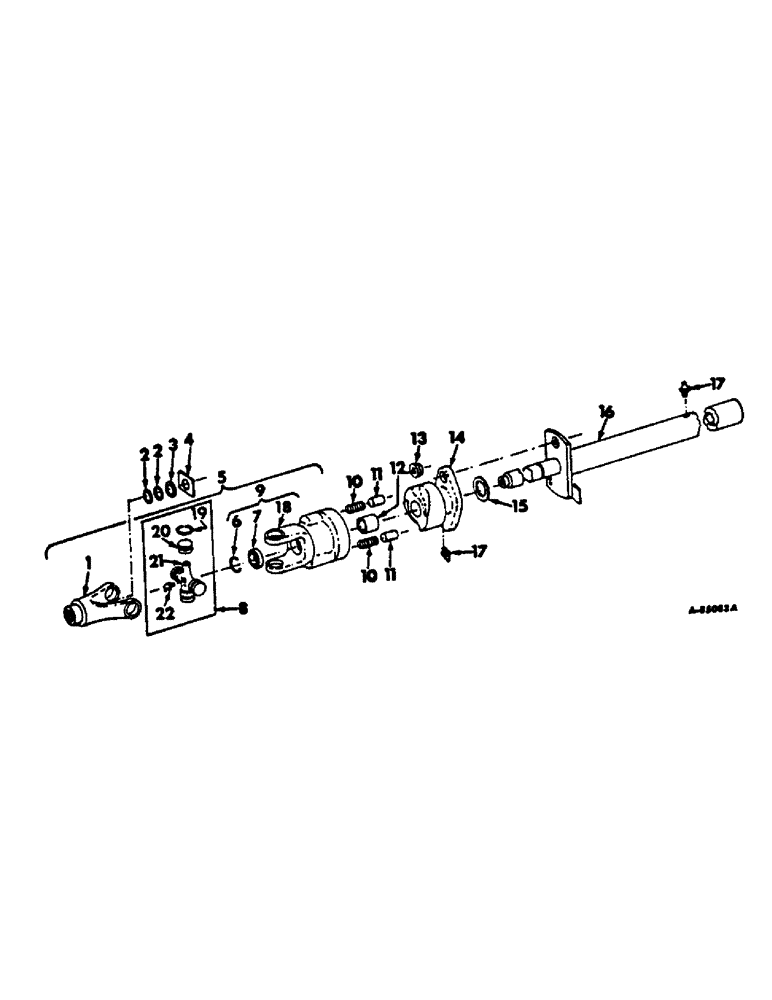

Запчасти Case IH 622 (B-19) - POWER TRAIN, DRUM DRIVE FRONT HALF SHAFT, HYDROSTATIC DRIVE (03) - POWER TRAIN

1

656798R1

YOKE

2шт.

2

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32

4шт.

3

669017R1

GASKET

gear box

2шт.

4

10176RA

WASHER

knuckle retainer

2шт.

271583

SUPPORT

5/8-18 x 1-1/2 hex-hd cap

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

5

674953R91

SHAFT

YOKE ASSY, includes Ref. no. 12

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

21741R1

WASHER

13/32 x 7/8 x 11 ga C-Z

2шт.

6

273026R1

SNAP RING,1.375", Int, #137

Ring, Snap, 1.375", Int, #137

2шт.

7

200466C91

BALL BEARING,17 mm ID x 35 mm OD x 10 mm

2шт.

8

200464C91

PACKAGE

KIT, cross service

2шт.

9

200463C91

FLANGE

YOKE ASSY

2шт.

10

674962R1

SPRING

clutch

4шт.

11

674956R1

PIN

clutch

4шт.

12

200465C1

BUSHING

2шт.

13

674955R1

BUSHING

shear bolt flanged

2шт.

14

674954R21

PLATE ASSY, clutch dog

2шт.

15

674957R1

WASHER

shear bolt

2шт.

16

674952R1

ASSY, tube and sleeve 27.625" Length

2шт.

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

17

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 str tap, lub

4шт.

18

NOT SERVICED SEPARATELY, order 200463C91

1шт.

19

576420R1

RING

bearing retainer

8шт.

20

200528C91

BEARING ASSY

ASSY, needle cup

8шт.

21

NOT SERVICED SEPARATELY, order 200464C91

1шт.

22

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 ptf 65 deg angle lub

2шт.
