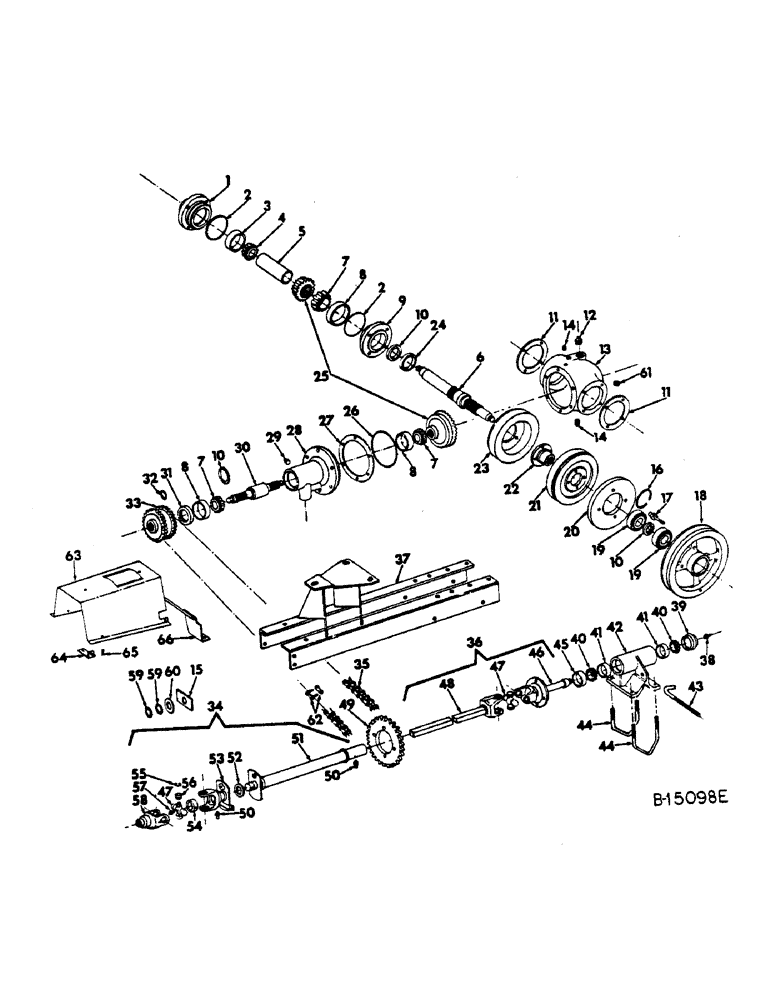

Запчасти Case IH 622 (B-16) - POWER TRAIN, DRUM DRIVE AND SUPPORTS (03) - POWER TRAIN

1

672951R1

drum drive gear box

1шт.

297330R1

BOLT

SCREW, 3/8-16 x 1 hex-hd cap nylock

4шт.

2

347360R1

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

3-1/4 x 3-7/16 x 3/32

2шт.

3

642954R1

BEARING ASSY,1" ID x 2.441" OD x 0.8125"

BOLT, drum drive pulley

1шт.

4

M42007

BEARING, ROLLER

ASSY, drum drive pinion cone

1шт.

5

672965R1

drum drive pinion

1шт.

6

672963R1

drum drive input

1шт.

70120D

SLOTTED NUT,7/8"-14

7/8-14 slt-hex

2шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

PO12898

WASHER

29/32 x 1-1/2 x 11 ga

1шт.

52079D

29/32 x 1-3/4 x 1/4

1шт.

7

560953R91

BEARING ASSY,1.375" ID x 2.875" OD x 0.9688"

ASSY, drum drive gear

3шт.

8

560954R1

BEARING ASSY,1.37525" ID x 2.8755" OD x 0.9688"

drum drive gear cup, replaces 165964R1

3шт.

9

672952R1

drum drive gear bearing

1шт.

313756R1

BOLT (SPREADER),Pan, M8 x 18mm

SCREW, 3/8-16 x 1-1/4 hex-hd cap nylock

4шт.

10

672967R1

drum drive pulley

3шт.

11

673358R91

PACKAGE

KIT, gear box small shim

1шт.

12

668076R1

2 sq-hd pipe vented

1шт.

13

674403R1

HOUSING

CASE, drum drive, replaces 629439R1

1шт.

20030R1

BOLT

SCREW, screw, 3/8-16 x 1/2 hex-hd cap nylock

1шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

5/8-11 x 1-1/4 hex-hd cap

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

21471R1

WASHER

21/32 x 1 x 11 ga C-Z

2шт.

14

445671

PLUG,Sq Hd, 1/8"-27 NPTF

1/8-27 automotive sq-hd pipe

2шт.

15

10176RA

WASHER

BOLT, knuckle retainer

2шт.

14-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

5/8-18 x 1-1/2 hex-hd cap, Fine Thread

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

16

560819R1

SNAP RING,#283, 3.009", Int, Spiral

drum drive upper retaining

1шт.

17

203116C91

STUD, cable service package

4шт.

672630R2

STUD

drum drive

1шт.

102637

NUT,1/2"-13, G5

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

21796R1

WASHER

21/32 x 1 x 16 ga C-Z (or as required)

8шт.

203034C1

CABLE ASSY, (or as required)

8шт.

18

672986R1

drum drive upper

1шт.

19

613174R91

BALL BEARING,35 mm ID x 72 mm OD x 25 mm

ASSY, drum pulley spacer inner

2шт.

20

672633R1

SHIELD

ARMATURE, clutch

1шт.

21

672634R1

SHIELD

MOTOR, fan electric clutch

1шт.

22

672966R1

rotor

1шт.

17425R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 hex-hd mach

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

23

672635R91

CLUTCH

FIELD, fan electric

1шт.

24

673833R91

pinion shaft oil, replaces 673705R91

1шт.

25

673171R91

ASSY, drum drive pinion

1шт.

26

290064R1

RING

6-1/4 x 6-1/2 x 1/8 replaces 161067R1

1шт.

27

673359R91

KIT

gear box large shim

1шт.

28

672956R1

drum drive gear

1шт.

297330R1

BOLT

3/8-16 x 1 hex-hd cap nylock

6шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

5/8-11 x 1-1/2 hex-hd cap

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21471R1

WASHER

21/32 x 1 x 11 ga C-Z

1шт.

29

445673

PIPE PLUG,Sq Hd, 3/8"-18 NPTF

3/8-18 automotive sq-hd pipe

1шт.

30

672960R1

drum drive gear

1шт.

70121D

NUT

1-14 slt-hex.

2шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

615227R1

WASHER

1-1/32 x 1-3/4 x 11 ga

2шт.

31

673834R91

SEAL

drum drive pulley oil, replaces 672962R91

1шт.

32

368109R1

O-RING,1.239" ID x 0.07" Width

1-1/4 x 1-3/8 x 1/16, drum drive shaft

1шт.

33

673185R1

SPROCKET ASSY.

drum drive

1шт.

34

672978R91

ASSY, drum drive front half, belt drive, 616 501M thru 519M, 622 501M thru 604M

2шт.

34

674786R91

ASSY, drum drive front half, belt drive, 616 520N up, 622 605N up

2шт.

SHAFT ASSY, drum front half, hydrostatic drive, for component parts see drum drive front half shaft in section B

2шт.

35

674991R2

CHAIN (AG)

ASSY, drum drive, for 616 cotton picker

1шт.

35

672983R2

CHAIN (CE)

drum drive, for 622 cotton picker

1шт.

36

SHAFT ASSY, drum drive rear half, not for service, for service order Ref. no. 46, 47 (2), 48, 55 (8), 56 (8), and 57 (2)

2шт.

70120D

SLOTTED NUT,7/8"-14

7/8-14 slt-hex.

2шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

615196R1

WASHER

29/32 x 1-3/4 x 11 ga

2шт.

37

672968R91

ASSY, drum & fan drive support

1шт.

17448R1

BOLT (SPREADER)

1/2 x 1-1/4 hex-hd mach

4шт.

17550R1

BOLT,Hex, 1/2"-13 x 2 1/4", G2

1/2 x 2-1/4 hex-hd mach

4шт.

102637

NUT,1/2"-13, G5

8шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

38

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 str self tap, lub

2шт.

39

673323R1

CAP

drum drive carrier

2шт.

40

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

ASSY, drum drive countershaft

4шт.

41

651817R1

BEARING CUP

drum drive countershaft

4шт.

42

672975R1

countershaft

2шт.

17576R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

1/3 x 2-1/2 hex-hd mach

8шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

43

672977R1

drum chain adjusting

2шт.

231-1408

LOCK NUT,1/2"-13, GB

1/2-13 esna stop

2шт.

44

201835C1

countershaft carrier, replaces 672976R1, if 672976R1 is required order 2 u-bolts 201835C1

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

45

666628R91

OIL SEAL

drum drive countershaft oil

2шт.

46

673153R91

SHAFT

ASSY, yoke, flange &

2шт.

47

669564R91

CROSS

KIT, cross service

4шт.

48

673152R91

SHAFT

ASSY, yoke & rectangular

2шт.

49

672984R1

SPROCKET ASSY.

30 tooth 3/4 pitch drum driven

2шт.

102635

NUT,3/8"-16, G5

8шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

50

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, .194 str drive type lub

2шт.

51

673151R91

SHAFT ASSY, tubular, 161 501M thru 519M, 622 501M thru 604M

2шт.

51

674787R1

ASSY, tubular drive, belt drive, 616520N up, 622 605N up

2шт.

179801

BOLT,Hex, 1/4" - 20 x 1 1/2", Gr 5

2шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

52

665264R1

shear bolt, belt drive

2шт.

53

666235R91

ASSY, flanged, belt drive

2шт.

54

665265R1

RING, thrust, belt drive

2шт.

21649R1

LOCK PIN,1/4" x 1 1/2", Slotted

Pin, 1/4" x 1 1/2", Slotted

2шт.

55

661657R1

RING

snap

16шт.

56

669565R91

CAP

BEARING ASSY, cross

16шт.

57

109480

NIPPLE, LUBE

FITTING, 1/2-28 ptf 65 deg angle lub

4шт.

58

659048R1

2шт.

59

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32

4шт.

60

669017R1

GASKET

gear box

2шт.

61

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, Slotted, Headless, 1/8" NPT

1шт.

62

201117C1

LINK

drum drive chain connections

2шт.

63

216337C1

ASSY, drum drive

2шт.

64

204755C1

ASSY, shield retainer

2шт.

65

480523R1

HAIR PIN COTTER

quick attachable

2шт.

66

204757C1

ASSY, drive shaft shield LH

1шт.

66

204758C1

ASSY, drive shaft shield RH

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

4шт.
