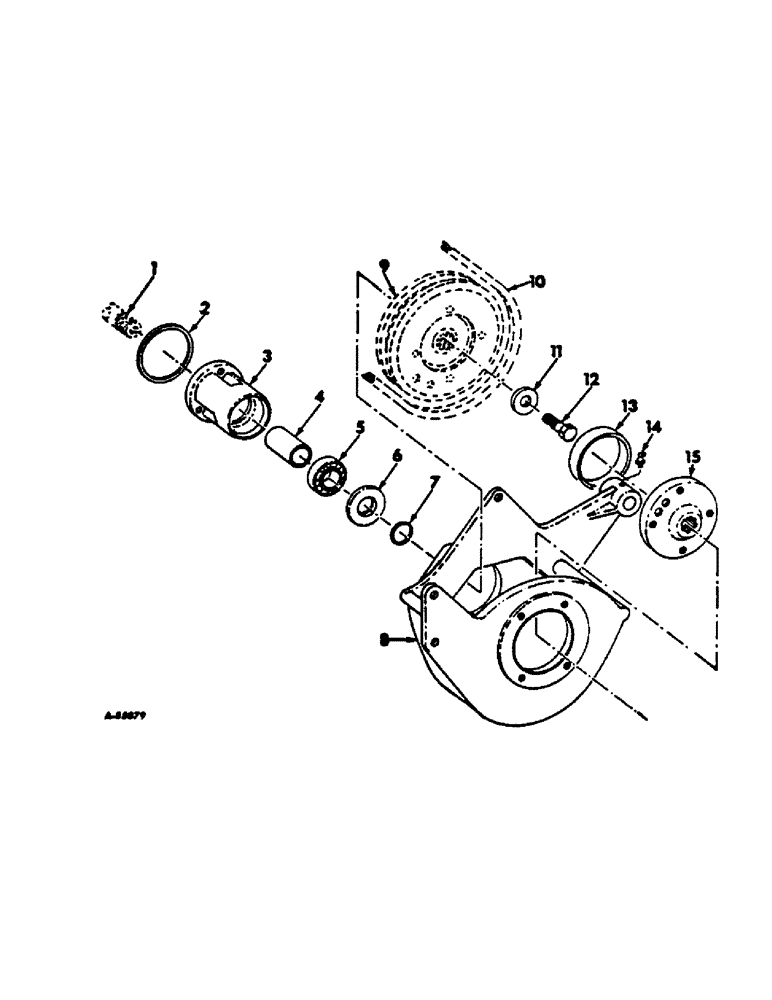

Запчасти Case IH 622 (B-08) - POWER TRAIN, DRUM DRIVE AND MOTOR MOUNT, HYDROSTATIC DRIVE (03) - POWER TRAIN

1

SHAFT, input pinion, see section B axle transmission

1шт.

2

574983R1

GASKET

motor adapter, 616 000656 and up, 622 001315 and up

1шт.

2

379447R1

RING

clutch shaft brg cap sq seal, 616 000655 and below, 622 001314 and below

1шт.

3

403871R1

CARRIER

input shaft

1шт.

379446R1

SCREW,Hex, 3/8" - 16 x 1 3/8", W/ Nylon Pellet

W/NYLON PELLET, 3/8-16 x 1-3/8 hex-hd cap

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

4

403872R1

input shaft

1шт.

5

ST291

BEARING, BALL,35mm ID x 80mm OD x 21mm W

carrier input shaft

1шт.

6

401450R91

SEAL

carrier, input shaft oil

1шт.

7

368109R1

O-RING,1.239" ID x 0.07" Width

drum drive sprocket, 1-1/4 x 1-3/8 x 1/16

1шт.

8

403870R1

HOUSING, motor adapter

1шт.

376107R1

BOLT,Hex, 7/16" - 14 x 1 1/4", W/ Nylon Pellet

SCREW W/NYLON PELLET, 7/16-14 x 1-1/4 hex-hd cap

7шт.

9

PULLEY, drum drive, see section B drum drive pulley and idler

1шт.

10

BELT, drum drive, see section B drum drive pulley and idler

1шт.

11

674669R1

input shaft

1шт.

12

27908R1

BOLT,1/2" x 1 1/4", Gr 8

SCREW, 1/2-13 x 1-1/4 phc hex-hd cap

1шт.

13

674668R1

SPACER, drum drive pulley

1шт.

179895

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

1/2-13 x 3-1/2 hex-hd cap

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

14

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-27 ptf 90 deg angle lub

2шт.

15

674667R1

HUB

motor drive

1шт.
