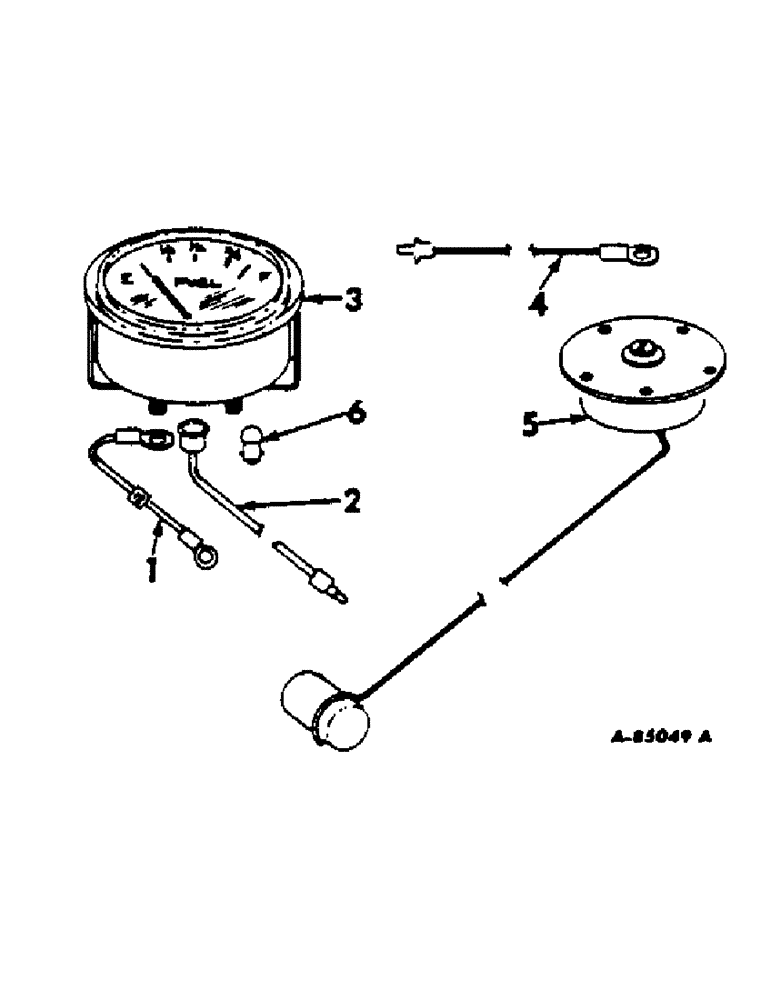

Запчасти Case IH 622 (E-11) - FUEL SYSTEM, FUEL GAUGE, GASOLINE AND DIESEL (02) - FUEL SYSTEM

674388R91

ASSY, fuel, consists of all the parts listed below

1шт.

1

662550R91

ASSY, fuel gauge to temperature gauge

1шт.

2

674392R1

ASSY, fuel gauge light

1шт.

3

674390R1

GAUGE

fuel level

1шт.

423595

SCREW,Hex Hd, #10-24 x 1/2", w/LW

10-24 x 1/2 hex-hd mach.

5шт.

4

674391R1

ASSY, fuel gauge to sending unit

1шт.

5

674389R1

GAUGE

UNIT ASSY, fuel level sending

1шт.

5

202560C1

UNIT ASSY, fuel level sending, note A

1шт.

6

A14553

BULB

LAMP, no. 57 (12 volt)

1шт.
