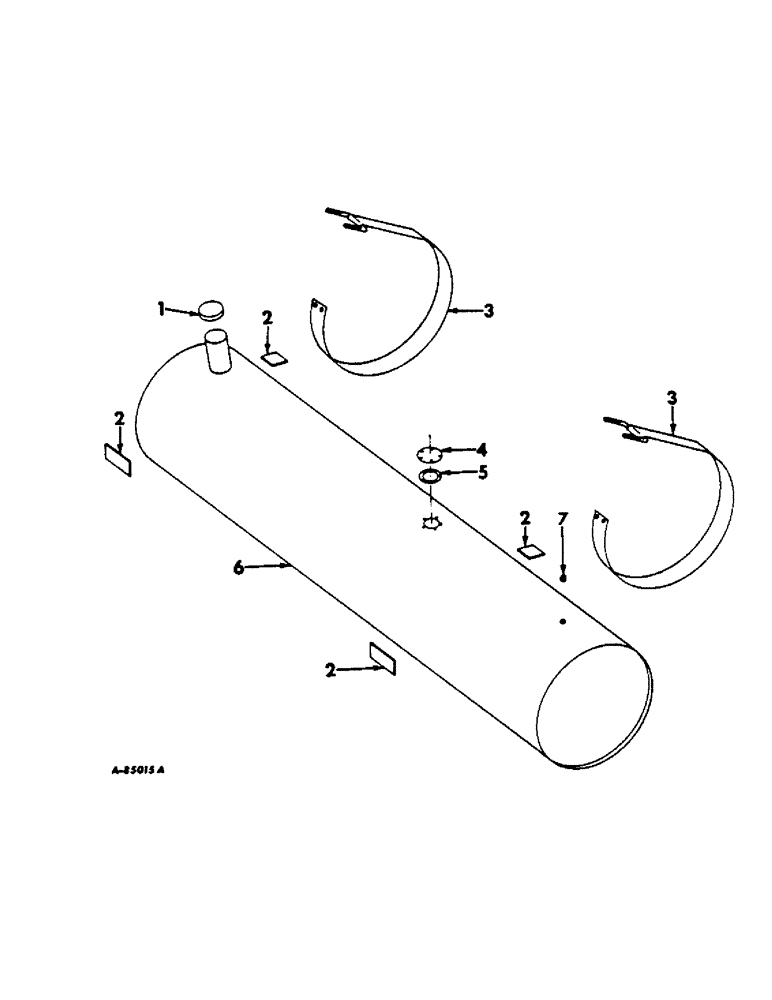

Запчасти Case IH 622 (E-09) - FUEL SYSTEM, FUEL TANK AND STRAPS, GASOLINE AND DIESEL (02) - FUEL SYSTEM

1

23995DC

FILLER CAP

fuel tank

1шт.

2

LINING, fuel tank, use 4 in. from a 50 ft. roll marked 990543R1

2шт.

2

LINING, fuel tank strap, use 2 in. 990543R1

2шт.

3

672934R11

ASSY, fuel tank

2шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 znd hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

4

369155R1

sending unit

1шт.

5

369154R1

GASKET

sending unit

1шт.

6

672933R91

ASSY, fuel

1шт.

7

444619

PIPE CLAMP

PLUG, 1/4-18 C-Z automotive hex-hd pipe, gasoline only

1шт.
