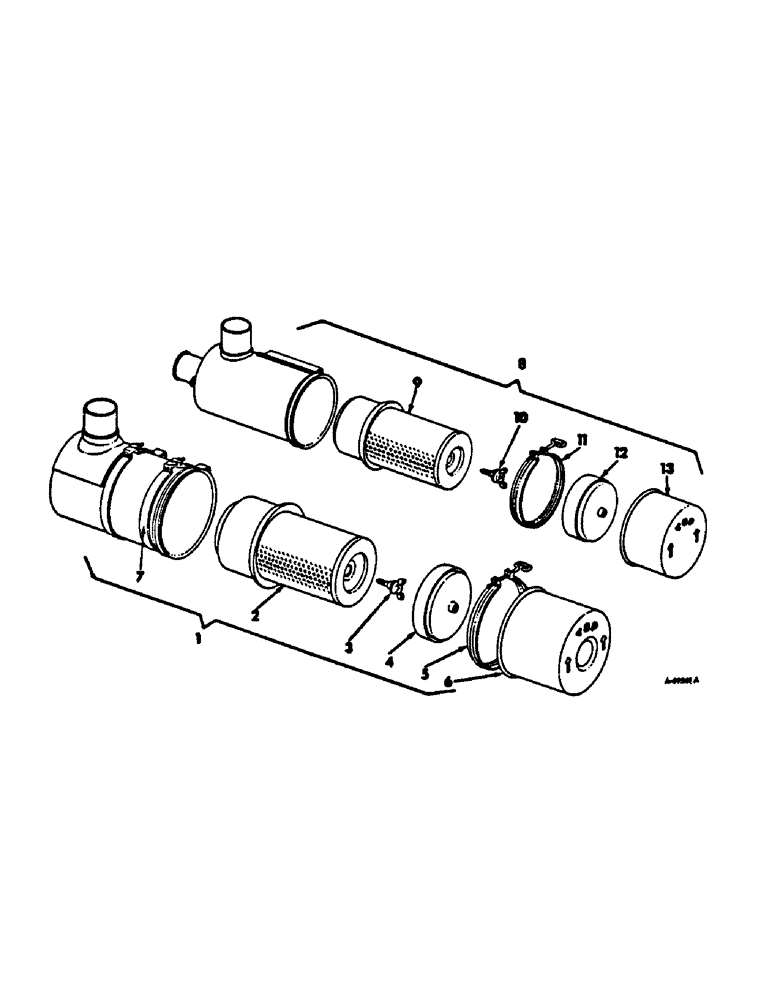

Запчасти Case IH 622 (E-02) - FUEL SYSTEM, AIR CLEANER (02) - FUEL SYSTEM

1

388025R92

ASSY, dry type air, 8 inch, less Ref. no. 7, order air cleaner, 400099R91, gasoline and LP gas engine cotton pickers w/ hydrostatic drive or diesel engine cotton pickers with belt drive

1шт.

1

396945R91

CLEANER

ASSY, dry air type, 9 in. short, less Ref no. 7, order air cleaner, 528420R91, diesel engine cotton pickers with hydrostatic drive

1шт.

444571

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

1/8-27 auto. sq-hd pipe

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

SCREW, 3/8-16 x 1 hex-hd cap

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

2

389263R92

FILTER, ELEMENT

ASSY, for air cleaner, 388025R92

1шт.

2

404192R1

ELEMENT

ASSY, for air cleaner, 396945R91

1шт.

3

389264R91

BOLT (SPREADER),Wing, 3/8" - 16, W/ Wshr, Gasket

ASSY, for air cleaner, 388025R92

1шт.

3

381342R92

WING NUT

for air cleaner, 396945R91

1шт.

4

389265R1

CUP ASSY.

SKIRT, baffle, for air cleaner, 388025R92

1шт.

4

404193R1

BAFFLE

SKIRT, baffle, for air cleaner, 396945R91

1шт.

5

59860D

CLAMP

ASSY, for air cleaner, 388025R92

1шт.

5

130879HB

CLAMP

ASSY, for air cleaner, 396945R91

1шт.

6

389266R91

ASSY, for air cleaner, 388025R92

1шт.

6

404194R1

COVER

CUP ASSY, for air cleaner, 396945R91

1шт.

7

347672R91

BAND

ASSY, air cleaner, gasoline and LP gas engine cotton pickers w/hydrostatic drive or diesel engine cotton pickers with belt drive

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3/8-16 x 3/4 hex-hd cap

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

7

346667R91

ASSY, air cleaner, diesel engine cotton pickers with hydrostatic drive

2шт.

271501

SOCKET

7/17-14 C-Z hex.

4шт.

180145

BOLT,Hex, 7/16" - 14 x 1", Gr 5

SCREW, 7/16-14 x 1 C-Z hex-hd cap

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

8

395540R91

ASSY, dry type air, 6-1/2 inch, gasoline and LP gas engine cotton pickers w/belt drive

1шт.

9

384812R93

AIR CLEANER

ELEMENT ASSY

1шт.

10

389264R91

BOLT (SPREADER),Wing, 3/8" - 16, W/ Wshr, Gasket

ASSY

1шт.

11

381339R91

CLAMP

ASSY

1шт.

12

381345R1

BAFFLE

1шт.

13

389267R91

BOWL

CUP ASSY

1шт.
