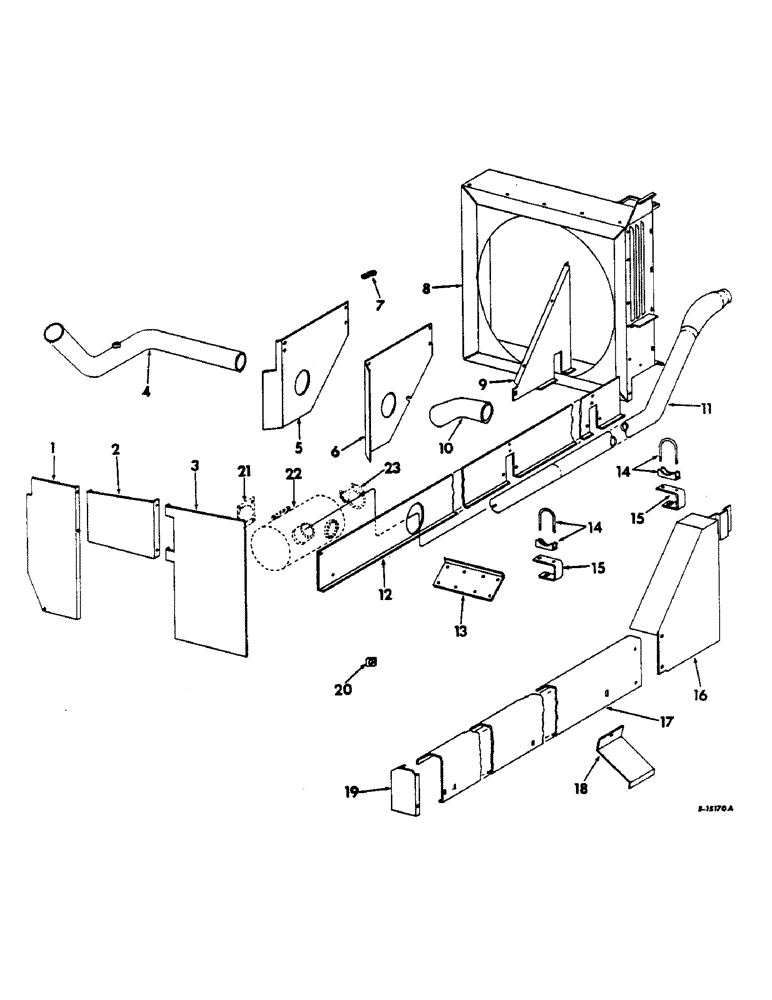

Запчасти Case IH 622 (D-04) - DIESEL ENGINE, EXHAUST SYSTEM AND SHIELDS, SERIAL NOS. 616 (01) - ENGINE

202852C91

EXHAUST SYSTEM SERIVE diesel, for replacement of complete exhaust system for machines prior to 1972 season order 202852C91

1шт.

1

202758C1

engine front RH

1шт.

2

202759C1

front tie

1шт.

3

202757C1

engine front

1шт.

4

202737C1

ASSY, intake

1шт.

5

202743C1

engine RH

1шт.

6

202741C1

engine LH

1шт.

7

135DS

1шт.

8

202762C1

ASSY, radiator fan, for gas and diesel powered 600 cotton pickers prior to 1971, package is required when 202851C91 or 202852C91 is shipped

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga. C-Z

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 znd hex-hd mach

9шт.

120376

NUT,5/16"-18, G5

9шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

9шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 znd-hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

9

202750C1

ASSY, exhaust rear inner

1шт.

10

202739C1

air cleaner inlet

1шт.

11

202761C1

tail exhaust

1шт.

12

202746C1

exhaust inner

1шт.

13

202740C1

air cleaner

1шт.

14

266316C91

ASSY, exhaust pipe

3шт.

15

202480C1

exhaust pipe

2шт.

2893R1

WASHER, 11/32 x 1 x 11 ga C-Z

2шт.

21496R1

WASHER

11/32 x 3/4 x 11 ga C-Z

4шт.

16

202752C1

ASSY, exhaust

1шт.

17

202748C1

ASSY, exhaust pipe

1шт.

18

202751C1

radius rod support

1шт.

19

202745C1

exhaust shield end

1шт.

20

483360R91

NUT

5/16-18 spring

18шт.

21

673331R2

SHIM

GASKET, exhaust muffler

1шт.

22

201930C1

MUFFLER

ASSY, exhaust

1шт.

23

266316C91

ASSY, exhaust pipe

1шт.
