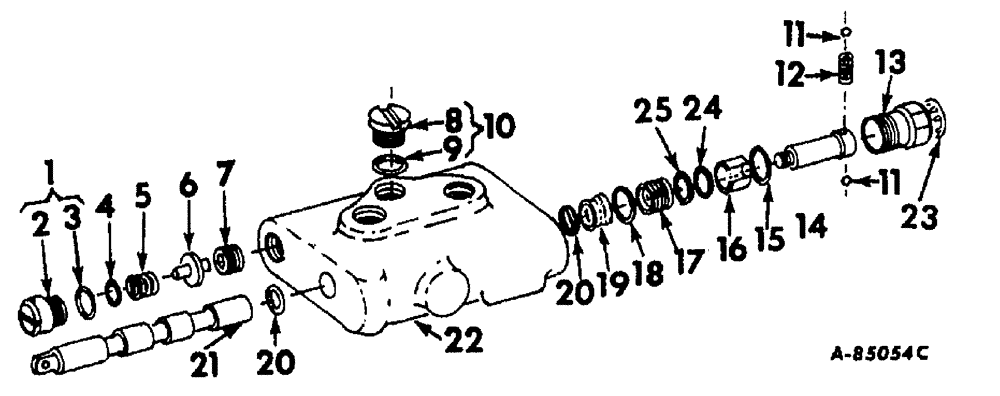

Запчасти Case IH 616 (R-35) - PICKER DRUM, DRUM CONTROL HYDRAULIC VALVE Picker Drum

673804R92

VALVE

ASSY, drum contrl, consists of the following service parts

2шт.

1

202210C91

PLUG

ASSY, relief valve, replaces 674497R91

2шт.

2

PLUG, relief valve, not serviced separately, order 202210C91

1шт.

3

O-RING, relief valve plug, not serviced separately, order 674503R91

1шт.

4

674504R1

WASHER

SHIM, or as required

2шт.

4

394655R1

WASHER

SHIM, or as required

2шт.

4

673647R1

WASHER

SHIM, or as required

2шт.

5

632843R1

SPRING

relief valve, replaces 201849C1

2шт.

6

674501R1

VALVE POPPET

POPPET, relief valve

2шт.

7

SEAT, relief valve plug, not serviced separately, order 673804R91

1шт.

8

PLUG, lift check, not serviced separately, order 201844C91

1шт.

9

O-RING, lift check plug, not serviced separately, order 674503R91

1шт.

10

201844C91

PLUG

ASSY, lift check, replaces 674489R91

2шт.

11

BALL, 5/32 dia chrome alloy, not serviced separately, order 201999C91

4шт.

12

SPRING, detent, not serviced separately, order 201999C91

2шт.

13

CAP ASSY, detent, not serviced separately, order 201999C91

1шт.

14

SCREW, detent, not serviced separately, order 201999C91

1шт.

15

WASHER, 677 OD steel, not serviced separately, order 201999C91

1шт.

16

674492R1

SPACER

2шт.

17

SPRING, spool center, not serviced separately, order 201999C91

1шт.

18

WASHER, 670 OD steel, not serviced separately, order 201999C91

1шт.

19

BUSHING, not serviced separately, order 201999C91

1шт.

20

O-RING, not serviced separately, order 674503R91

2шт.

21

SPOOL, not serviced separately, order 673804R92

1шт.

22

BODY, not serviced separately, order 673804R92

1шт.

23

PLUG, button, not serviced separately, order 201999C91

1шт.

24

824545C1

WASHER

1шт.

25

202649C1

SPRING WASHER

1шт.

674503R91

SEAL KIT

KIT, seal repair, consists of (4) o-ring (NSS)

1шт.

201999C91

KIT

1шт.

KIT, four ball detent replacement, consists of (1) bushing (NSS), (1) screw, detent (NSS), (1) cap, detent (NSS), (1) spring, spool centering (NSS), (2) springs, detent (NSS), (4) balls (NSS), (1) washer, 670 OD steel (NSS), (1) washer, 677 OD steel (NSS), (1) plug (NSS), (2) o-rings 3/32 x 1/2 ID (NSS)

1шт.
