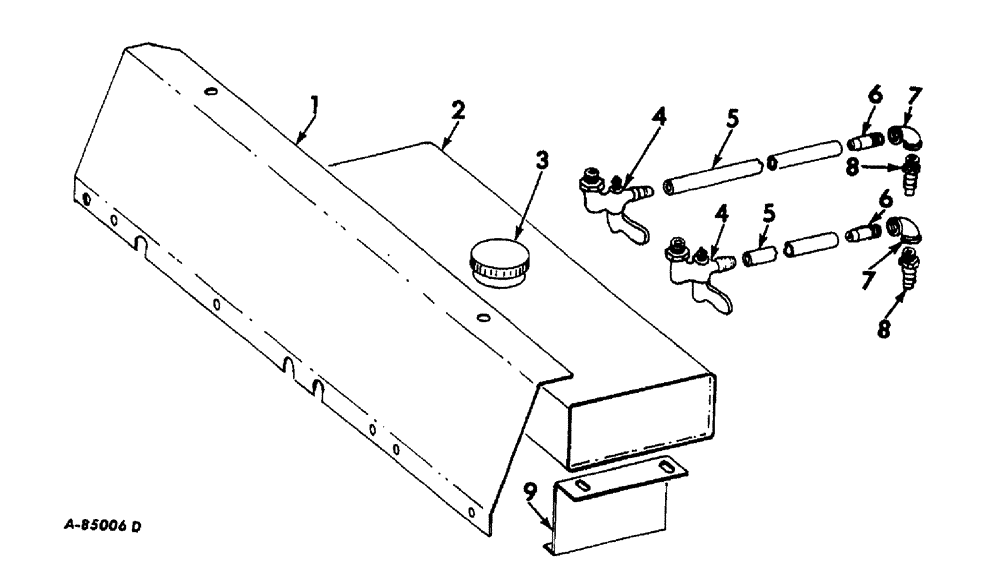

Запчасти Case IH 616 (R-22) - PICKER DRUM, OIL FLUSH TANK, STEEL, 616 000808 AND BELOW Picker Drum

1

672329R1

SHIELD, drum top LH, units A and C

1шт.

1

672330R1

SHIELD, drum top RH, units B and D

1шт.

611344R1

WASHER

11/32 x 7/8 x 16 ga C-Z

12шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

12шт.

120376

NUT,5/16"-18, G5

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

20893R1

WASHER

11/32 x 1 x 11 ga C-Z

12шт.

2

673273R91

TANK W/CAP, oil

2шт.

3

674456R1

CAP, oil tank

2шт.

4

665975R91

VALVE ASSY, oil flush

4шт.

5

HOSE, oil front rotor, use 16 inches of 1/2 ID hose from a 50 foot roll marked, 665181R1

2шт.

5

HOSE, oil rear rotor, use 22 inches of 1/2 ID hose from a 50 foot roll marked, 665181R1

2шт.

6

665253R1

NIPPLE, oil line

4шт.

7

NLS

NO LONGER SERVICED

ELBOW, 1/4 90 deg pipe

4шт.

8

669849R1

TUBE

drum oiler

4шт.

178374

SPARE PART

WASHER, 17/32 x 1-1/4 x 16 ga

4шт.

9

673223R1

BRACKET, rockshaft & tank support

4шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

2шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

6шт.

102635

NUT,3/8"-16, G5

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.
