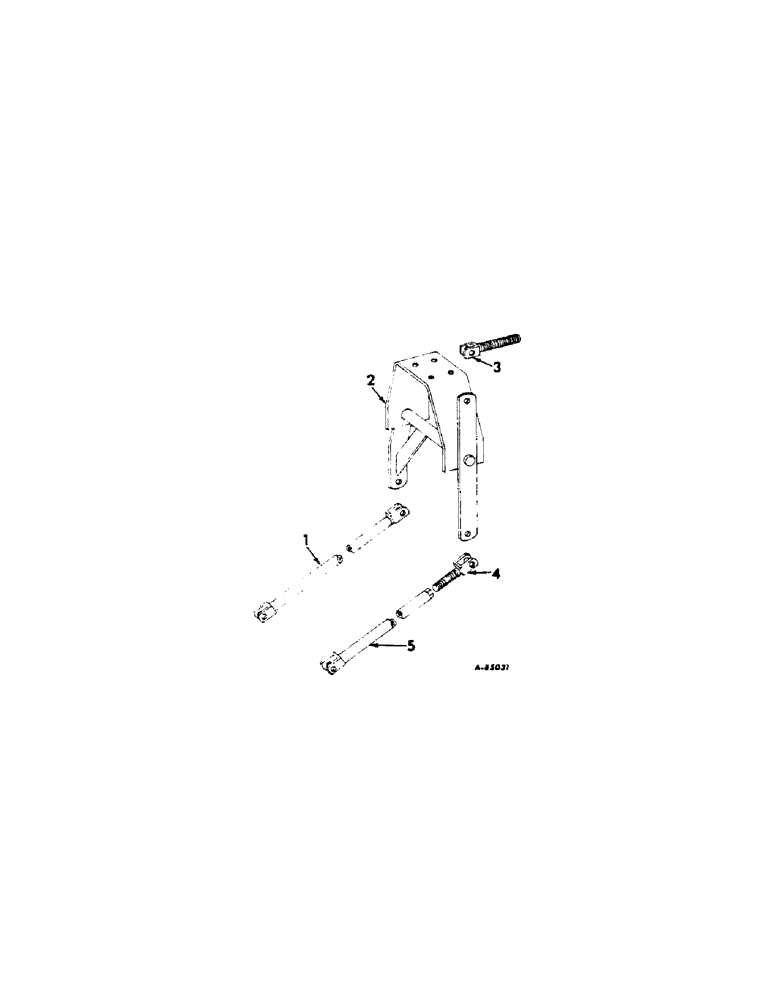

Запчасти Case IH 616 (H-17) - CONTROLS, DRUM PITCH CONTROL, BASKET CONTROL LEVER Controls

1

673084R91

ASSY, radius

2шт.

21671R1

PIN,3/4" x 2 1/8"

3/4 x 2-1/8 C-Z std-hd

4шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

4шт.

2

673077R92

ASSY, radius rod adj LH

1шт.

2

673078R92

ASSY, radius rod adj RH

1шт.

87996H

BOLT,Hex, 3/4" - 16 x 2", Gr 8

SCREW, 3/4-16 x 2 type 8 hex-hd cap

4шт.

20672R1

SCREW

3/4-16 x 1-3/4 type 8 hex-hd cap

4шт.

218404

NUT,3/4"-16, G8

3/4-16 type 8 hex.

8шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

675141R1

radius rod shaft

8шт.

3

673087R91

ASSY, radius adjumtment

2шт.

220083

NUT,1"-8, G5

1-8 hex.

4шт.

21671R1

PIN,3/4" x 2 1/8"

3/4 x 2-1/8 znp std-hd

2шт.

217973

COTTER PIN,1/4" x 1 1/4"

1/4" x 1 1/4"

2шт.

366112R1

WASHER

25/32 x 1-1/4 x 11 ga C-Z

2шт.

4

673660R1

YOKE

ROD ASSY, radius outer adj end

2шт.

426899

NUT,Jam, 1"-8, G5

1/8 hex.

2шт.

21671R1

PIN,3/4" x 2 1/8"

3/4 x 2-1/8 C-Z std-hd

2шт.

217973

COTTER PIN,1/4" x 1 1/4"

1/4" x 1 1/4"

2шт.

5

673658R1

ASSY, radius outer adj

2шт.

220083

NUT,1"-8, G5

1-8 hex.

2шт.

21671R1

PIN,3/4" x 2 1/8"

3/4 x 2-1/8 C-Z std-hd

2шт.

217973

COTTER PIN,1/4" x 1 1/4"

1/4" x 1 1/4"

2шт.
