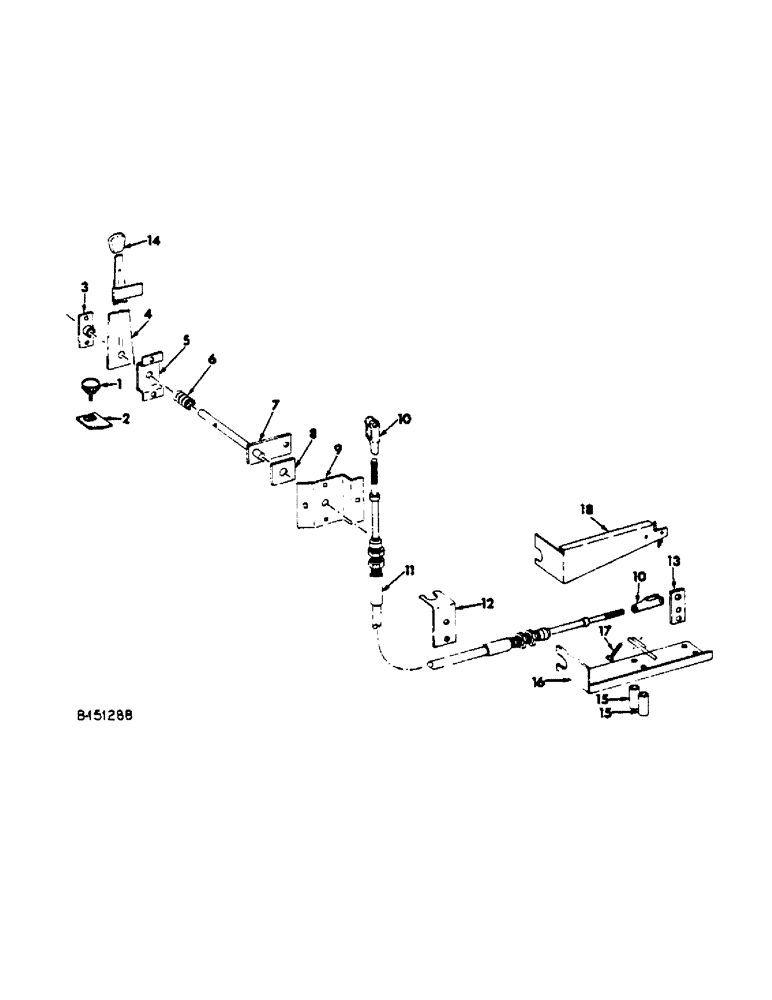

Запчасти Case IH 616 (H-14) - CONTROLS, PROPULSION CONTROL LEVER, HYDROSTATIC DRIVE Controls

1

674603R1

hydrostatic stop

1шт.

121223

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

1шт.

2

674601R1

ASSY, hydrostatic

1шт.

3

674725R1

PLATE ASSY, control support

1шт.

18404R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 5/8", Gr 2

1/4 x 5/8 sq-nk crg

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

4

674591R2

ASSY, hydrostatic

1шт.

17176R1

LOCK PIN,3/16" x 1", Slotted

Pin, 3/16" x 1", Slotted

1шт.

5

674600R1

BRACKET, spring

1шт.

18632R1

1/4 x 2-1/4 znp sq-nk crg

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

6

M74376

SPRING

hydrostatic lever

1шт.

7

674595R1

SHAFT ASSY, hydrostatic lever

1шт.

8

674599R1

WASHER

friction

1шт.

21211R1

WASHER

25/32 x 1-1/2 x 7 ga C-Z

1шт.

460908R1

WASHER

17/32 x 1-1/2 x 11 ga C-Z

1шт.

9

674598R1

hydrostatic

1шт.

18404R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 5/8", Gr 2

1/4 x 5/8 znp sq-nk crg

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

10

104037

CLEVIS

5/16 x 2-1/4 adj rod end

2шт.

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

5/16 x 31/32 C-Z rod end

2шт.

137159

COTTER PIN

3/32" x 5/8"

2шт.

124920

JAM NUT,Jam, 5/16"-24, G5

2шт.

11

674589R1

CABLE

control hydrostatic propulsion

1шт.

12

674590R1

BRACKET, hydrostatic cable upper

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znp hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

13

674588R1

LEVER, pump control

1шт.

18655R1

BOLT,Hex, 1/4"-20 x 1", G2

1/4 x 1 znp hex-hd mach

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

14

382805R1

KNOB

control

1шт.

15

N10306

pump control bracket long, replaces 21366R1, 616 CH000501 thru 000809, 622 CH000501 thru 001676

1шт.

16

674583R1

ASSY, pump control, Sundstrand

1шт.

13-444

CAPSCREW,Hex, 1/4" - 20 x 2 3/4", Gr 5

1/4-20 x 2-3/4 hex-hd cap

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

20600R1

WASHER

9/32 x 3/4 x 11 ga C-Z

4шт.

17

674587R1

SCREW, 5/16-24 x 1-1/2 znp hex-hd, cap, Serial Range: thd-hd

1шт.

120368

NUT,5/16"-24, G5

1шт.

21739R1

WASHER

11/32 x 9/16 x 16 ga C-Z

1шт.

18

216399R1

SUPPORT ASSY, speed control, Eaton

1шт.

18765R1

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 2

5/16 x 1-1/2 znd hex-hd mach

1шт.

18768R1

BOLT,Hex, 5/16"-18 x 2 1/4", G2

5/16 x 2-1/4 znd hex-hd mach

2шт.

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

5/16-18 x 2-1/4 znd hex-hd cap

2шт.

21739R1

WASHER

.344 x .562 x .054

4шт.

120368

NUT,5/16"-24, G5

1шт.
