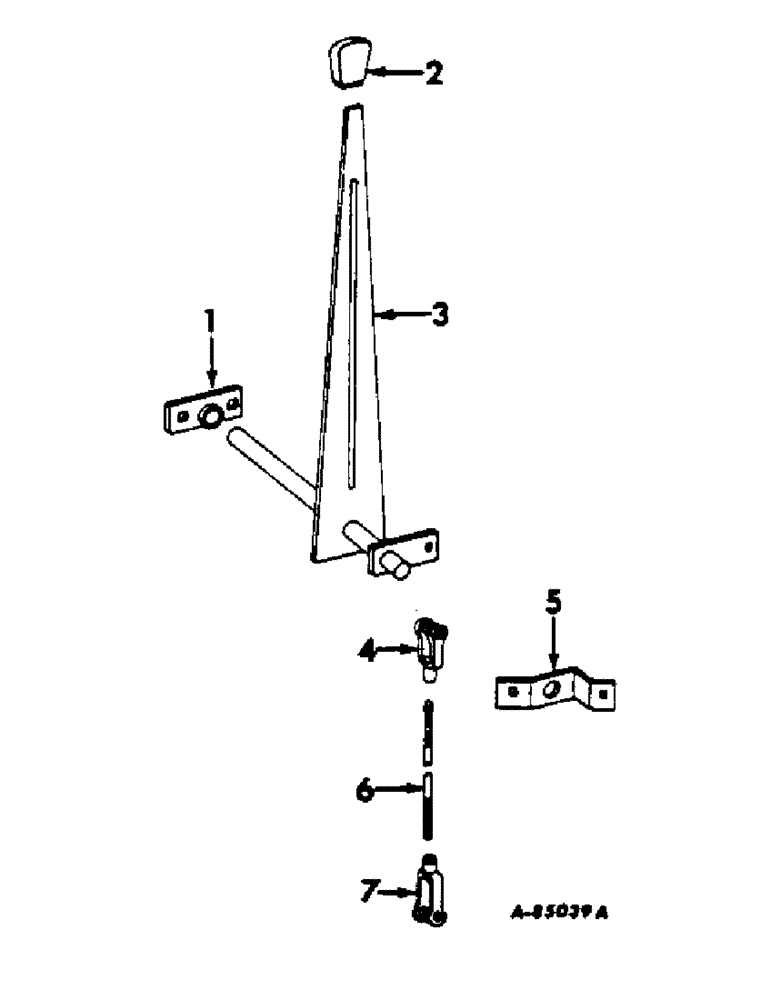

Запчасти Case IH 616 (H-13) - CONTROLS, SPEED CONTROL LEVER, BELT DRIVE Controls

1

674725R1

PLATE ASSY, control support, replaces 673096R1

1шт.

18404R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 5/8", Gr 2

1/4 x 5/8 znd sq-nk crg

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

2

382805R1

KNOB

control

1шт.

3

673471R1

ASSY, propulsion control

1шт.

4

213-315

CLEVIS

5/16-24 x 1-15/16 short adj rod

1шт.

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

5/16 x 31/32 C-Z rod end

1шт.

137159

COTTER PIN

3/32" x 5/8"

1шт.

5

673095R1

BRACKET, propulsion shaft control

1шт.

18404R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 5/8", Gr 2

1/4 x 5/8 znd s-nk crg

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

6

673901R1

propulsion control

1шт.

7

673477R1

control rod

1шт.

20286R1

SPLIT PIN/SAFETY PIN

3/16 x 1-1/32 C-Z rod

1шт.

20286R1

SPLIT PIN/SAFETY PIN

3/16 x 1-1/32 C-Z rod

1шт.
