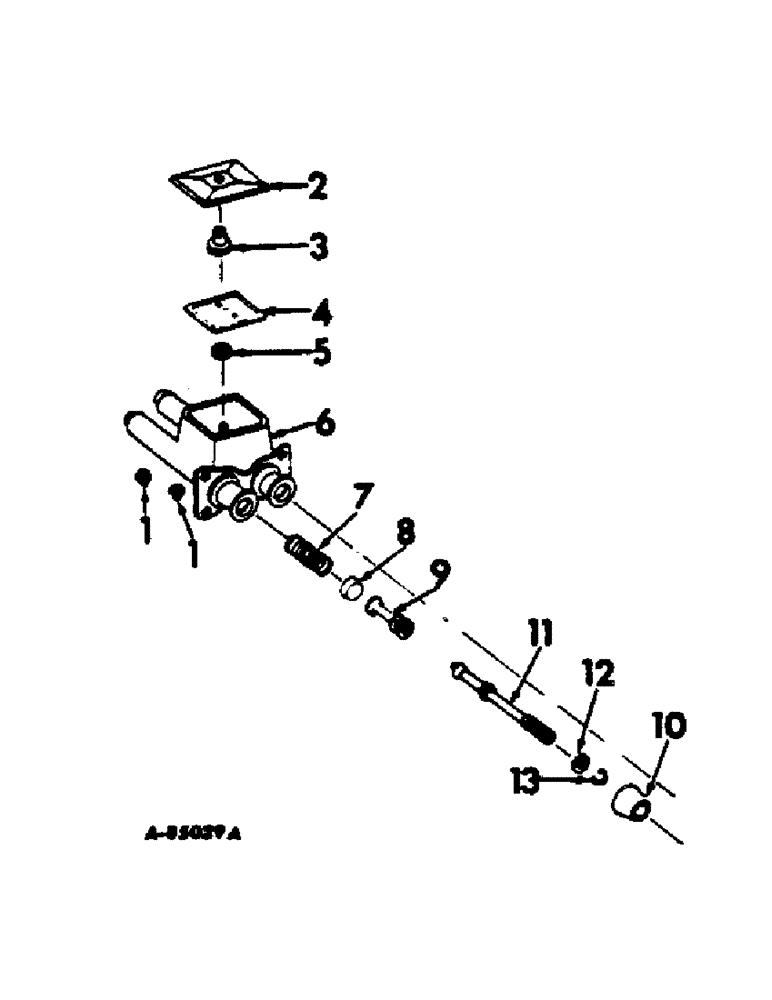

Запчасти Case IH 616 (H-12) - CONTROLS, BRAKE MASTER CYLINDER Controls

672828R91

CYLINDER

ASSY, brake master

1шт.

17446R1

BOLT,3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 hex-hd mach

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

1

284588C1

INSERT

fitting body

2шт.

2

868351R1

CAP

master cylinder filler

1шт.

180050

BOLT,Hex, 1/4" - 20 x 2 3/4", Gr 5

SCREW, 1/4-20 x 2-3/4 C-Z hex-hd cap

1шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x .065 C-Z

1шт.

3

673857R1

SLEEVE

automatic adjustor

1шт.

4

868447R1

GASKET

filler cap

1шт.

5

673856R1

X

RING, external retainer

1шт.

6

NOT SERVICED SEPARATELY, order 672828R91

1шт.

7

SPRING ASSY, piston return, not serviced separately, order kit 201594C1

2шт.

8

CUP, piston, replaces 228604R1, not serviced separately, order kit 201594C1

1шт.

9

PISTON ASSY, not serviced separately, order kit 201594C1

2шт.

10

BOOT, master cylinder, not serviced separately, order kit 201594C1

2шт.

11

965560R1

ROD

master cylinder push

2шт.

12

965561R1

RETAINER

push rod

2шт.

13

RING, master cylinder lock, not serviced separately, order kit 201594C1

2шт.

201594C1

PACKAGE

KIT, cylinder repair, consists of (2) piston assy (NSS), (2) cups (NS), (2) spring (NSS), (2) rings (NSS), (2) boots (NSS)

1шт.
