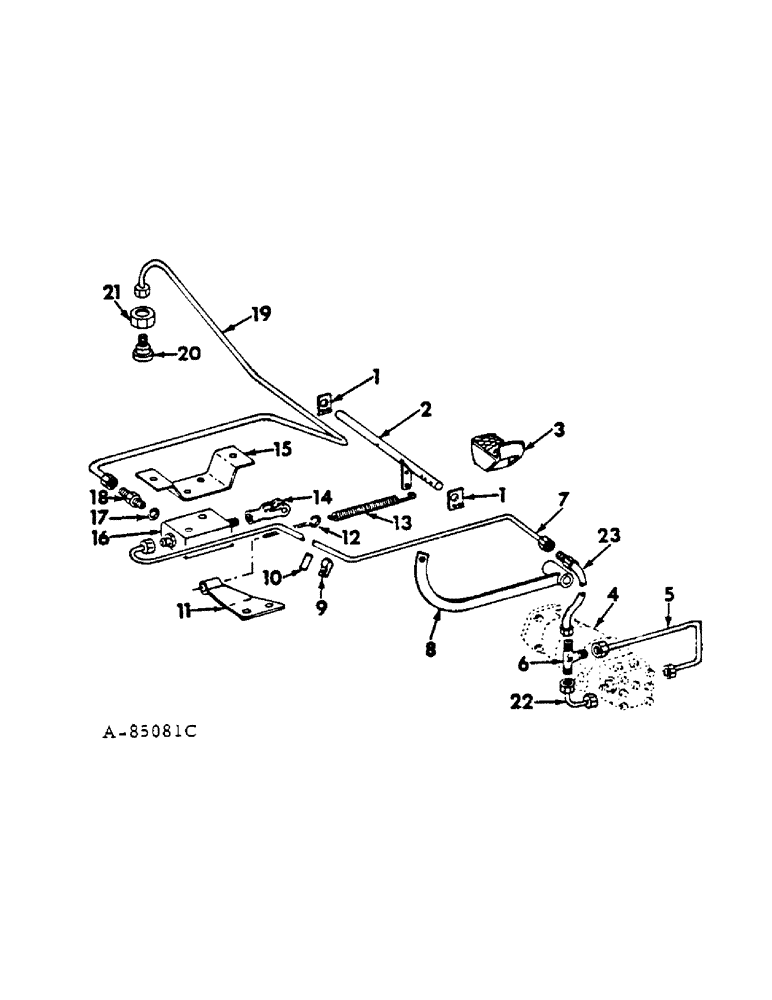

Запчасти Case IH 616 (H-08) - CONTROLS, FOOT-N-INCH PEDAL, VALVE AND LINES, HYDROSTATIC Controls

1

666016R1

clutch & brake pedal shaft

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znp hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

2

672849R93

ASSY, clutch and brake

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

2шт.

3

627510R1

PAD, clutch

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znp hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

4

HYDROSTATIC DRIVE MOTOR

1шт.

5

201114C1

TUBE ASSY, motor to tee rear, replaces 674679R11, if 674679R11 is required order 201133C11, 201114C11, 201115C11 and 9402979

1шт.

6

9402979

TEE,7/16"-20, 37 Degree

7/16-20 37 deg hyd flared three way, replaces 674682R1, if 674682R1 is required order 201113C11, 201114C11, 201115C11, and 9402979

1шт.

7

201115C11

ASSY, motor to pilot relief, replaces 674680R11, if 674680R11 is required order 201113C11, 201114C11, 201115C11 and 9402979, 616 CH501M thru 000655, 622 CH501M thru 001314

1шт.

7

201115C11

ASSY, motor to pilot relief, 616 CH000656 and up, 622 CH001315 and up

1шт.

8

672848R91

PEDAL ASSY, clutch

1шт.

21649R1

LOCK PIN,1/4" x 1 1/2", Slotted

Pin, 1/4" x 1 1/2", Slotted

1шт.

9

102869R1

CLIP

5/16 C-Z closed, replaces 192108

3шт.

10

52728D

relief tube felt, use with 192108

3шт.

11

674683R1

BRACKET ASSY, tension adjusting

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znp hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

12

S2489

BOLT, spring adjusting eye

1шт.

120376

NUT,5/16"-18, G5

1шт.

13

357832R1

SPRING

pilot relief valve return

1шт.

18781R1

BOLT,Hex, 3/8"-16 x 2", G2

3/8 x 2 znp hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

14

674674R1

CLEVIS, 3/8 rod end RH thd

1шт.

120368

NUT,5/16"-24, G5

1шт.

82635H

CLEVIS PIN,5/16" x 1 3/8"

5/16 x 1-3/8 C-Z rod end

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

15

674675R1

BRACKET, pilot relief valve

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znp sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

106969R1

WASHER

11/32 x 1-1/4 x 16 ga C-Z

2шт.

16

403347R91

LOCK VALVE

ASSY, foot-n-inch, see section F foot-n-inch valve

1шт.

18

674681R1

HYD CONNECTOR,9/16"-18, 37 Degree x 1/2"-20, O-Ring

UNION, 1/2-20 SAE 9/16-18 J.I.C.

1шт.

19

674676R11

ASSY, pilot relief to return tee

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 zhp sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

20

9403400

REDUCER,37 Degree, 1/2" x 3/8" Tube

1/2 x 3/8 hyd 37 deg flared

1шт.

21

9403528

TUBE NUT,37 Degree, 3/4"-16, Type B

3/4-16 hyd 37 deg flared tube

1шт.

22

201113C11

TUBE

ASSY, motor to tee front

1шт.

23

201903C1

HOSE

ASSY, pilot relief valve, 616 000656 and up, 622 001315 and up

1шт.

17

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.
