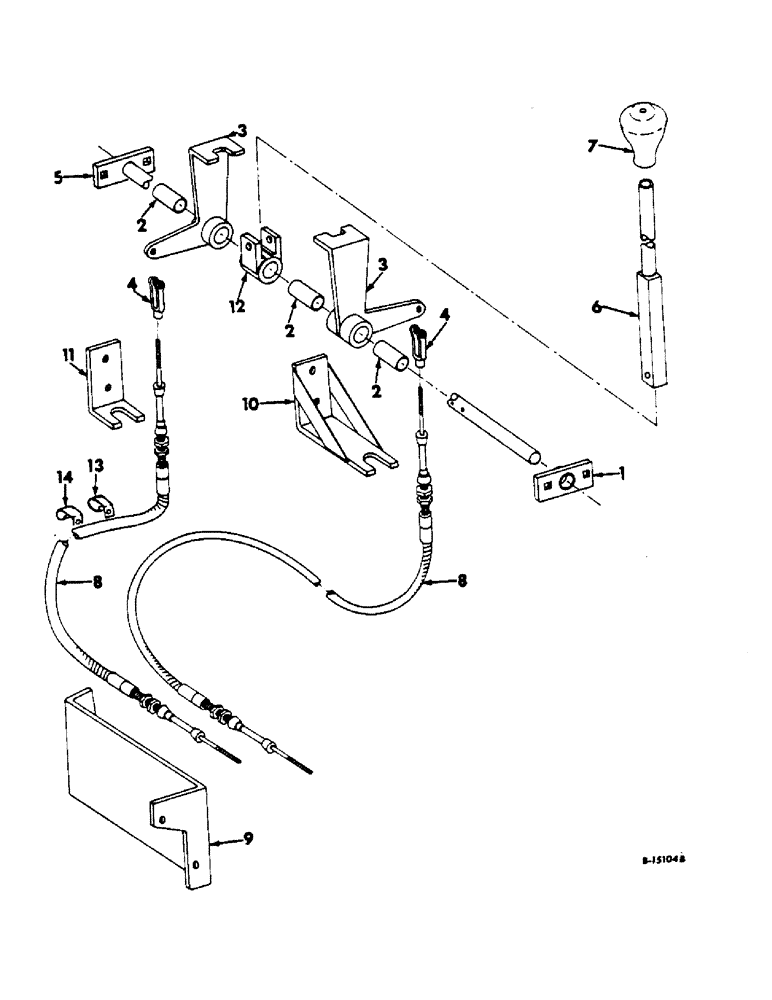

Запчасти Case IH 616 (H-05) - CONTROLS, GEAR SHIFT CONTROLS Controls

1

674727R1

PLATE ASSY, transmission support, replaces 672859R1

1шт.

12653R1

BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 3/4", G2

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

2

568920R1

BUSHING

gear shift arm, 3 for belt, drive 2 for hydrostatic drive

1шт.

3

672857R21

ASSY, gear shift, 2 for belt drive, 1 for hydrostatic drive

1шт.

4

213-315

CLEVIS

5/16-24 x 1-15/16 short adj rod end

2шт.

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

Rod end 5/16" x .940", HDN

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

114493

JAM NUT,Jam, 5/16"-24, G5

6шт.

5

672858R92

ASSY, transmission shifter

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

4шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

12653R1

BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 3/4", G2

2шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

6

672855R91

ASSY, transmission shifter

1шт.

7

673675R1

gear shift lever

1шт.

8

672861R91

CABLE

ASSY, transmission shifter, 2 for belt drive 1 for hydrostatic drive

1шт.

9

672863R1

transmission cable support lower

1шт.

21282R1

BOLT

SCREW, 3/8-16 x 1-1/2 hex-hd mach w/nylon pellet insert

2шт.

127507H

WASHER

13/32 x 7/8 x 7 ga

2шт.

10

672864R91

ASSY, shifter cable support upper long, belt drive

1шт.

109084

NUT,1/4"-20, G5

2шт.

14989R1

BOLT, 1/4 x 5/8 sq-nk crg

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

11

672862R1

shifter cable support upper short

1шт.

14989R1

BOLT, 1/4 x 5/8 sq-nk crg

2шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

12

157360C11

ARM

PIVOT ASSY, gear shift lever, replaces 564520R11

1шт.

23301R1

LOCK PIN,5/16" x 1 1/4", Slotted

Pin, 5/16" x 1 1/4", Slotted

1шт.

13

371035R1

CLIP

transmission shift cable, belt drive

2шт.

14

363502R1

transmission shift cable, hydrostatic drive

2шт.
