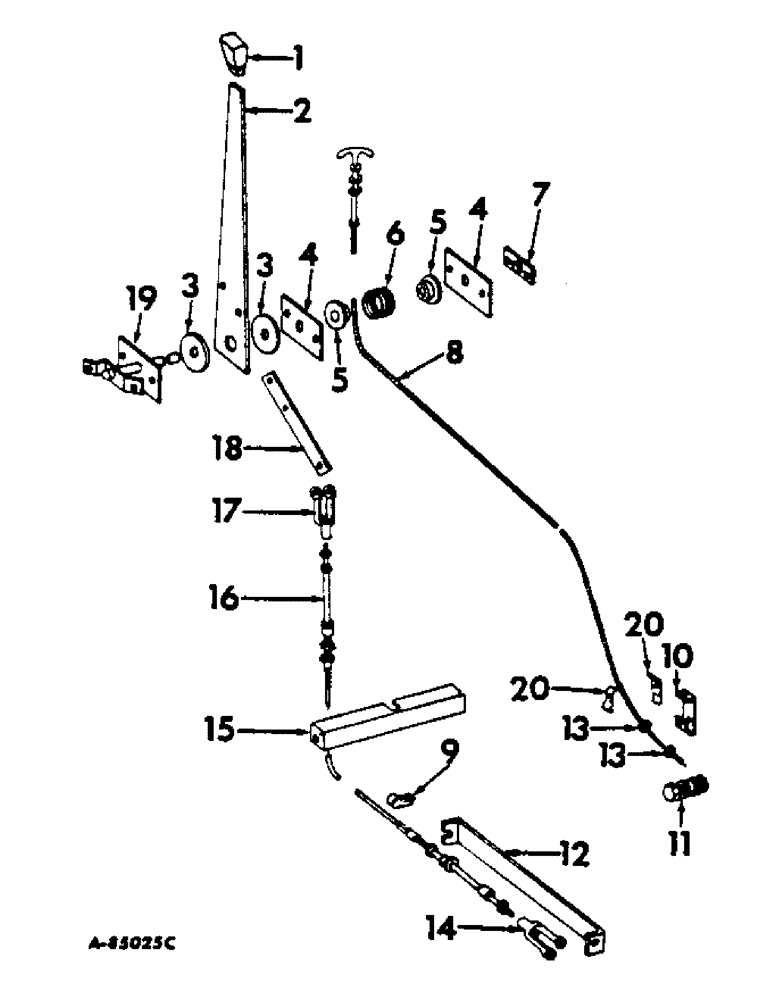

Запчасти Case IH 616 (H-04) - CONTROLS, ENGINE CONTROLS, DIESEL Controls

1

382805R1

KNOB

governor lever

1шт.

2

673090R1

LEVER, governor control

1шт.

3

58666D

FRICTION WASHER

governor control friction

2шт.

4

673094R1

governor control

2шт.

5

11840R

WASHER

governor control

2шт.

6

55770D

SPRING

governor control friction

1шт.

17546R1

BOLT, 1/4 x 2-1/4 hex-hd mach

2шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

7

674725R1

PLATE ASSY, control support, replaces 673096R1

1шт.

14989R1

BOLT, 1/4 x 5/8 sq-nk crg

2шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

8

673107R92

CABLE PULLING GRIP

ASSY, fuel shuf-off, if 673107R91 is required order 673107R92 and 3400505R1

1шт.

9

27386D

choke cable, 616 CH501M thru CH585N, 622 CH501M thru 1039N

1шт.

9

400505R1

CLAMP

CLIP, choke cable, 616 CH000586 and up, 622 CH001040 and up

1шт.

10

673108R1

throttle & fuel shut-off cable

1шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 znd hex-hd mach

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

11

396388R1

PIVOT

CONNECTOR ASSY, fuel shut-off cable, replaces 673109R91

1шт.

112726

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

113963

SCREW,Slotted Rd Hd, 1/4"-20 x 1 1/2"

8-32 x 3/8 znd fil-hd mach

1шт.

146179

TRANSMITTER

WASHER, 1/4 x 1/2 x .036 C-Z

1шт.

12

673103R2

throttle control

1шт.

17574R1

BOLT (SPREADER)

3/8 x 2-1/2 hex-hd mach

1шт.

13

673836R1

NUT

cable casing, for fuel shut-off cable, 616 CH501M thru CH585N, 622 CH501M thru CH1039N

1шт.

14

673428R1

YOKE

governor control

1шт.

103088

NUT,#10-32

10-32 hex. mach

1шт.

20687R1

CLEVIS PIN,1/4" x .609"

1/4 x 39/64 C-Z rod end

1шт.

137141

AXLE PIN

1/16 x 5/8 cot.

1шт.

15

673097R1

governor control cable mounting

1шт.

14993R1

1/4 x 3/4 sq-nk crg

2шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

16

673099R91

CABLE PULLING GRIP

ASSY, governor control

1шт.

17

213-113

ADJUSTABLE CLEVIS,#10-32

10-32 x 1-3/8 short adj rod end

1шт.

103088

NUT,#10-32

10-32 hex. mach screw

1шт.

103493

CLEVIS PIN,3/16" x .580"

3/16 x 19/32 rod end

1шт.

432-48

COTTER PIN,1/16" x 1/2"

1/16 x 1/2

1шт.

18

673091R2

ARM, governor control lever

1шт.

17410R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 hex-hd mach

2шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

19

673092R91

ASSY, governor control

1шт.

20

32596D

FASTENER

CLAMP, shutter control

2шт.

132133

10-32 x 1 znd slt-fil-hd mach Slotted Fil Hd, #10-32 x 1"

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.
