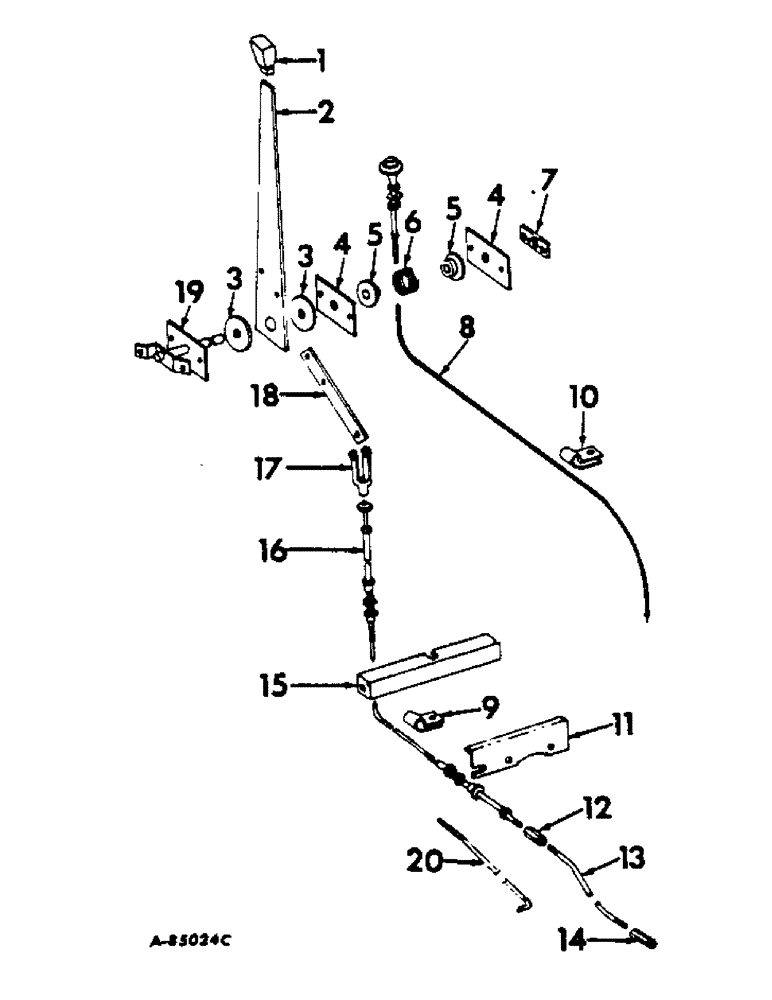

Запчасти Case IH 616 (H-03) - CONTROLS, ENGINE CONTROLS, GASOLINE AND LP GAS Controls

1

382805R1

KNOB

governor lever

1шт.

2

673090R1

LEVER, governor control

1шт.

3

58666D

FRICTION WASHER

governor control friction

2шт.

4

673094R1

governor control

2шт.

5

11840R

WASHER

governor control

2шт.

6

55770D

SPRING

governor control friction

1шт.

674465R1

1/4 x 3 hex-hd mach

2шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

7

674725R1

PLATE ASSY, control support, replaces 673096R1

1шт.

14989R1

BOLT, 1/4 x 5/8 sq-nk crg

2шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

8

673106R92

CABLE

ASSY, chode control

1шт.

9

27386D

governor control cable, 616 CH501M thru CH585N, 622 501M thru CH1039N

1шт.

9

400505R1

CLAMP

CLIP, governor control cable, 616 CH000586 and up, 622 CH0001040 and up

1шт.

10

140580

NO LONGER SERVICED

CLIP, no. 6 3/8 x 3/8 closed

1шт.

11

202408C1

governor cable mounting, replaces 673100R91

1шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1/2-13 x 2-1/2 hex-hd cap

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

22245R1

WASHER, 17/32 x 1 x 17 ga C-Z

1шт.

12

673374R1

governor control small

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

13

673105R1

throttle, 616 CH501M thru CH585N, 622 CH501M thru CH1039N

1шт.

14

369474R1

TURNBUCKLE

governor control, large, 616 CH501M thru CH585N, 622 CH501M thru CH1039N

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1шт.

15

673097R1

governor control cable mounting

1шт.

14993R1

1/4 x 3/4 sq-nk crg

2шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

16

673098R91

CABLE

ASSY, governor control

1шт.

17

116533

COVER

10-32 x 1-3/8 short adj rod end

1шт.

103088

NUT,#10-32

10-32 hex. mach screw

1шт.

103493

CLEVIS PIN,3/16" x .580"

3/16 x 19/32 rod end

1шт.

NLS

NO LONGER SERVICED

1/16 x 1/2

1шт.

18

673091R2

ARM, governor control lever

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

19

673092R91

ASSY, governor control

1шт.

20

201515C1

throttle control, 616 CH000586 and up, 622 CH001040 and up

1шт.

121223

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

1шт.
