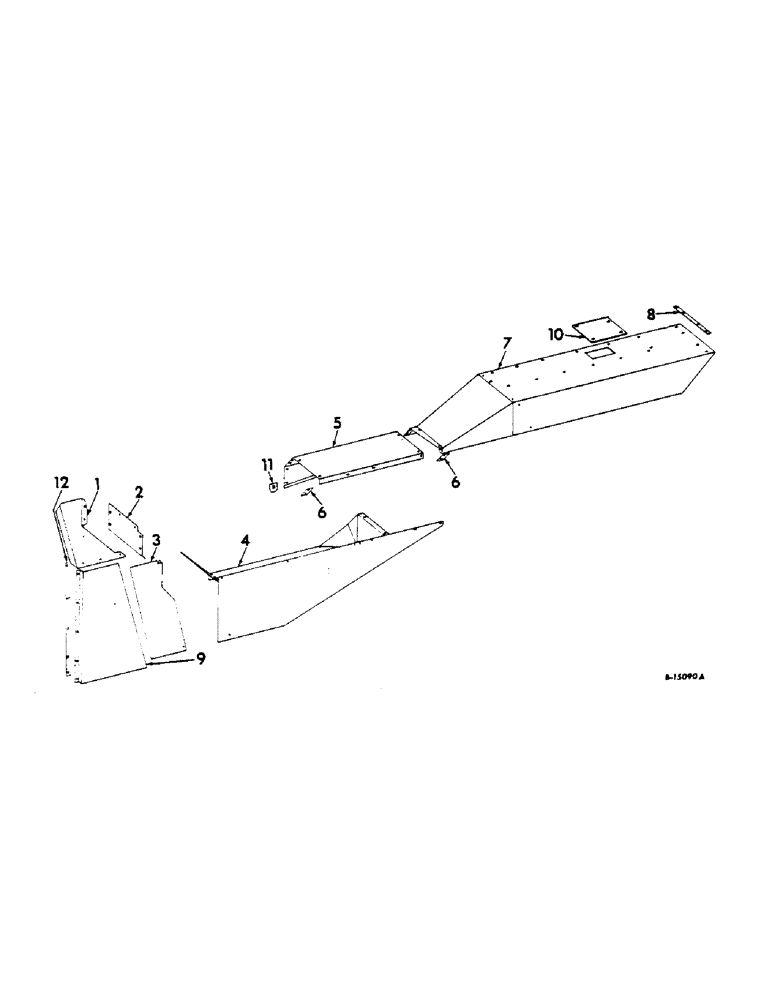

Запчасти Case IH 616 (A-03) - CHASSIS, RADIATOR AND SHEET METAL, PLANT GUIDES Chassis, Radiator & Sheet Metal

1

673126R1

inner plant guide throat LH, 616 CH001470 and up, 622 CH004007 and up

1шт.

1

673127R1

inner plant guide throat RH, 616 CH001470 and up, 622 CH004007 and up

1шт.

1

674766R1

sheet inner plant guide throat LH, 616 CH001469 and below, 622 CH004006 and below, hydrostatic drive

1шт.

1

674767R1

sheet inner plant guide throat RH, 616 CH001469 and below, 622 CH004006 and below, hydrostatic drive

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

6шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

615022R1

11/32 x 3/4 x 16 ga sq hole

6шт.

2

673123R1

plant guide center throat LH, 616 CH001470 and up, 622 CH004007 and up

1шт.

2

673124R1

plant guide center throat RH, 616 CH001470 and up, 622 CH004007 and up

1шт.

2

674764R1

sheet plant guide center throat LH, 616 CH001469 and below, 622 CH004006 and below, hydrostatic drive

1шт.

2

674765R1

sheet plant guide center throat RH, 616 CH001469 and below, 622 CH004006 and below, hydrostatic drive

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

3

673129R2

outer plant guide throat LH

1шт.

3

673130R2

outer plant guide throat RH

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

6шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

615022R1

11/32 x 3/4 x 16 ga. sq hole

6шт.

4

673131R91

ASSY, plant front LH

1шт.

4

673139R91

ASSY, plant front RH

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

6шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

615022R1

11/32 x 3/4 x 16 ga sq hole

6шт.

5

673136R1

plant guide center LH

1шт.

5

673137R1

plant guide center RH

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

16шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

16шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

16шт.

615022R1

11/32 x 3/4 x 16 ga sq hole

12шт.

6

673138R1

plant guide front

4шт.

7

201599C91

guide ASSY, rear plant RH, replaces 673143R92

1шт.

7

201598C91

guide ASSY, rear plant LH, replaces 673142R92

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

bolt 5/16 x 3/4 sq-hk crg

12шт.

19286R1

BOLT, 5/16 x 3/4 znd hex-hd mach

6шт.

120376

NUT,5/16"-18, G5

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

18шт.

23050R1

SQ HOLE WASHER,.344" x 3/4" x .060", Sq. Hole

11/32 x 3/4 x 16 ga sq-hole

6шт.

134238

WASHER

11/32 x 1 x 16 ga

2шт.

8

204740C1

BAR, plant guide rear

1шт.

8

673148R1

plant guide rear

1шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

23050R1

SQ HOLE WASHER,.344" x 3/4" x .060", Sq. Hole

11/32 x 3/4 x 16 ga C-Z sq hole

4шт.

9

672331R1

EXTENSION, plant tunnel LH, unit A

1шт.

9

672333R1

EXTENSION, plant tunnel LH, unit C

1шт.

9

672332R1

EXTENSION, plant tunnel RH, unit B

1шт.

9

672334R1

EXTENSION, plant tunnel RH, unit D

1шт.

14987R1

BOLT, 3/8 x 1/2 sq-nk crg, 8 units A and B, 10 units C and D

1шт.

102635

NUT,3/8"-16, G5

8 units A and B, 10 units C and D 3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Med 8 units A and B, 10 units C and D 3/8"

1шт.

10

201600C1

COVER, plant guide sheet

2шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 znd hex-hd mach

8шт.

120376

NUT,5/16"-18, G5

8шт.

11

483360R91

NUT

5/16-18 cage

6шт.

12

202219C1

EXTENSION

stiffiner, plant tunnel extension, unit C and D

2шт.
