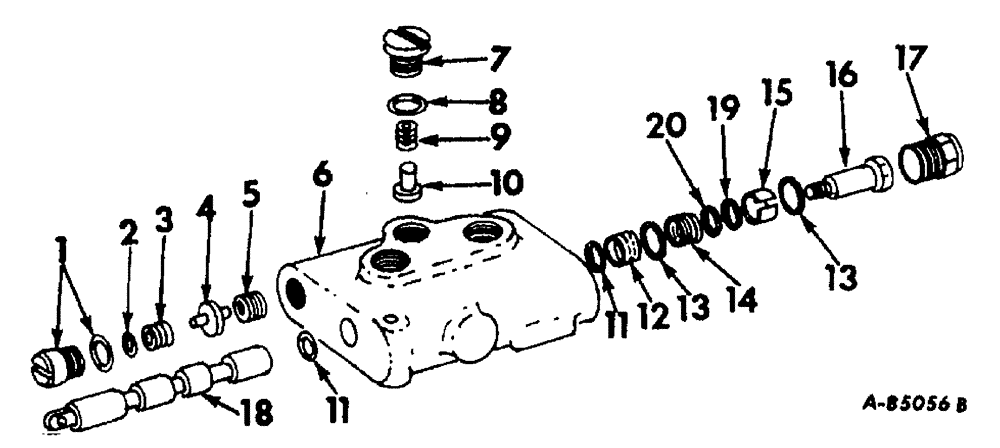

Запчасти Case IH 616 (Q-17) - BASKET AND AIR SYSTEM, BASKET DISTRIBUTOR HYDRAULIC CONTROL Basket & Air System

673806R92

VALVE ASSY, distributor control composed of the following parts

1шт.

18659R1

BOLT,Hex, 1/4" - 20 x 2", Gr 2

1/4 x 2 znd hex-hd mach

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

1

202210C91

PLUG

ASSY, relief valve, replaces 674497R91

1шт.

2

394655R1

WASHER

relief valve .010 (or as required)

2шт.

2

674504R1

WASHER

relief valve .015 (or as required)

2шт.

2

673647R1

WASHER

relief valve .035 (or as required)

2шт.

3

632843R1

SPRING

relief valve

1шт.

4

674501R1

VALVE POPPET

POPPET, relief valve

1шт.

5

NOT SERVICED SEPARATELY, order 673806R92

1шт.

6

NOT SERVICED SEPARATELY, order 673806R92

1шт.

7

201844C91

PLUG

W/O-RING, lift check

1шт.

8

NOT SERVICED SEPARATELY, order 674503R91

1шт.

9

673625R1

SPRING

lift check

1шт.

10

673622R1

PLUNGER

lift check

1шт.

11

NOT SERVICED SEPARATELY, order 674503R91

1шт.

12

674775R1

BUSHING

replaces 674494R1

1шт.

13

673628R1

WASHER

replaces 674495R1

1шт.

14

674490R1

SPRING

spool center

1шт.

15

674492R1

SPACER

spool

1шт.

16

674491R1

SCREW

spool

1шт.

17

674493R91

CAP

ASSY

1шт.

18

NOT SERVICED SEPARATELY, order 673806R92

1шт.

19

824545C1

WASHER

1шт.

20

202649C1

SPRING WASHER

1шт.

674503R91

SEAL KIT

KIT, major seal repair, replaces 673629R91

1шт.
