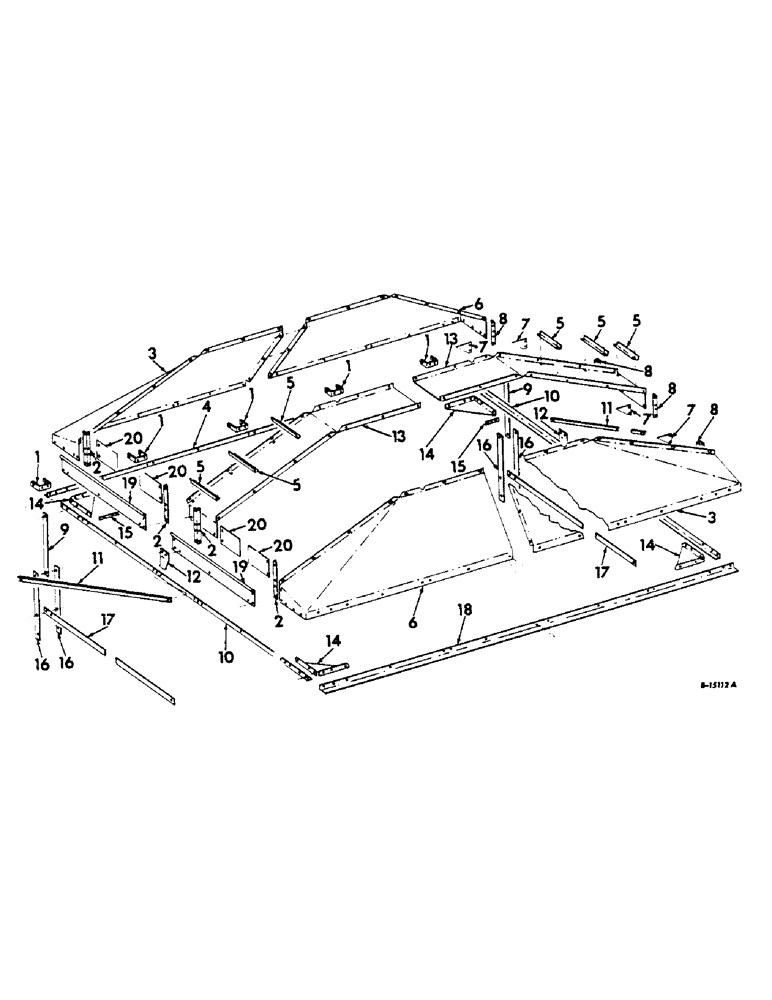

Запчасти Case IH 616 (Q-09) - BASKET AND AIR SYSTEM, BASKET COVER Basket & Air System

1

672764R1

HINGE

basket cover

5шт.

17446R1

BOLT,3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 hex-hd mach

10шт.

102635

NUT,3/8"-16, G5

10шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

10шт.

590275R1

HEADED PIN,7/16" x 4 3/4"

PIN, 7/16 x 4-3/4 std-hd

5шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

5шт.

2

672750R1

ANGLE, basket cover grate support front

4шт.

3

672758R1

SHEET, basket cover RH front & LH rear

2шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

31шт.

102635

NUT,3/8"-16, G5

31шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

31шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

14шт.

4

672747R1

ANGLE, basket cover side RH

1шт.

5

672756R1

ANGLE, basket cover platform safety

6шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

12шт.

102635

NUT,3/8"-16, G5

12шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

6

672757R1

SHEET, basket cover LH front & RH rear

2шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

25шт.

102635

NUT,3/8"-16, G5

25шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

25шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

14шт.

7

672766R1

FILLER, basket cover rear grate

4шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 znd hex-hd mach

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

8

672751R1

ANGLE, basket cover grate support rear

4шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

9

672760R1

LEVER, basket cover

2шт.

21526D

BOLT, 3/8 x 1-1/2 hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

575807R1

WASHER

13/32 x 1 x 11 ga

2шт.

10

672748R1

ANGLE, basket cover ends

2шт.

11

672761R1

ANGLE, basket cover lever

2шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

2шт.

21526D

BOLT, 3/8 x 1-1/2 hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

10шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

10шт.

12

10821RA

GUIDE, basket cover centering

2шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

13

672755R1

PLATFORM, basket cover

2шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

28шт.

102635

NUT,3/8"-16, G5

28шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

28шт.

14

672749R1

BRACE

basket cover corner

4шт.

15

673764R1

BAR, basket hinge support

2шт.

16

672762R1

STRAP, basket cover lever short

4шт.

Q3574

PIN, 1/2 x 1 std-hd

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

17

672763R1

STRAP, basket cover long

2шт.

Q3547

HEADED PIN,1/2" x 1"

PIN, 1/2 x 1 std-hd

4шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

4шт.

18

672746R1

ANGLE, basket cover sied LH

1шт.

19

672765R1

SHEET, basket cover filler

2шт.

18765R1

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 2

3/8 x 3/4 znd hex-hd mach

5шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

20

674778R1

FILLER, basket cover front

4шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 zn-pltd hex-hd mach

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.
