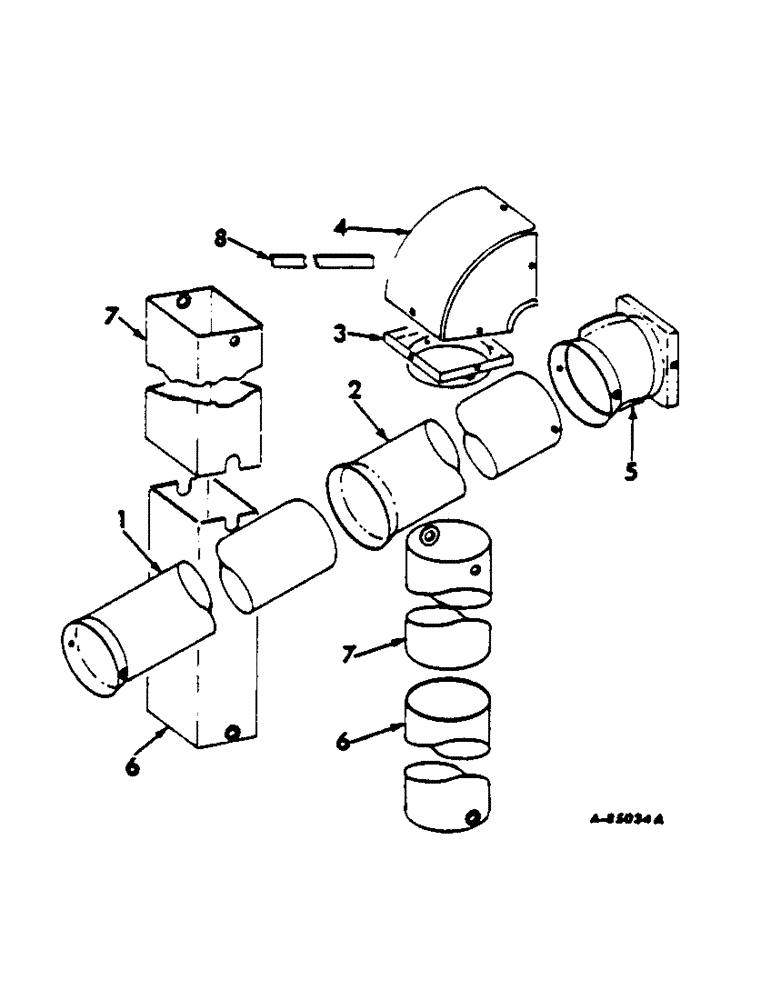

Запчасти Case IH 616 (Q-02) - BASKET AND AIR SYSTEM, CONVEYOR PIPES Basket & Air System
№
Артикул
Название
Примечание
Количество
1
667441R92
EXTENSION
ASSY, conveyor lower
2шт.
2
666806R21
SPARE PART
PIPE ASSY, upper outer conveyor
2шт.
M909
HEADED PIN,3/8" x 3/4"
3/8 x 3/4 std-hd
4шт.
Q1597
WASHER
13/32 x 3/4 x 16 ga
4шт.
103384
COTTER PIN,1/8" x 3/4"
Pin, Split (Cotter), 1/8" x 3/4"
4шт.
3
672645R91
BRACKET ASSY, fan elbow, 616 501M thru 519M, 622 501M thru 604M
2шт.
14994R1
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2
BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2
8шт.
9635082
NUT,5/16" - 18, Gr 5
5/16-18 hex.
8шт.
4
672650R91
ELBOW ASSY, inner fan, 616 501M thru 519M, 622 501M thru 604M
2шт.
4
674788R1
ELBOW ASSY, inner fan, 626 520N up, 622 605N up
2шт.
14994R1
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2
BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2
16шт.
9635082
NUT,5/16" - 18, Gr 5
5/16-18 hex.
16шт.
5
672643R91
ELBOW ASSY, conveyor pipe front upper
2шт.
14994R1
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2
BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2
8шт.
9635082
NUT,5/16" - 18, Gr 5
5/16-18 hex.
8шт.
6
672647R11
PIPE ASSY, rear lower conveyor, 622 only, 501M thru 604M
2шт.
6
672649R11
PIPE ASSY, rear lower conveyor, 616 only, 501M thru 519M
2шт.
6
674792R11
PIPE ASSY, rear lower conveyor, 616 520N up, 622 605N up
2шт.
21888R1
HEADED PIN,3/8" x 3/4", G2
PIN, 3/8 x 3/4 C-Z std-hd
4шт.
469668R1
WASHER
13/32 x 3/4 x 16 ga C-Z
4шт.
648002
KNIFE
1/8" x 3/4"
4шт.
7
672646R11
PIPE ASSY, rear upper conveyor, 622 only, 501M thru 604M
2шт.
7
672648R11
PIPE ASSY, rear upper conveyor, 616 only, 501M thru 519M
2шт.
7
674791R11
PIPE ASSY, rear upper conveyor, 616 520N up, 622 605N up
2шт.
21888R1
HEADED PIN,3/8" x 3/4", G2
PIN, 3/8 x 3/4 C-Z std-hd
4шт.
469668R1
WASHER
13/32 x 3/4 x 16 ga C-Z
4шт.
648002
KNIFE
1/8" x 3/4"
4шт.
8
674793R1
STRIP, conveyor pipe sealer, 616 520N up, 622 605N up
4шт.
Выбрано товаров: 31
