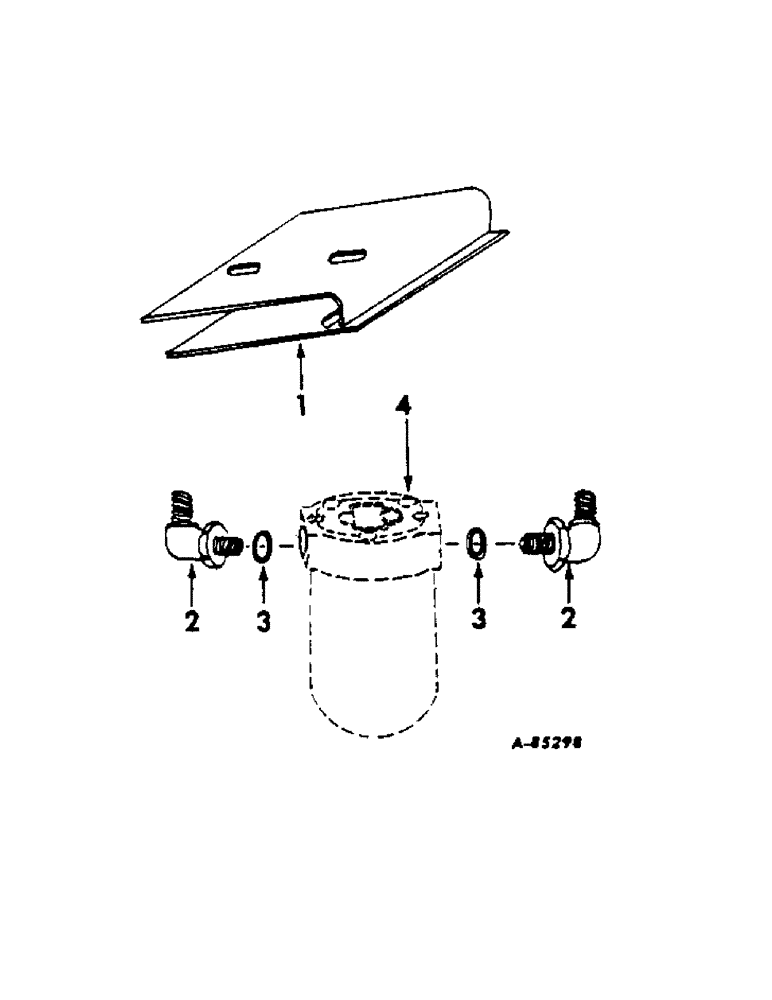

Запчасти Case IH 616 (F-25) - HYDRAULICS SYSTEM, OIL FILTER SUPPORT ADAPTER, 616 001595 (07) - HYDRAULIC SYSTEM

204687C91

SUPPORT SERVICE PACKAGE, required when 123008C91 spin-on oil filter is furnished on machines equipped with 156571C91 oil filter, consists of Ref. no. 1, 2, and 3

1шт.

1

204686C1

BRACKET ASSY, adapter

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

2

150776C91

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

1-1/16-12 37 deg hyd flared tube adj str thd 90 deg reducer

2шт.

3

343378R1

O-RING, 1-3/16 ID size 217 class 6

2шт.

4

FILTER ASSY, spin-on oil, see section F hydrostatic drive system

1шт.
