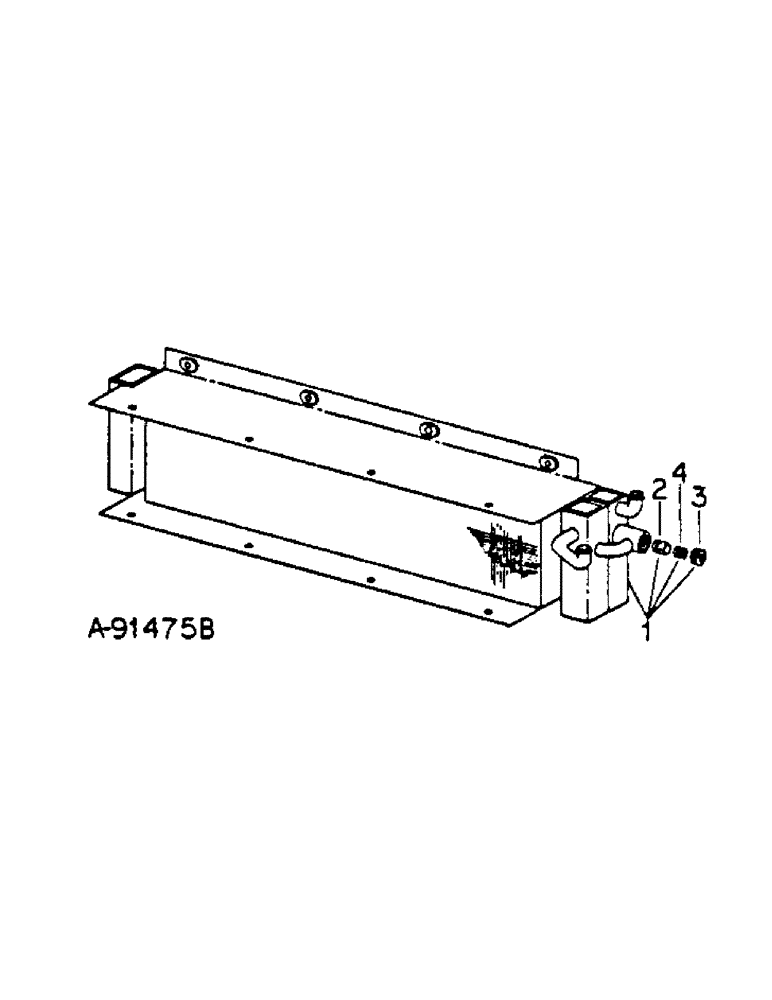

Запчасти Case IH 616 (F-25[1]) - HYDRAULIC OIL COOLER, COTTON PICKERS WITH HYDROSTATIC DRIVE (07) - HYDRAULIC SYSTEM

1

64751C91

COOLER

PACKAGE, oil cooler, replaces 400733R3 & 61196C91

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16-18 x 5/8 C-Z hex-hd cap

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .051 C-Z

4шт.

2

529816R1

oil cooler, note A

1шт.

298385R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

11/16 x 13/16 x 1/16

1шт.

2

61221C1

VALVE

CARTRIDGE, check valve, note B

1шт.

3

546729R1

drain, note A

1шт.

3

61223C1

PLUG

pipe, note B

1шт.

4

130041H1

retaining, note A

1шт.

4

61222C1

SPRING

note B

1шт.
